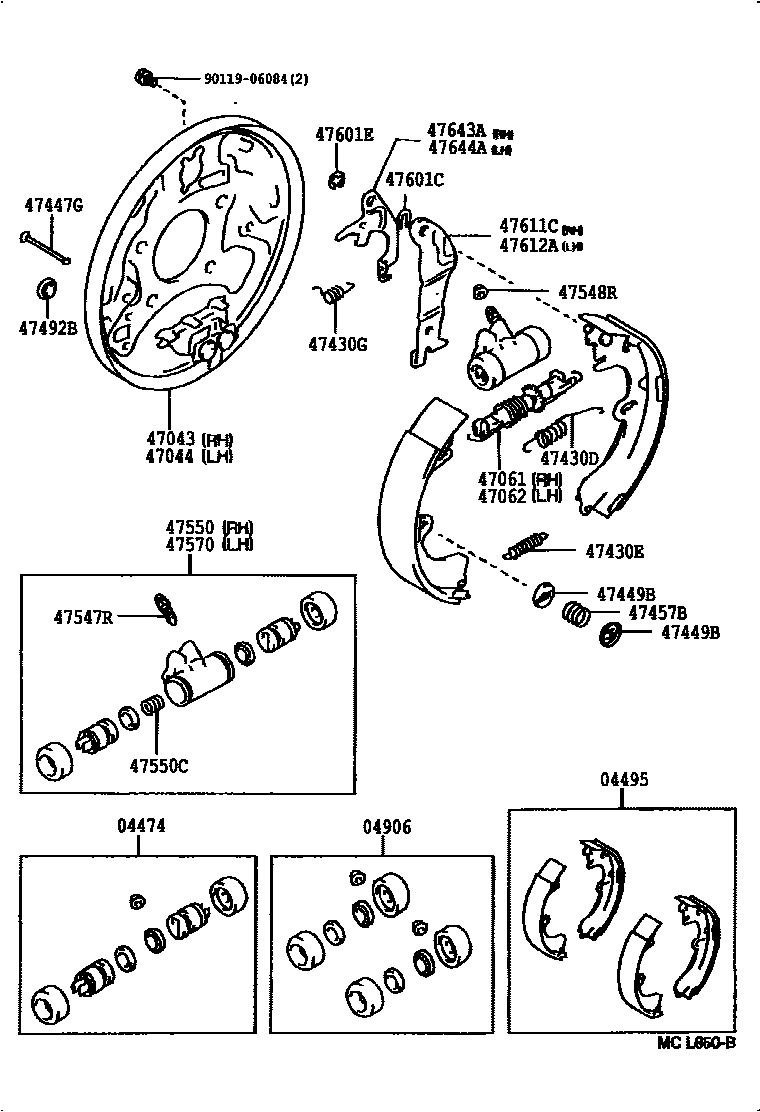

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-33010iSXV10..JPP..LHD..GL¥1,980199106-199608

main04474-33010iSXV10..JPP..RHD..ATM¥1,980199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

04495SHOE KIT, REAR BRAKE

main04495-33010iSXV10..JPP..RHD..ATM¥7,700199309-199608

MARK AK LA509A,HONG KONG SPEC OR SINGAPORE SPEC OR LATIN AMERICA SPEC

main04495-33010iSXV10..JPP..LHD..GL¥7,700199309-199608

MARK AK LA509A,LATIN AMERICA SPEC

main04495-33010iSXV10..JPP..RHD..ATM¥7,700199106-199207

MARK AK LA509A,HONG KONG SPEC

main04495-33010iSXV10..JPP..RHD..ATM¥7,700199207-199309

MARK AK LA509A,HONG KONG SPEC OR SINGAPORE SPEC

main04495-33020iSXV10..JPP¥7,700199106-199308

04906CUP KIT, REAR WHEEL CYLINDER

main04906-33010iSXV10..JPP..LHD..GL¥1,110199309-199608

LATIN AMERICA SPEC

sub04906-28040¥870

main04906-33010iSXV10..JPP¥1,110199106-199308

sub04906-28040¥870

main04906-33010iSXV10..JPP..RHD..ATM¥1,110199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

sub04906-28040¥870

main04906-33010iSXV10..JPP..LHD..GL¥1,110199309-199608

HONG KONG SPEC OR SINGAPORE SPEC OR LATIN AMERICA SPEC

sub04906-28040¥870

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-32020iSXV10..JPP¥5,400199106-199608

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-32020iSXV10..JPP¥5,400199106-199608

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-33010iSXV10..JPP..LHD..GL¥2,170199106-199608

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-33010iSXV10..JPP..LHD..GL¥2,170199106-199608

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29008iSXV10..JPP..RHD..ATM¥550199309-199608

LATIN AMERICA SPEC,RH

main90506-29008iSXV10..JPP..RHD..ATM¥550199309-199608

HONG KONG SPEC OR SINGAPORE SPEC OR LATIN AMERICA SPEC,RH

main90506-29008iSXV10..JPP¥550199106-199308

RH

main90506-29008iSXV10..JPP..RHD..ATM¥550199308-199309

HONG KONG SPEC OR LATIN AMERICA SPEC,RH

main90506-29009iSXV10..JPP..LHD..GL¥550199309-199608

LATIN AMERICA SPEC,LH

main90506-29009iSXV10..JPP¥550199106-199308

LH

main90506-29009iSXV10..JPP..RHD..ATM¥550199308-199309

HONG KONG SPEC OR LATIN AMERICA SPEC,LH

main90506-29009iSXV10..JPP..LHD..GL¥550199309-199608

HONG KONG SPEC OR SINGAPORE SPEC OR LATIN AMERICA SPEC,LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iSXV10..JPP¥230199106-199608

main90506-23346iSXV10..JPP..RHD..ATM¥230199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iSXV10..JPP¥190199106-199608

main90506-12011iSXV10..JPP..RHD..ATM¥190199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iSXV10..JPP¥120199106-199608

main47447-20030iSXV10..JPP..RHD..ATM¥120199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iSXV10..JPP..RHD..ATM¥120199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

main47449-30020iSXV10..JPP¥120199106-199608

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iSXV10..JPP¥190199106-199608

main90501-18017iSXV10..JPP..RHD..ATM¥190199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iSXV10..JPP¥130199106-199608

main47492-28010iSXV10..JPP..RHD..ATM¥130199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-22020iSXV10..JPP¥180199106-199608

main47547-22020iSXV10..JPP..RHD..ATM¥180199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iSXV10..JPP¥160199106-199608

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-33010iSXV10..JPP¥5,800199106-199608

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079iSXV10..JPP¥90199106-199608

main90501-09079iSXV10..JPP..RHD..ATM¥90199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-33010iSXV10..JPP¥5,800199106-199608

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iSXV10..JPP¥110199106-199608

T=1.2

main90213-06013iSXV10..JPP..RHD..ATM¥110199308-199309

T=1.2,HONG KONG SPEC OR SINGAPORE SPEC

47601ERING, E(FOR REAR BRAKE)

main96160-00500iSXV10..JPP..RHD..ATM¥100199106-199608

main96160-00500iSXV10..JPP..RHD..ATM¥100199308-199309

HONG KONG SPEC OR SINGAPORE SPEC

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-33010iSXV10..JPP¥1,040199106-199608

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-33010iSXV10..JPP¥1,040199106-199608

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-33010iSXV10..JPP¥360199106-199608

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-33010iSXV10..JPP¥360199106-199608

9011906084

main90119-06084¥100

26 parts on this diagram · 1 diagram in section
