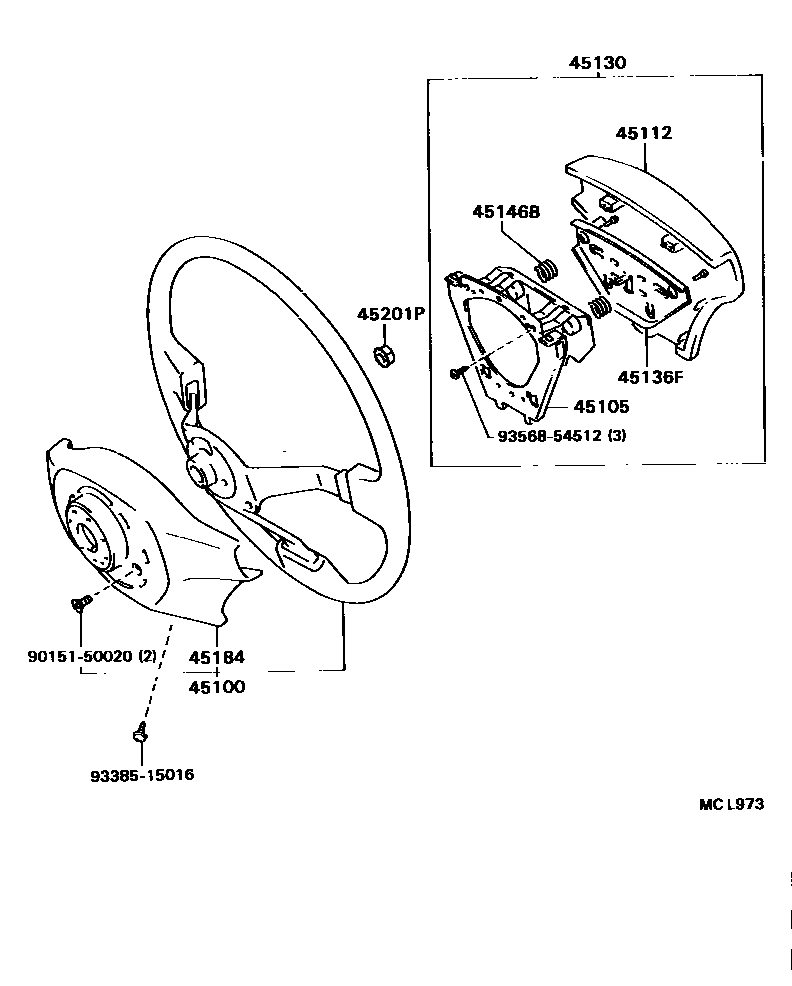

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,LEATHER PACKAGE & W(*80 & *CRC);W(*80 & *CRC),BLACK,TRIM1#,4#,9#
sub45100-33071
4-SPOKE,W(*80 & *CRC),BLACK,TRIM1#,4#,9#
sub45100-33071
4-SPOKE,W(*80 & *CRC),BLACK,TRIM1#,8#,9#
sub45100-33071
4-SPOKE,LEATHER PACKAGE & W(*80 & *CRC);W(*80 & *CRC),BLACK,TRIM1#,8#,9#
sub45100-33071
4-SPOKE,W(*80 & *CRC),BLACK,TRIM1#,4#,9#
sub45100-33071
4-SPOKE,LEATHER PACKAGE & W(*80 & *CRC);W(*80 & *CRC),BLACK,TRIM1#,4#,9#
sub45100-33071
4-SPOKE,LEATHER,W(*80),BLACK,TRIM1#,4#,9#
4-SPOKE,LEATHER,W(*80 & *CRC),BLACK,TRIM1#,4#,9#
sub45100-33140
4-SPOKE,LEATHER,W(*80 & *CRC)
4-SPOKE,LEATHER,W(*80)
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45112PAD, STEERING WHEEL
BLACK,TRIM1#,4#,9#
45130BUTTON ASSY, HORN
W(*CRC & *80),BLACK,TRIM1#,4#,9#
sub45130-2B321
LEATHER PACKAGE & W(*80),BLACK,TRIM1#,4#,9#
sub45130-2B321
W(MECHANICAL TYPE *80),BLACK,TRIM1#,4#,9#
sub45130-33052
BLACK,TRIM1#,4#,9#
45136FPLATE, HORN BUTTON CONTACT, NO.1
45146SPRING, HORN BUTTON CONTACT
LEAHTER PACKAGE & W(*80)
W(*80)
45146BSPRING, HORN BUTTON CONTACT, NO.1
45184COVER, STEERING WHEEL BOSS, LOWER
45201PNUT, STEERING WHEEL SET
9015150020
main90151-50020
9338515016
main93385-15016
9356854512
main93568-54512
12 parts on this diagram · 3 diagrams in section
