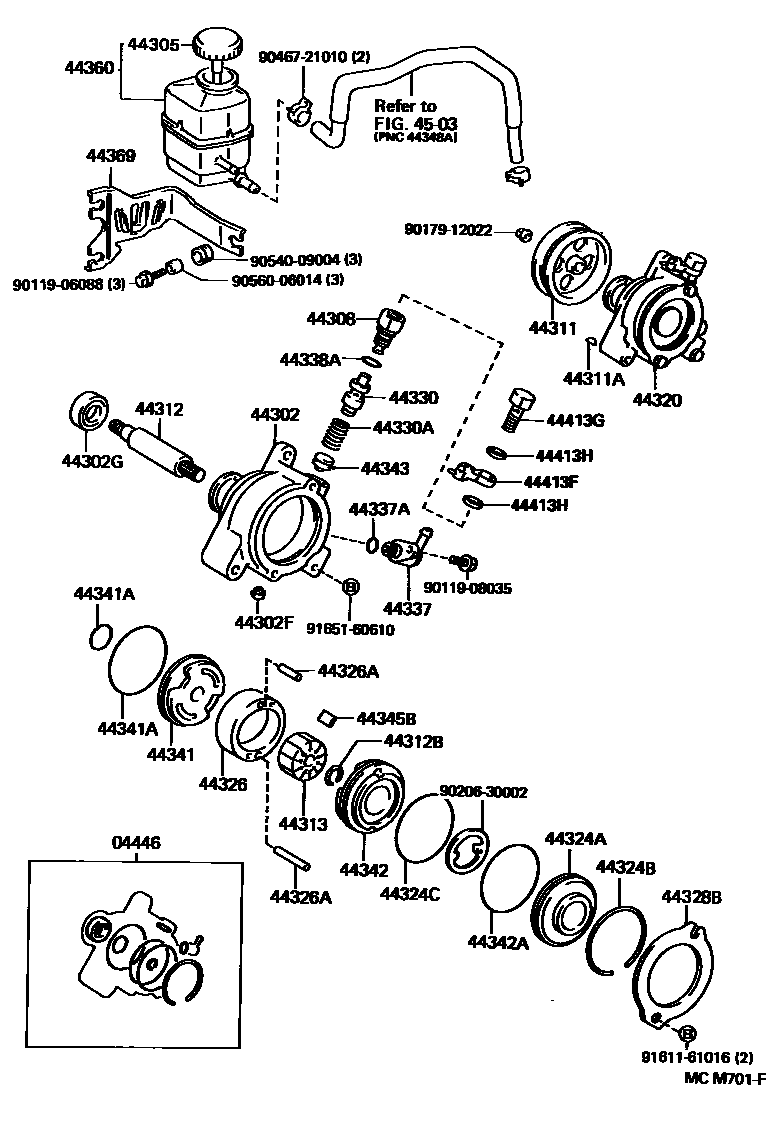

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302FSEAT, UNION(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308UNION SUB-ASSY, PRESSURE PORT
RR
FR
44311PULLEY, VANE PUMP
44311AKEY, VANE PUMP PULLEY
44312SHAFT, VANE PUMP
OD=17.999-18.004
OD=17.994-17.999
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
44320PUMP ASSY, VANE
44324AHOUSING, PUMP, REAR
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44324CRING, O(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK,RR
NO MARK
MARK 1
MARK 1,RR
MARK 2,RR
MARK 2
MARK 3
MARK 3,RR
MARK 4,RR
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
MARK 2,FR
MARK 2
MARK 3
MARK 3,FR
MARK 4,FR
MARK 4
MARK 5
MARK 5,FR
MARK 6,FR
MARK 6
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=28,OD=4.0
L=43,OD=4.0
L=23.3,OD=4.0
L=59.5,OD=4
44328BEND, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A,FR
MARK A
MARK B
MARK B,FR
MARK C,FR
MARK C
MARK D
MARK D,FR
MARK E
MARK E,FR
MARK F,FR
MARK F
MARK A,RR
MARK A
MARK B,RR
MARK B
MARK C
MARK C,RR
MARK D
MARK D,RR
MARK E,RR
MARK E
MARK F
MARK F,RR
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
FR
RR
44337ARING, O(FOR POWER STEERING SUCTION PORT)
RR
44338ARING, O(FOR PRESSURE PORT UNION)
44341PLATE, VANE PUMP SIDE, FRONT
44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)
INNER
OUTER
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
INNER
OUTER
44343SEAT, FLOW CONTROL SPRING
44345BPLATE, VANE PUMP
L=14.997
L=14.997,RR
L=14.995
L=14.995,RR
L=14.993
L=14.993,RR
L=14.991
L=14.991,RR
L=14.989
L=14.989,RR
L=15.000
L=15.000,FR
L=14.998,FR
L=14.998
L=14.996
L=14.996,FR
L=14.994
L=14.992
ROTOR MARK 6
ROTOR MARK 7
L=15.000
L=14.998
L=14.996
44360RESERVOIR ASSY, VANE PUMP OIL
44369BRACKET, OIL RESERVOIR, NO.1
44413FTUBE, PRESSURE FEED, NO.2
44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)
44413HGASKET(FOR PRESSURE FEED TUBE NO.2)
4503
9011906088
9011908035
9017912022
9020630002
9046721010
9054009004
9056006014
9161161016
9165160610
44 parts on this diagram · 3 diagrams in section
