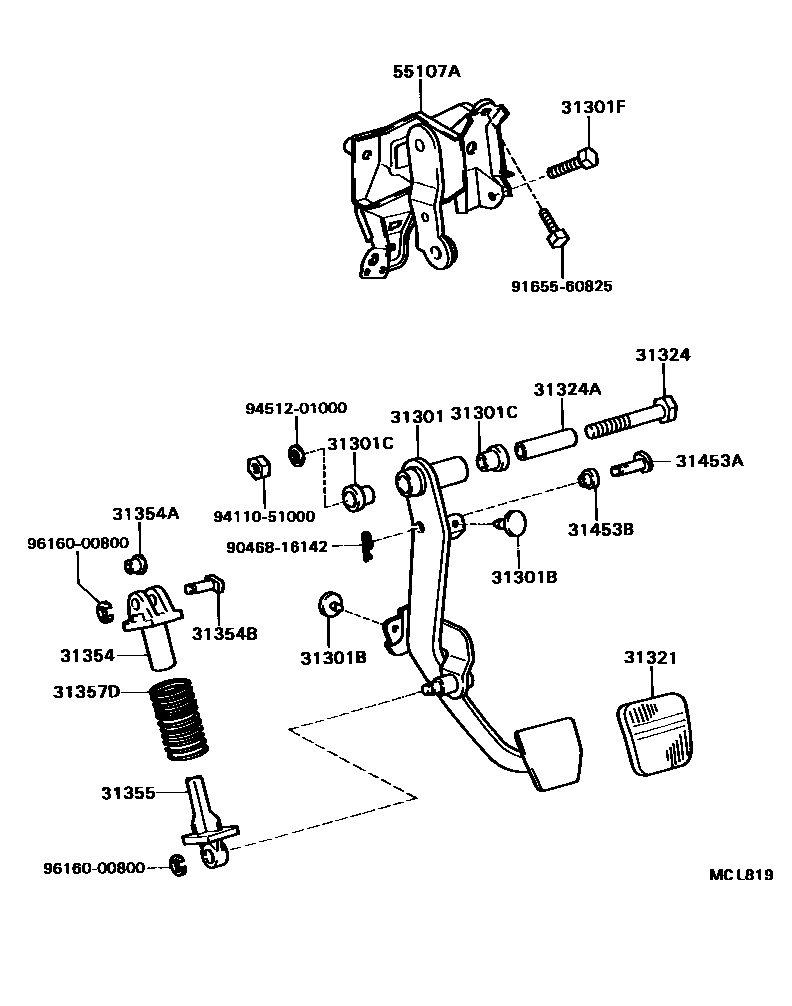

CLUTCH PEDAL & FLEXIBLE HOSE
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31354SEAT, CLUTCH PEDAL SPRING, UPPER
31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31355SEAT, CLUTCH PEDAL SPRING, LOWER
31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=30
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
9046816142
main90468-16142
9165560825
main91655-60825
9411051000
main94110-51000
9451201000
main94512-01000
9616000800
main96160-00800
20 parts on this diagram · 5 diagrams in section
