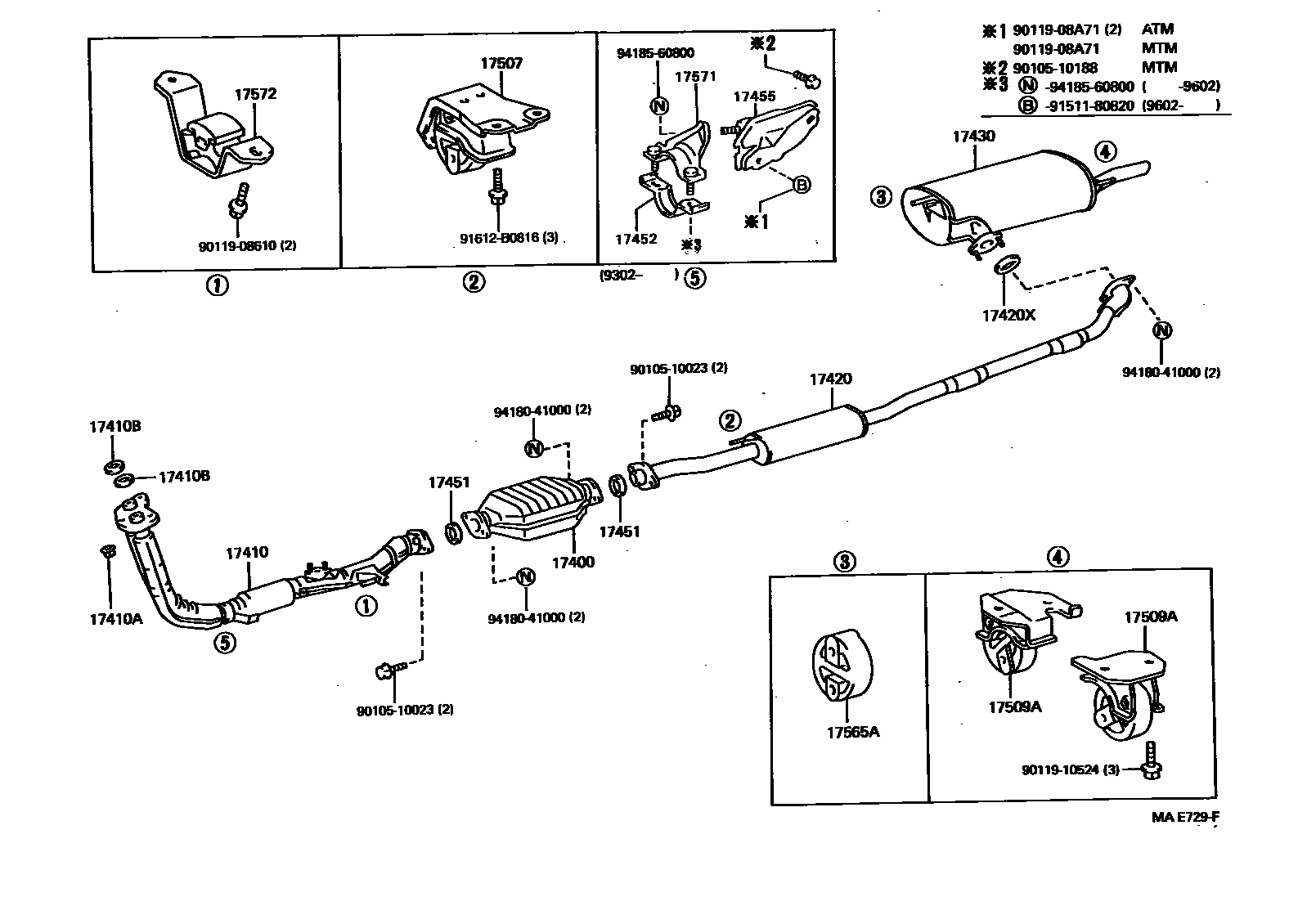

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
*115=TOYOTA/-00/N
17410PIPE ASSY, EXHAUST, FRONT
sub17410-62061
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17451GASKET, EXHAUST PIPE
FRONT
REAR
17452CLAMP, EXHAUST PIPE
17455BRACKET, EXHAUST PIPE
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
RH
LH
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
9010510023
main90105-10023
9010510188
main90105-10188
9011908610
main90119-08610
9011908A71
main90119-08A71
9011910524
main90119-10524
9151180820
main91511-80820
91612B0816
main91612-B0816
9418041000
main94180-41000
9418560800
main94185-60800
24 parts on this diagram · 2 diagrams in section
