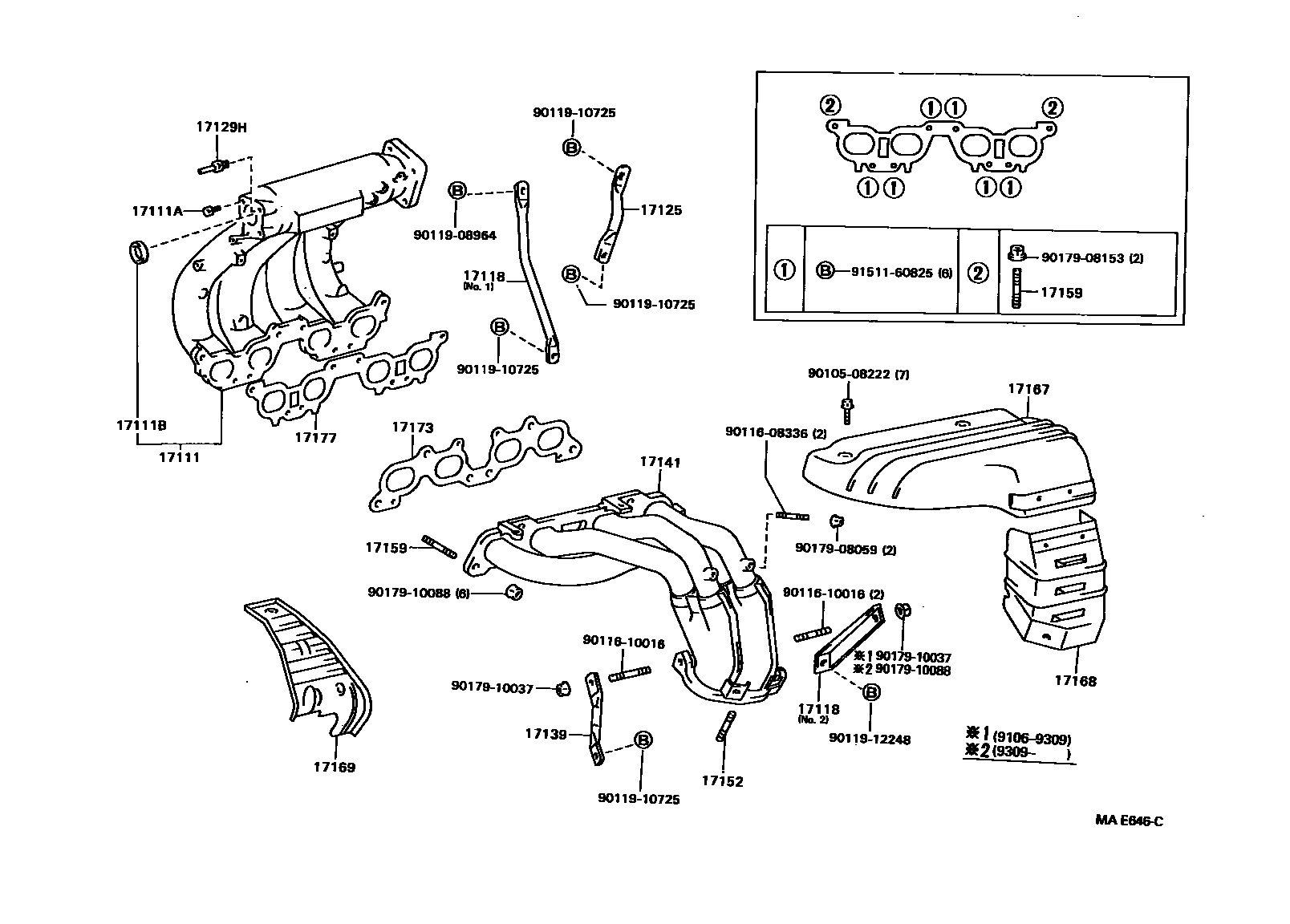

MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
17118STAY, MANIFOLD
NO.1
NO.2
17125STAY, SURGE TANK, NO.1
17129TANK, INTAKE AIR SURGE
17129HUNION, NO.4
17139STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
EXHAUST SIDE
EXHAUST SIDE
INTAKE SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9010508222
9011608336
9011610016
9011908964
9011910725
9011912248
9017908059
9017908153
9017910037
9017910088
9151160825
27 parts on this diagram · 2 diagrams in section
