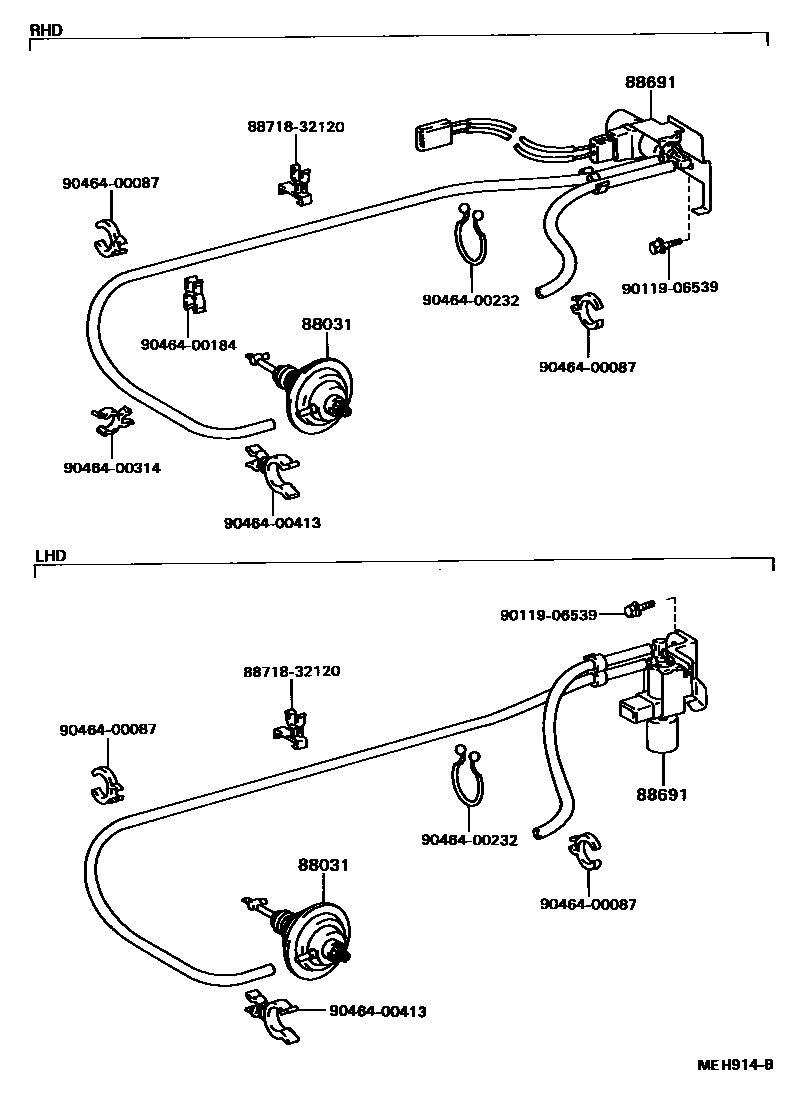

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-12150iCV20198808-199106

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-32240iSV21..SED..RHD..4FC198808-199106

main88690-32250iCV20..RHD198808-199106

main88690-32280iSV2#..LHD198808-199106

main88690-32290iCV20..LHD198808-199106

main88690-32310iSV21..SED..RHD..4FC198808-199106

HONG KONG SPEC

8871832120PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32120

9011906539

main90119-06539

9046400087

main90464-00087

9046400184

main90464-00184

9046400232

main90464-00232

9046400314

main90464-00314

9046400413

main90464-00413

9 parts on this diagram · 2 diagrams in section
