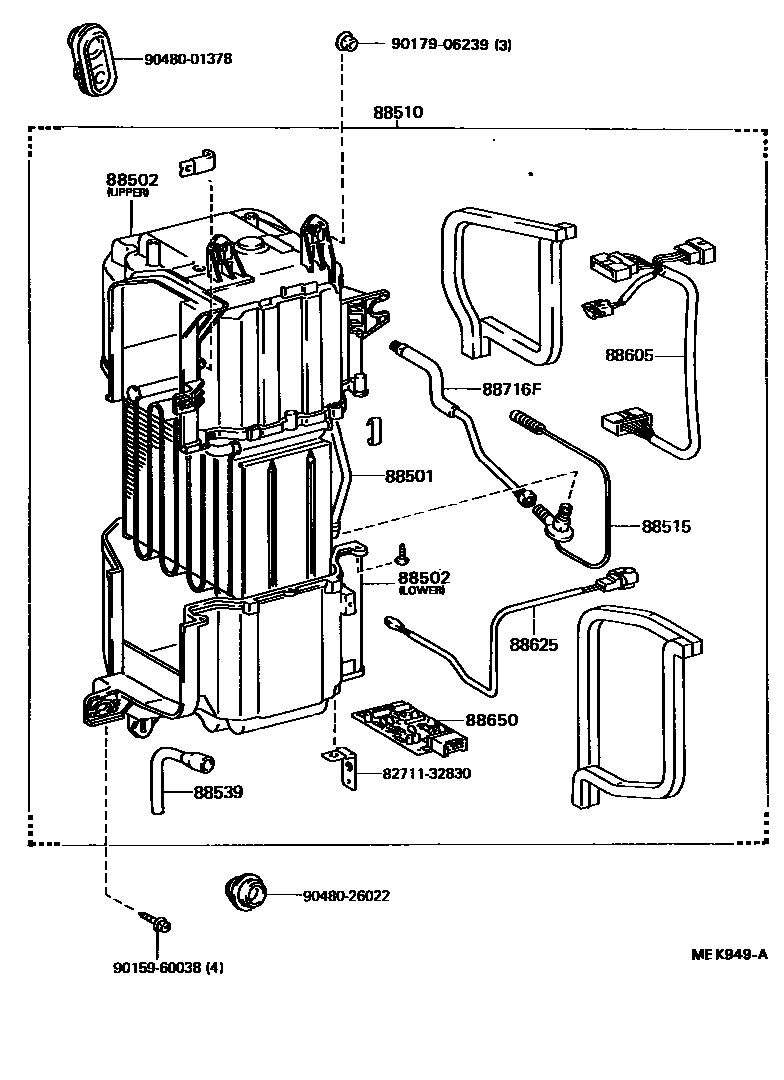

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1HONG KONG SPEC 0003 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-32040iSV21..WG..RHD;SV21..SED..RHD..5F;CV20,SV25,VZV21..RHD198808-199106

main88501-32050iCV20,SV2#,VZV21..LHD198808-199106

88502CASE SUB-ASSY, COOLING UNIT

main88502-32030iSV21..SED..RHD..4FC198808-199106

HONG KONG SPEC,UPPER

main88502-32040iSV21..SED..RHD..4FC198808-199106

HONG KONG SPEC,LOWER

main88502-32050iCV20,SV2#,VZV21..LHD198808-199106

UPPER

sub88502-32100

main88502-32060iCV20,SV2#,VZV21..LHD198808-199106

LOWER

88510UNIT ASSY, COOLER

main88510-32190iSV21..SED..RHD..4FC198808-199106

main88510-32200iCV20..RHD198808-199106

main88510-32211iSV2#..LHD198808-199106

main88510-32221iCV20..LHD198808-199106

main88510-32230iSV21..SED..RHD..4FC198808-199106

HONG KONG SPEC

main88510-32321iVZV21..LHD198808-199106

main88510-32350iVZV21..RHD198808-199106

88515VALVE, COOLER EXPANSION

main88515-16040iSV21..SED..RHD..4FC198808-199106

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iSV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC198808-199106

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-32280iSV21..WG..RHD;SV2#..SED..RHD..5F198808-199106

main88605-32290iCV20..RHD198808-199106

main88605-32400iVZV21..RHD198808-199106

main88605-32410iSV2#..LHD198808-199106

main88605-32420iCV20..LHD198808-199106

main88605-32480iVZV21..LHD198808-199106

88625THERMISTOR, COOLER, NO.1

main88625-32040iSV21..WG;SV21..SED..5F;CV20,SV25,VZV21;SV21..SED..LHD..4FC198808-199106

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-32110iSV2#..RHD198808-199106

main88650-32130iCV20..RHD198911-199106

main88650-32160iVZV21..RHD198808-199106

main88650-32210iSV2#..LHD198808-199106

main88650-32240iVZV21..LHD198808-199106

main88650-32250iCV20198808-199106

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-32270iSV21..SED..RHD..4FC198808-199106

8271132830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32830

9015960038

main90159-60038

9017906239

main90179-06239

9048001378

main90480-01378

9048026022

main90480-26022

14 parts on this diagram · 3 diagrams in section
