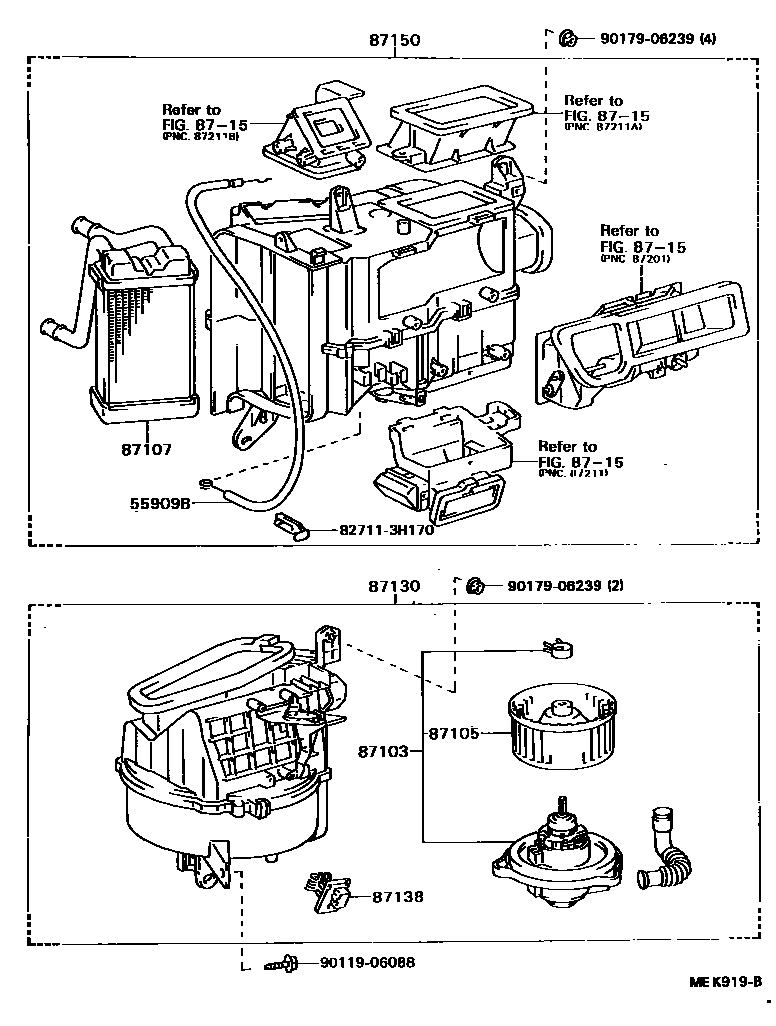

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
55909BCABLE SUB-ASSY, AIRMIX DAMPER CONTROL
SWEDEN SPEC & NORWAY SPEC
SWEDEN SPEC & NORWAY SPEC
87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87105FAN SUB-ASSY, HEATER BLOWER
87107UNIT SUB-ASSY, HEATER RADIATOR
87130BLOWER ASSY, HEATER, FRONT
HONG KONG SPEC
87138RESISTOR, HEATER BLOWER
HONG KONG SPEC
8715
87150RADIATOR ASSY, HEATER
HONG KONG SPEC
HONG KONG SPEC
SWEDEN SPEC & NORWAY SPEC
SWEDEN SPEC & NORWAY SPEC
SWEDEN SPEC & FINLAND SPEC & NORWAY SPEC
SWEDEN SPEC & NORWAY SPEC
827113H170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H170
9011906088
main90119-06088
9017906239
main90179-06239
11 parts on this diagram · 4 diagrams in section
