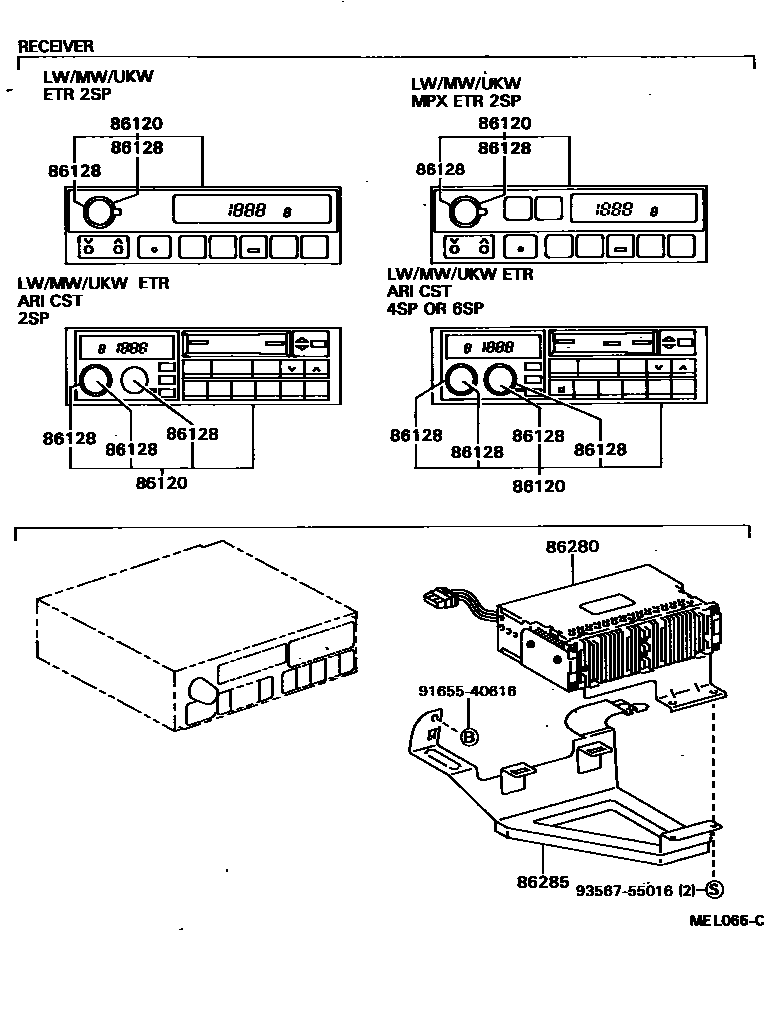

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
MW/UKW ETR ARI CST 4SP 1DIN
MATSUSHITA,LW/MW/UKW ETR ARI CST 4SP OR 6SP 1DIN
FUJITSU TEN,LW/MW/UKW ETR ARI CST A.F. 4SP 1DIN
MATSUSHITA,LW/MW/UKW ETR ARI CST 2SP 1DIN
FUJITSU TEN,LW/MW/UKW MPX ETR 2SP 1DIN
FUJITSU TEN,LW/MW/UKW ETR 2SP 1DIN
LW/MW/UKW ETR ARI CST 4SP OR 6SP 1DIN
86128KNOB, RADIO RECEIVER
PWR/VOL(86120-32420,-2B100)
BASS/TREB,BAL/FADE(86120-32420,-2B100)
PWR/VOL(86120-32111)
PWR/VOL(86120-32241)
TONE(86120-32241)
TONE(86120-32111)
PWR/VOL(86120-32102)
PWR/VOL,TREB(86120-32261,-32440,-2B110)
FADE,BASS(86120-32261,-32440,-2B110)
BAL(86120-32102)
TONE(86120-32102)
86280AMPLIFIER ASSY, STEREO COMPONENT
86285BRACKET, AMPLIFIER, NO.1
9165540616
main91655-40616
9356755016
main93567-55016
6 parts on this diagram · 2 diagrams in section
