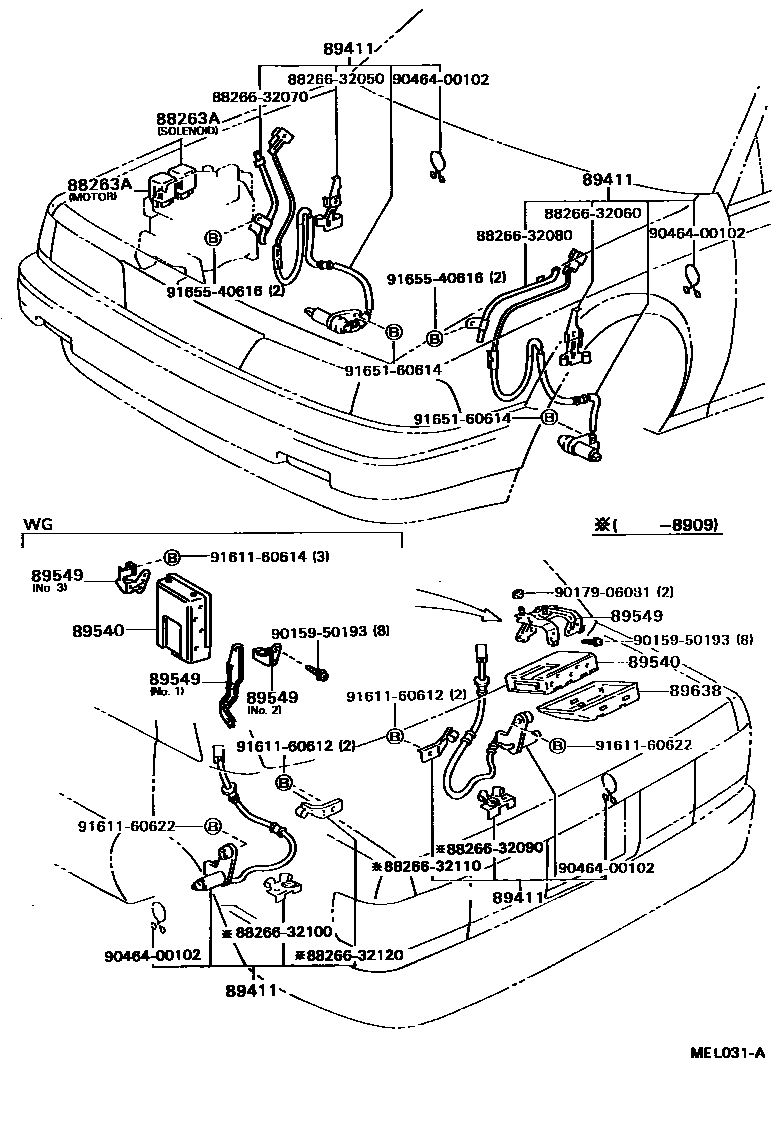

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-14110iSV2#,VZV21¥3,720198808-199106

MOTOR RELAY

main88263-14120iSV2#,VZV21¥3,720198808-199106

SOLENOIDE RELAY

89411SENSOR, SPEED

main89542-32010iSV2#,VZV21¥21,700198808-199106

FRONT RH

main89543-32010iSV2#,VZV21¥21,700198808-199106

FRONT LH

main89545-32010iSV21,VZV21¥21,700198808-199106

REAR RH

main89545-32020iSV25¥21,700198808-199106

REAR RH

main89546-32010iSV21,VZV21¥21,700198808-199106

REAR LH

main89546-32020iSV25¥21,700198808-199106

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-32020iSV25¥95,200198808-199106

main89541-32030iSV21,VZV21¥95,200198808-199106

89549BRACKET, SKID CONTROL COMPUTER

main88267-32070iSV21,VZV21..WG198808-199106

NO.1

main88268-32060iSV21,VZV21..WG198808-199106

NO.2

main88269-32060iSV21,VZV21..WG198808-199106

NO.3

main89549-32020iSV2#,VZV21..SED¥1,540198808-199106

89638COVER, BRAKE CONTROL COMPUTER

main89638-32010iSV2#,VZV21..SED¥1,430198808-199106

8826632050CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32050¥600

8826632060CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32060¥600

8826632070CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32070¥1,460

8826632080CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32080¥1,460

8826632090CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32090¥600

8826632100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32100¥600

8826632110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32110¥600

8826632120CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32120¥600

9015950193

main90159-50193¥80

9017906081

main90179-06081¥200

9046400102

main90464-00102¥160

9161160612

main91611-60612¥130

9161160614

main91611-60614¥180

9161160622

main91611-60622¥200

9165160614

main91651-60614¥70

9165540616

main91655-40616¥120

21 parts on this diagram · 2 diagrams in section
