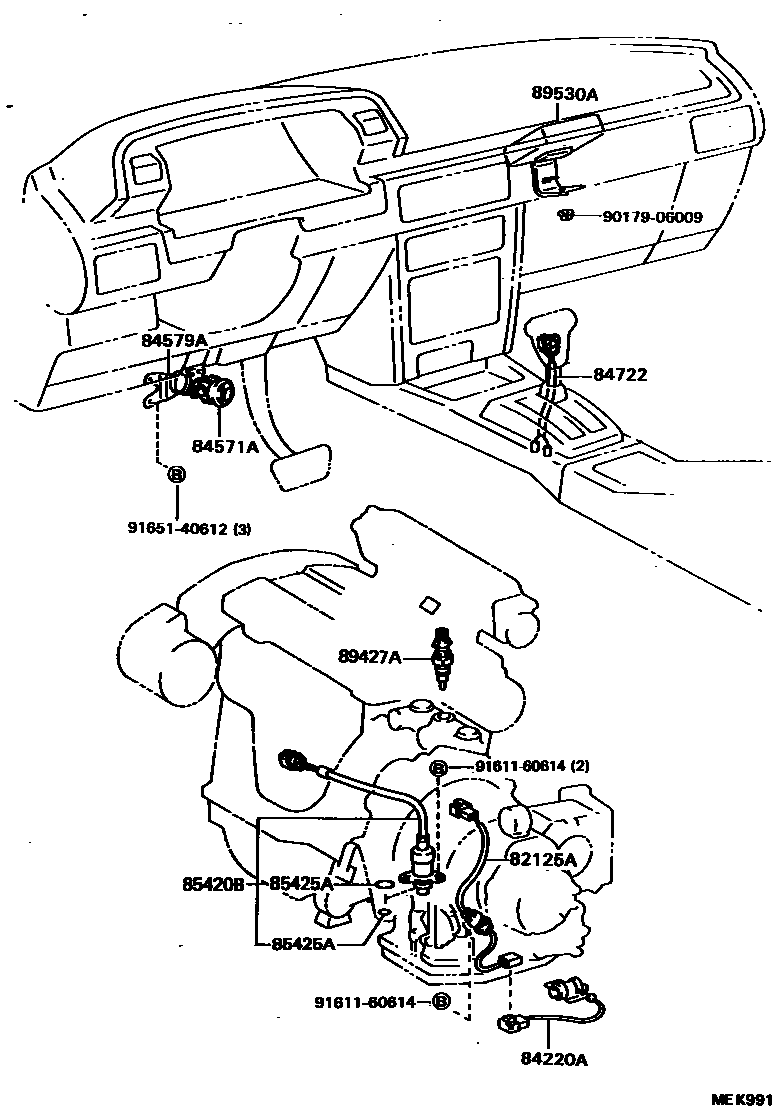

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVERDRIVE 0002 1ECT

82125AWIRE, TRANSMISSION

main82125-20140iSV21..4FC198808-199106

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-32010iSV21..4FC198808-199106

84571ASWITCH, KICK DOWN

main84571-20010iSV21,VZV21..LHD..4FC198808-199106

84579ABRACKET, KICK DOWN SWITCH

main84579-32010iSV21,VZV21..LHD..4FC198808-199106

84722SWITCH, TRANSMISSION CONTROL

main84722-32030-03iSV21,VZV21..RHD..4FC198808-199106

MEDIUM GRAY,TRIM1#

sub84722-32030

main84722-32030-04iSV21,VZV21..RHD..4FC198808-199106

DARK BLUE,TRIM8#

sub84722-32030

main84722-32040-01iSV21..LHD..4FC..GLI;VZV21..SED..LHD..4FC198906-199106

BLACK,TRIM1#

sub84722-32040

main84722-32040-B0iSV21,VZV21..LHD..4FC..(GLI,GXI)198808-199106

MEDIUM GRAY,TRIM1#

sub84722-32040

main84722-32040-E0iSV21,VZV21..LHD..4FC198808-199106

BROWN,TRIM4#

sub84722-32040

main84722-32040-J0iSV21,VZV21..LHD..4FC..(GLI,GXI)198808-199106

DARK BLUE,TRIM8#

sub84722-32040

85420SOLENOID ASSY, TRANSMISSION

main85420-32101iVZV21..4FC198808-198811

NO.1

sub85420-32102

main85420-32103iVZV21..4FC198811-199106

NO.1

main85420-32120iVZV21..4FC198808-199106

NO.2

sub85420-32121

85420BSOLENOID ASSY, TRANSMISSION

main85420-32081iSV21..4FC198808-199106

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iSV21..4FC198808-199106

ID=7

main96721-19017iSV21..4FC198808-199106

ID=17

89427ASWITCH, TEMPERATURE

main89427-12070iSV21..4FC198808-199106

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-32180iSV21..RHD..4FC198808-199106

main89530-32370iSV21..LHD..4FC198808-199106

9017906009

main90179-06009

9161160614

main91611-60614

9165140612

main91651-40612

13 parts on this diagram · 2 diagrams in section
