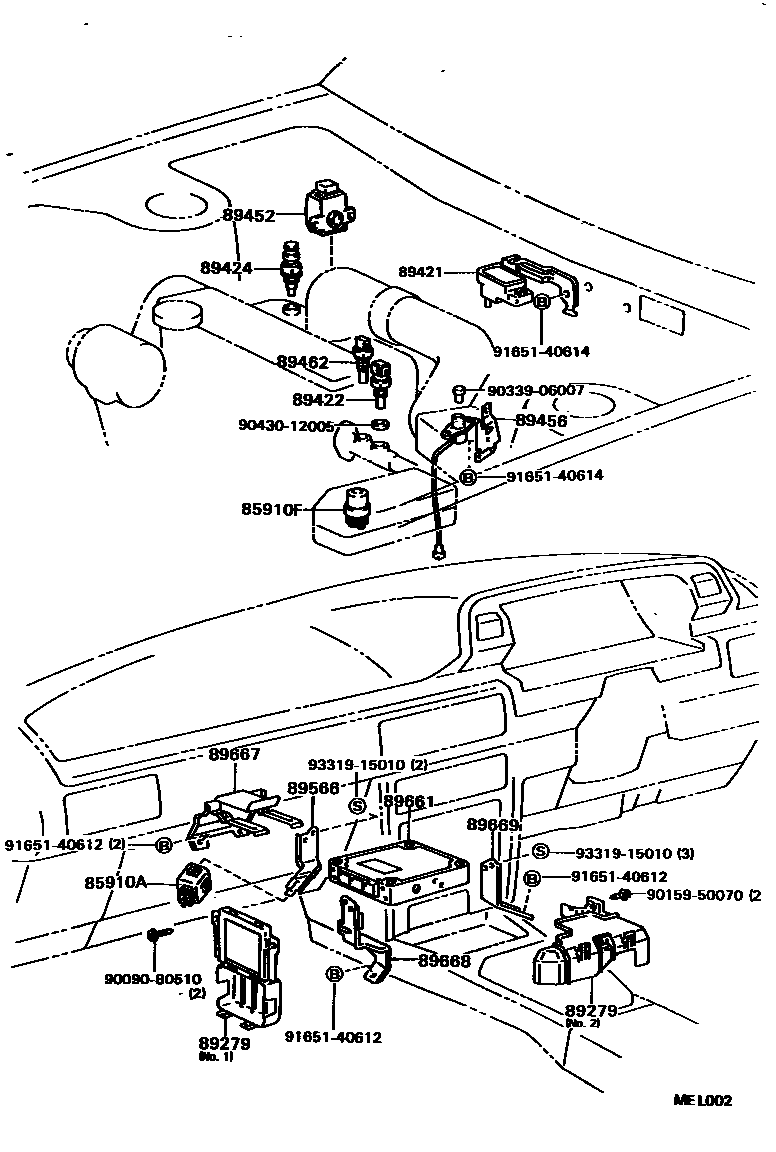

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iSV2#,VZV21198808-199106

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iSV2#,VZV21198808-199106

89279COVER, ENGINE CONTROL COMPUTER

main89279-32070iSV2#198808-199106

NO.1

main89279-32080iSV2#,VZV21..RHD198808-199106

NO.2

main89279-32090iVZV21198808-199106

NO.1

main89279-32110iSV2#,VZV21..LHD198808-199106

NO.2

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-32010iSV2#..EUR198808-198911

main89420-32020iSV2#..EUR198911-199106

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iSV2#,VZV21198808-199106

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iSV2#..EUR198808-199106

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iVZV21198908-199106

main89452-14050iVZV21198903-198908

main89452-28030iVZV21198808-198903

sub89452-20050

main89452-32020iSV2#198808-199106

89456RESISTOR, VARIABLE

main89456-32010iSV2#..EUR198808-199106

89462SWITCH, START INJECTOR TIME

main89462-20020iSV25..EUR;SV21,VZV21198808-199106

main89462-20030iSV25..G198808-199004

89566BRACKET, FUEL INJECTION COMPUTER

main89566-32010iSV21,VZV21..LHD..4FC198808-199106

main89566-32020iSV2#..RHD198808-199106

main89566-32030iVZV21..RHD;SV2#,VZV21..LHD..5F198808-199106

89661COMPUTER, ENGINE CONTROL

main89661-20490iSV21..EUR198808-199005

main89661-20491iSV21..EUR199005-199106

main89661-32150iVZV21..RHD198808-198910

sub89661-32530

main89661-32180iSV25..EUR198808-199106

main89661-32192iSV21..5F..G198808-199004

main89661-32193iSV21..G199004-199106

main89661-32290iVZV21..5F198808-198910

sub89661-32510

main89661-32300iVZV21..LHD..4FC198808-198910

sub89661-32520

main89661-32370iSV25..G198808-198908

sub89661-32372

main89661-32371iSV25..G198908-199004

main89661-32373iSV25..G199004-199106

main89661-32510iVZV21..5F198910-199106

main89661-32520iVZV21..LHD..4FC198910-199106

main89661-32530iVZV21..RHD198910-199106

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-32020iSV2#,VZV21198808-199106

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-32010iSV2#,VZV21..RHD198808-199106

main89668-32020iSV2#..LHD198808-199106

main89668-32030iVZV21..LHD198808-199106

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-32030iSV2#,VZV21..RHD198808-199106

main89669-32040iSV2#,VZV21..LHD198808-199106

9009080510

main90090-80510

9015950070

main90159-50070

9033906007

main90339-06007

9043012005

main90430-12005

9165140612

main91651-40612

9165140614

main91651-40614

9331915010

main93319-15010

21 parts on this diagram · 3 diagrams in section
