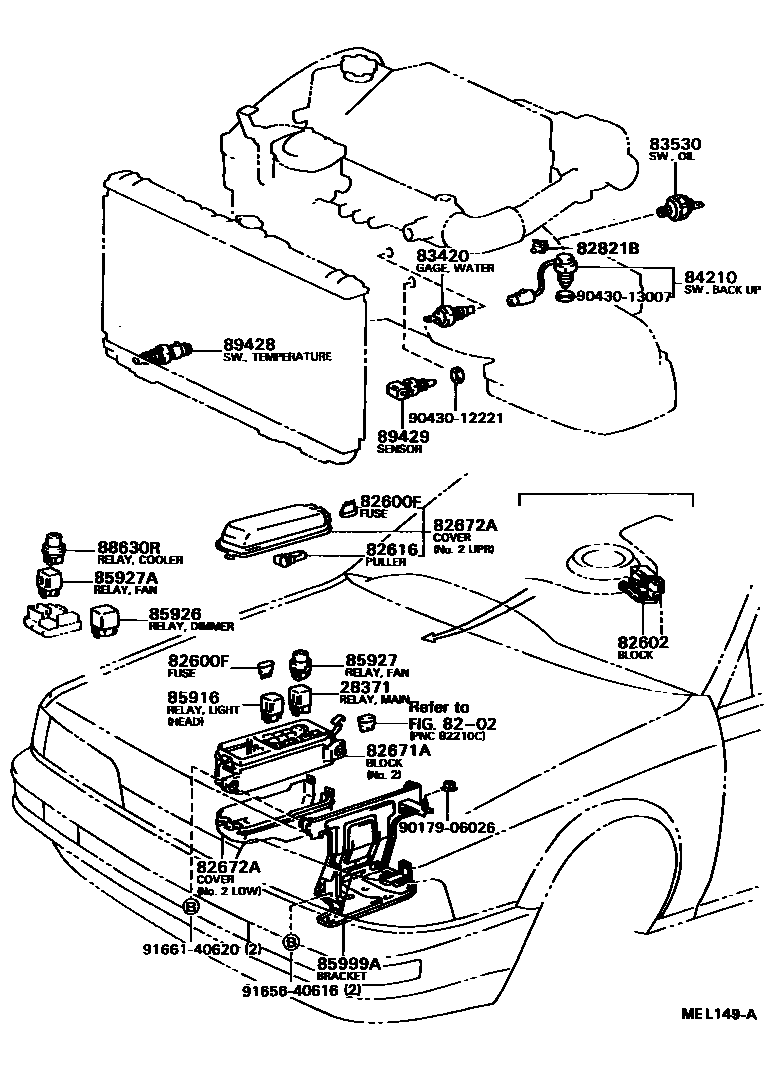

SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
8202
82600FFUSE, FUSE BLOCK
30A,GREEN
10A
15A
20A,YELLOW
7.5A
82602BLOCK SUB-ASSY, RELAY
82616PULLER, FUSE
82671ABLOCK, JUNCTION
NO.1
NO.2
82672ACOVER, JUNCTION BLOCK
NO.3
NO.3
NO.2,LWR
NO.1
NO.1
NO.2
NO.2
UNITED KINGDOM SPEC,NO.2,UPR
NO.2,UPR
82821BCOVER, CONNECTOR
83420GAGE ASSY, WATER TEMPERATURE SENDER
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
85916RELAY, LIGHT CONTROL
MARUKO,TAIL LAMP
NIPPONDENSO,TAIL LAMP
HEADLAMP
85926RELAY, HEADLAMP DIMMER
85927RELAY, COOLING FAN
85927ARELAY, COOLING FAN, NO.2
85999ABRACKET, RELAY, NO.2
88630RRELAY ASSY, COOLER, NO.3
89428SWITCH, TEMPERATURE DETECT, NO.2
89429SENSOR, OIL TEMPERATURE
9017906026
main90179-06026
9043012221
main90430-12221
9043013007
main90430-13007
9165640616
main91656-40616
9166140620
main91661-40620
24 parts on this diagram · 9 diagrams in section
