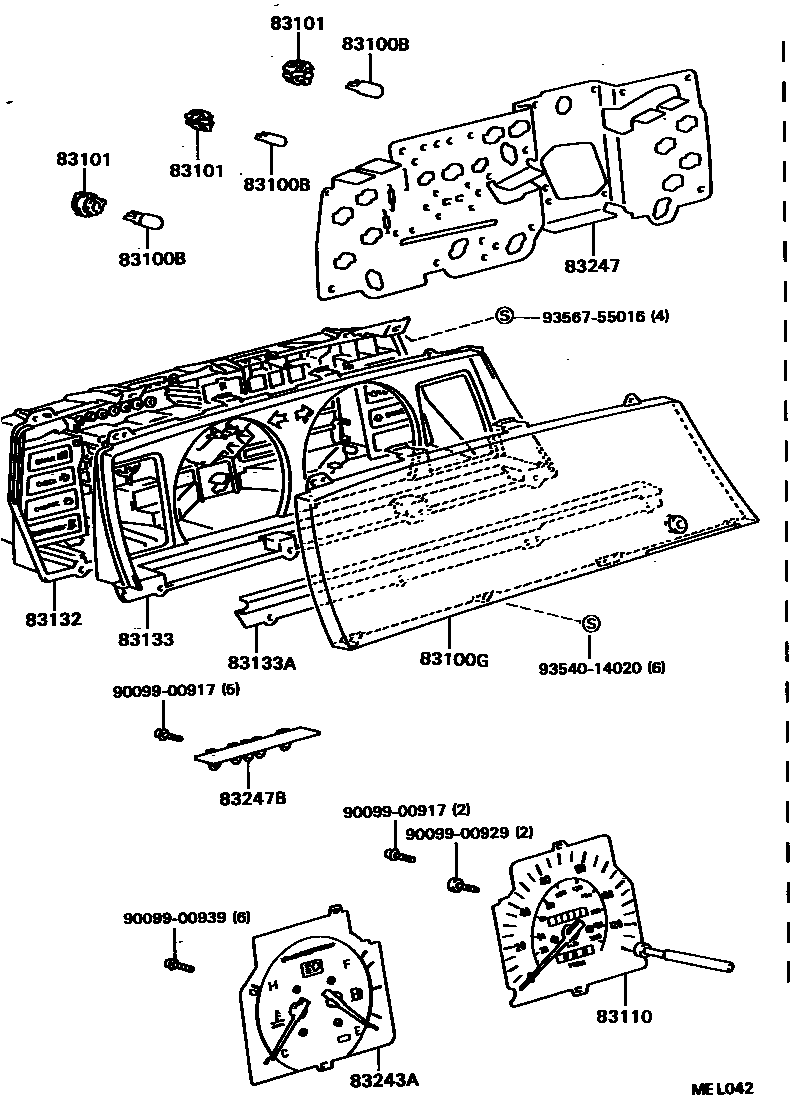

METER

0001 1ANALOG 0002 1ANALOG(W/TACHOMETER) 0003 1DIGITAL 0004 1SOCKET & BULB 0005 1 0006 1

83100BBULB, COMBINATION METER, NO.1

main83109-10010iSV2#,VZV21198808-199106

12V 1.4W,ORANGE CAP

main83109-20030×3iVZV21..SED..LHD198808-199106

12V 1.4W,BLUE CAP

main83109-24020×4iCV20,SV2#,VZV21198808-199106

12V3.4W W(GREEN CAP)

main90981-11018×2iCV20..GL198808-199106

12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER)

main99132-12034×5iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

12V 3.4W,W(TACHOMETER)

83100GGLASS, COMBINATION METER

main83133-32410iVZV21..SED..LHD198808-199106

W(DIGITAL SPEEDOMETER)

main83138-32030iCV20,SV2#,VZV21..RHD198808-199106

main83138-32050iCV20,SV2#,VZV21..LHD198808-199106

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×5iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(TACHOMETER),NO.1

main83101-14040×2iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(TACHOMETER),NO.2

main83101-32010iVZV21..SED..LHD198808-199106

W(DIGITAL SPEEDOMETER),NO.1

83110SPEEDOMETER ASSY

main83110-32461iCV20,SV21..LHD..(XL,XLI)198808-199106

main83110-32471iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(TACHOMETER)

main83110-32481iCV20..RHD..XL198808-199106

W(TACHOMETER)

main83110-32491iCV20..RHD..XL198808-199106

main83110-32501iSV21..SED..RHD..4FC198808-199106

KM/H(HONG KONG SPEC)

main83110-32541iVZV21..LHD198808-199106

main83110-32620iVZV21..RHD198808-199106

83132CASE, COMBINATION METER

main83132-32060iVZV21..SED..LHD198808-199106

W(DIGITAL SPEEDOMETER)

main83132-32820iCV20..RHD..XL198808-199106

W(TACHOMETER)

main83132-32840iSV2#,VZV21..RHD198808-199106

main83132-32880iCV20..LHD..GL198808-199106

W(TACHOMETER)

main83132-3H010iSV21..XLI198808-199106

W(TACHOMETER)

main83132-3H030iCV20..RHD..XL198808-199106

main83132-3H050iCV20..LHD..XL198808-199106

main83132-3H070iSV21..XLI198808-199106

83133PLATE, COMBINATION METER, NO.1

main83133-32330iVZV21..SED..LHD198808-199106

W(DIGITAL SPEEDOMETER)

main83133-32530iCV20..RHD..XL198808-199106

main83133-32550iCV20,SV21..LHD..(XL,XLI)198808-199106

main83133-32690iCV20,SV21..LHD..(XL,XLI)198808-199106

W(TACHOMETER)

main83133-32710iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-199106

W(TACHOMETER)

83133APLATE, COMBINATION METER, NO.2

main83133-32470iVZV21..SED..LHD198808-199106

W(DIGITAL SPEEDOMETER)

main83133-32590iCV20,SV2#,VZV21..RHD198808-199106

main83133-32610iCV20,SV2#,VZV21..LHD198808-199106

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-32830iCV20..LHD..XL198808-199106

main83243-32850iSV21..XLI..EUR198808-199106

main83243-32870iSV21..XLI..G198808-199106

main83243-3H010iCV20..RHD..XL198808-199106

main83243-3H070iSV2#..RHD198808-199106

main83243-3H090iCV20,VZV21..SED..RHD198808-199106

W(TACHOMETER)

main83243-3H110iCV20..LHD..GL198808-199106

W(TACHOMETER)

main83243-3H130iSV2#..LHD..GLI..EUR198808-199106

W(TACHOMETER)

main83243-3H150iSV21..XLI..G198808-199106

W(TACHOMETER)

main83243-3H170iVZV21..LHD198808-199106

83247PLATE, METER CIRCUIT

main83247-32300iSV21..XLI..G198808-199106

main83247-32320iVZV21..SED..LHD198808-199106

W(DIGITAL SPEEDOMETER)

main83247-32520iCV20..LHD..XL198808-199106

main83247-32860iCV20,SV21..LHD..(XL,XLI)198808-199106

W(TACHOMETER)

main83247-3H110iCV20..RHD..XL198808-199106

W(TACHOMETER)

main83247-3H130iSV2#,VZV21..RHD198808-199106

main83247-3H150iSV21..SED..RHD..4FC198808-199106

KM/H(HONG KONG SPEC)

main83247-3H190iCV20..RHD..XL198808-199106

main83247-3H290iSV21..XLI..EUR198808-199106

83247BPLATE, METER CIRCUIT, NO.2

main83247-32660iCV20..XL198808-199106

main83247-32680iSV21..XLI198808-199106

main83247-32700iCV20..RHD..XL198808-199106

W(TACHOMETER)

main83247-32740iCV20,SV21..LHD..(XL,XLI)198808-199106

W(TACHOMETER)

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9354014020

main93540-14020

9356755016

main93567-55016

15 parts on this diagram · 6 diagrams in section
