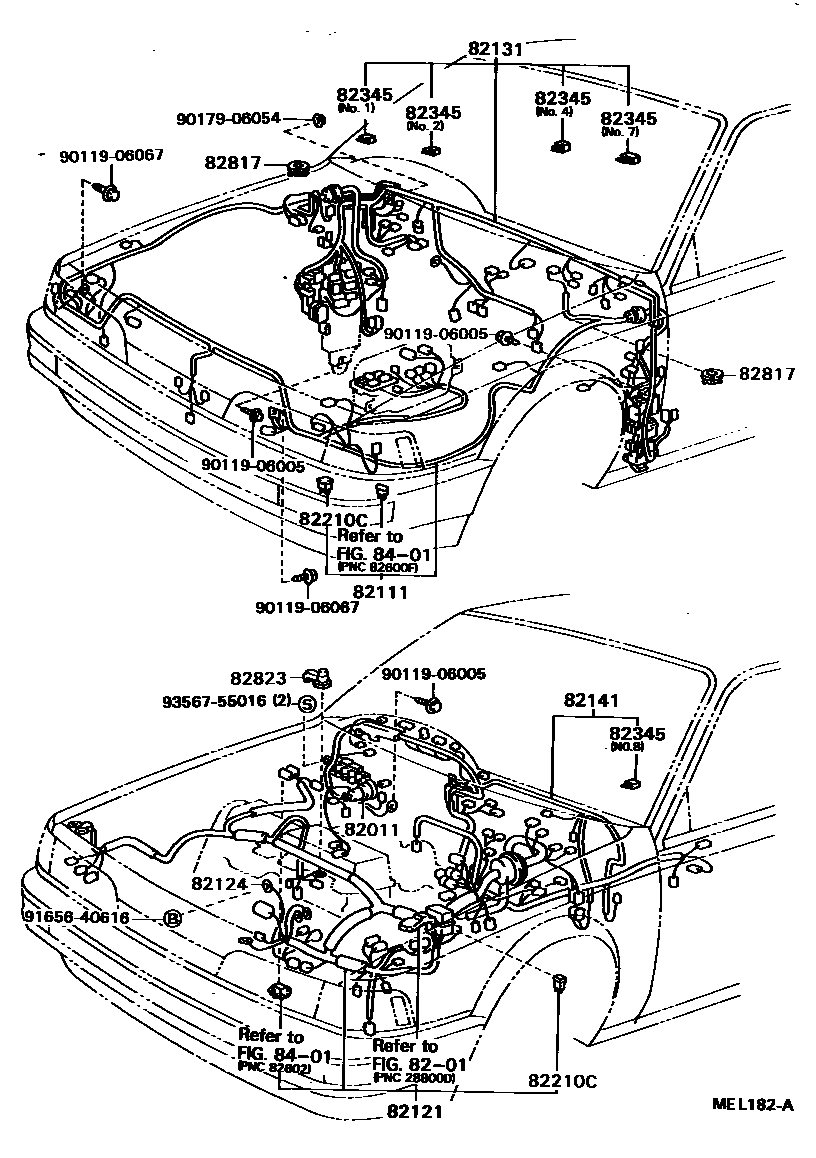

WIRING & CLAMP
8201
82011WIRING ASSY, BRAKE WARNING SYSTEM
82111WIRE, ENGINE ROOM MAIN
W(ANTI-LOCK BRAKE SYSTEM)
W(ANTI-LOCK BRAKE SYSTEM)
W(ANTI-LOCK BRAKE SYSTEM)
UNITED KINGDOM SPEC
W(ANTI-LOCK BRAKE SYSTEM)
UNITED KINGDOM SPEC & *66 OR UNITED KINGDOM SPEC & *66 & *CRC
UNITED KINGDOM SPEC
*FRG
*FRG & *66
*FRG
82124WIRE, ENGINE, NO.4
82131WIRE, COWL
W(POWER WINDOW)---EXCL/SWEDEN,FINLAND,NORWAY SPEC
W(POWER WINDOW)---EXCL/SWEDEN,FINLAND,NORWAY SPEC
FINLAND SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC;NORWAY SPEC OR NORWAY SPEC & W(*PW)
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC OR DENMARK SPEC
SWEDEN SPEC OR SWEDEN SPEC & W(*PW) OR FINLAND SPEC OR FINLAND SPEC & W(*PW);NORWAY SPEC OR NORWAY SPEC & W(*PW) OR DENMARK SPEC OR DENMARK SPEC & W(*PW)
FINLAND SPEC OR NORWAY SPEC
FINLAND SPEC OR NORWAY SPEC OR ICELAND SPEC
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC OR DENMARK SPEC
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC OR DENMARK SPEC
UNITED KINGDOM SPEC
HONG KONG SPEC
82141WIRE, INSTRUMENT PANEL
W(DIGITAL SPEEDOMETER)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
80A,TERM.:MALE,BLK
82345DIODE
INSTRUMENT WIRE,NO.8
COWL WIRE,NO.1
COWL WIRE,NO.2
ENGINE WIRE,NO.3
COWR WIRE,NO.4
INSTRUMENT WIRE,NO.4
COWL WIRE,NO.4
ENGINE WIRE,NO.5
ENGINE WIRE,NO.6
ENGINE MAIN WIRE,NO.7
COWR WIRE,NO.7
COWL WIRE,NO.7
82817PROTECTOR, WIRING HARNESS, NO.1
UNITED KINGDOM SPEC & W(*66 & *CRC)
UNITED KINGDOM SPEC & W(*66 & *CRC)
82823CAP, TERMINAL, NO.1
8401
9011906005
main90119-06005
9011906067
main90119-06067
9017906054
main90179-06054
9165640616
main91656-40616
9356755016
main93567-55016
17 parts on this diagram · 10 diagrams in section
