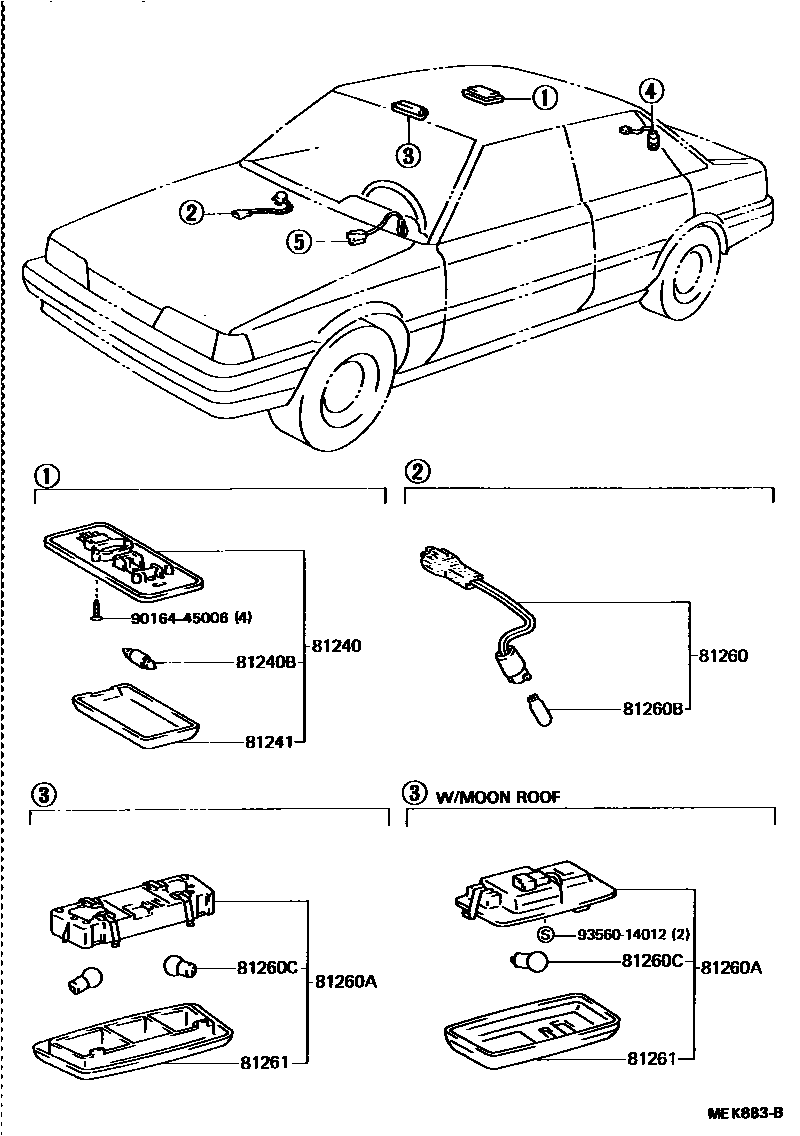

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-22081-23iCV20,SV2#;VZV21..SED198808-199008

GRAY,TRIM1#,8#

main81240-22081-36iCV20,SV2#..LHD;VZV21..SED..LHD198808-199008

LIGHT BROWN,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iCV20,SV2#,VZV21198808-199106

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iCV20,SV2#,VZV21198808-199106

81260LAMP ASSY, GLOVE BOX

main81260-32060iCV20,SV2#,VZV21198808-199106

81260ALAMP ASSY, MAP

main81260-32040-03iVZV21..SED;CV20,SV2#..GL,GLI198808-199106

LIGHT GRAY,TRIM1#,8#

main81260-32040-06iVZV21..SED..LHD;CV20,SV2#..LHD..(GL,GLI)198808-199106

LIGHT BROWN,TRIM4#

main81260-32050-03iVZV21..RHD198808-199106

LIGHT GRAY,TRIM1#

main81260-32050-06iCV20,SV21..LHD..(XL,XLI)198808-199008

LIGHT BROWN,TRIM4#

81260BBULB(FOR GLOVE BOX)

main90981-11018iCV20,SV2#,VZV21198808-199106

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12005×2iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

12V 8W

main90981-12014iCV20,SV2#,VZV21198808-199106

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-32040-03iVZV21..SED;CV20,SV2#..GL,GLI198808-199106

LIGHT GRAY,TRIM1#,8#

main81261-32040-06iVZV21..SED..LHD;CV20,SV2#..LHD..(GL,GLI)198808-199106

LIGHT BROWN,TRIM4#

main81261-32050-03iCV20,SV21..XL,XLI198808-199008

LIGHT GRAY,TRIM1#,8#

main81261-32050-06iCV20,SV21..LHD..(XL,XLI)198808-199008

LIGHT BROWN,TRIM4#

9016445006

main90164-45006

9356014012

main93560-14012

10 parts on this diagram · 2 diagrams in section
