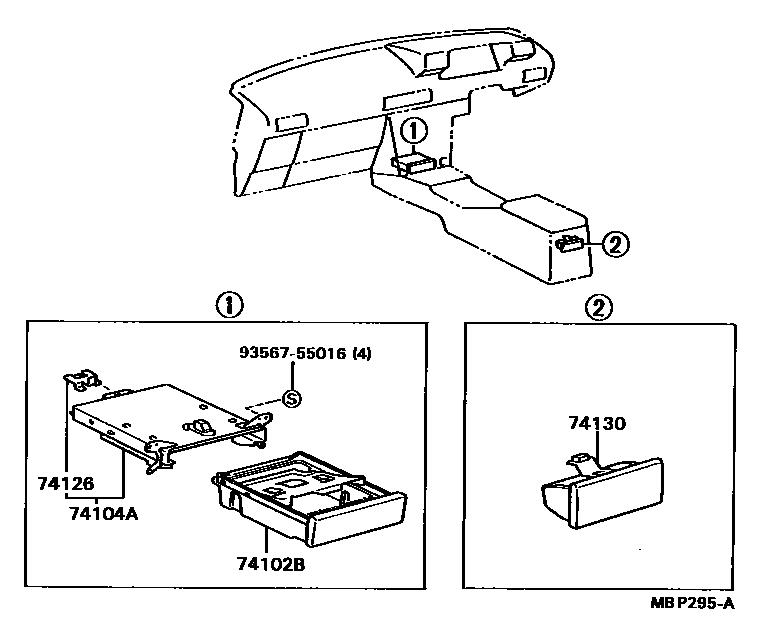

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-32030iCV20,SV2#198808-199106

main74102-32040iVZV21198808-199106

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-32030iCV20,SV2#198808-199106

main74104-32040iVZV21198808-199106

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iCV20,SV2#,VZV21198808-199106

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-B0iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-E0iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-J0iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

sub74109-20080

sub74109-32010

9356755016

main93567-55016

5 parts on this diagram · 1 diagram in section
