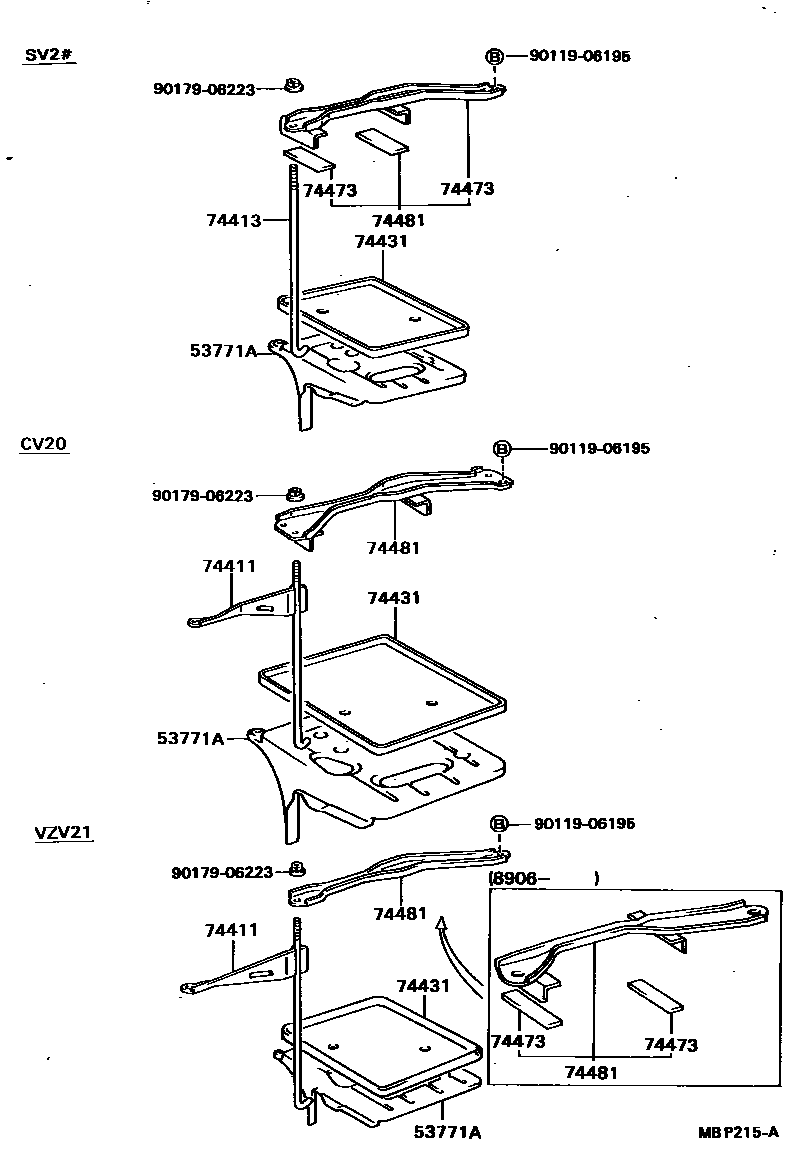

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-32020iCV20,SV2#,VZV21198808-199106

74411CARRIER, BATTERY

main74403-32040iCV20198808-199106

main74403-32050iVZV21198808-199106

74413BOLT, BATTERY CLAMP

main74451-14010iSV2#198808-198906

main74451-32010iSV2#..RHD198808-199106

COLD SPEC

main74451-32040iSV2#198906-199106

sub74451-10060

74431TRAY, BATTERY

main74431-14020iSV2#198808-199106

main74431-14030iCV20,VZV21198808-199106

COLD SPEC

sub74431-52040

main74431-14040iCV20..LHD198808-199106

COLD SPEC

74473SPACER, BATTERY

main74473-22010×2iVZV21198908-199106

74481CLAMP, BATTERY HOLD DOWN

main74404-32050iCV20,VZV21198808-198908

COLD SPEC

main74404-32060iSV2#198808-199106

main74404-32080iVZV21198908-199106

COLD SPEC

9011906195

main90119-06195

9017906223

main90179-06223

8 parts on this diagram · 1 diagram in section
