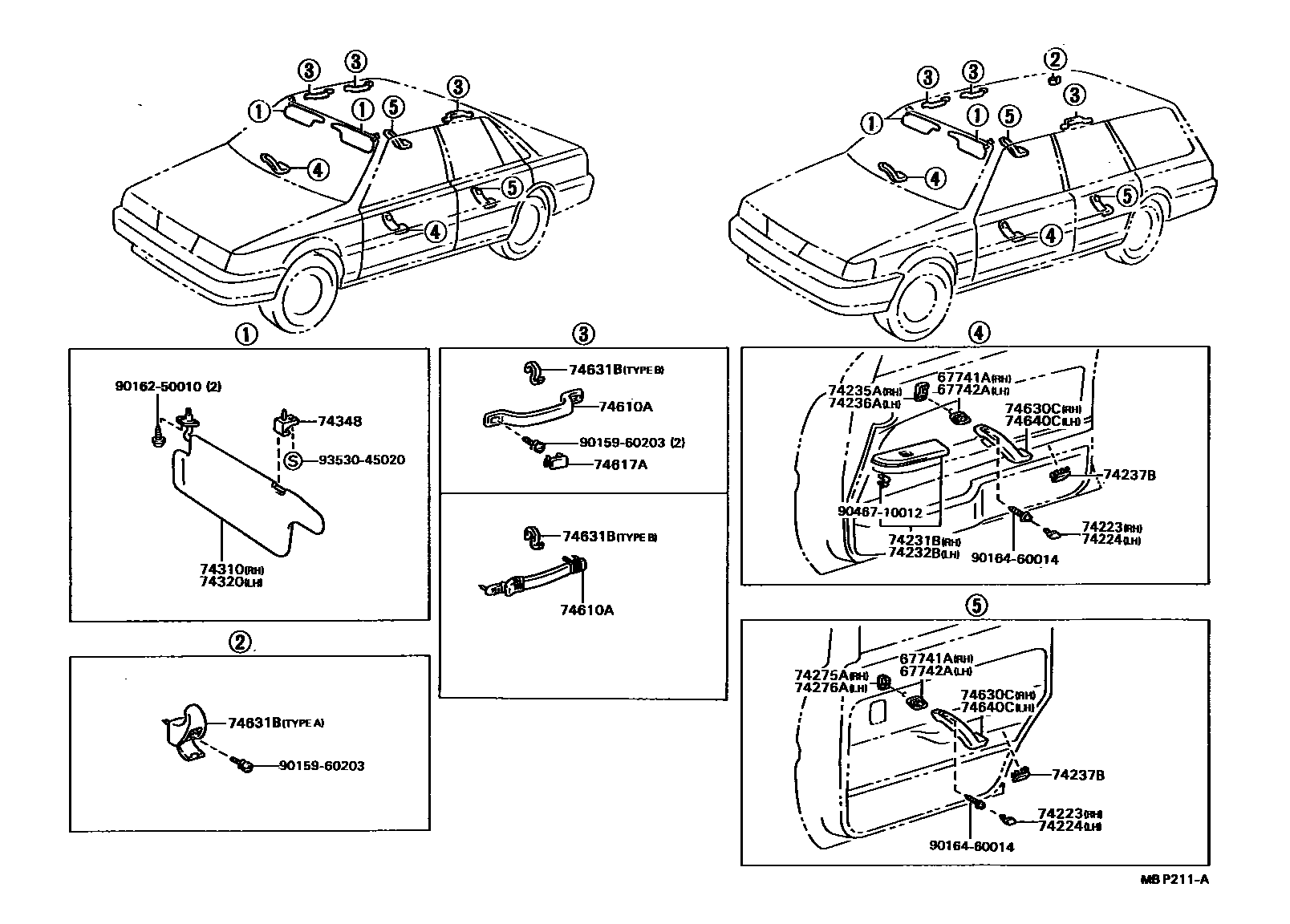

ARMREST & VISOR

67741AMOULDING, FRONT DOOR TRIM, RH

main67741-32050×2iCV20,SV2#,VZV21198808-199106

67742AMOULDING, FRONT DOOR TRIM, LH

main67742-32020×2iCV20,SV2#,VZV21198808-199106

74223CAP, DOOR ARMREST, RH

main74223-32020-03×2iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

main74223-32020-04×2iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

main74223-32020-06×2iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

74224CAP, DOOR ARMREST, LH

main74224-32010-03×2iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

main74224-32010-04×2iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

main74224-32010-06×2iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

74231BPANEL, DOOR ARMREST BASE, RH

main74231-32080-03iCV20,SV2#,VZV21..RHD198808-199106

MEDIUM GRAY,TRIM1#

main74231-32080-04iCV20,SV2#,VZV21..RHD198808-199106

DARK BLUE,TRIM8#

main74231-32090-03iCV20,SV2#,VZV21..LHD198808-199106

MEDIUM GRAY,TRIM1#

main74231-32090-04iCV20,SV2#,VZV21..LHD198808-199106

DARK BLUE,TRIM8#

main74231-32090-06iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

74232BPANEL, DOOR ARMREST BASE, LH

main74232-32070-03iCV20,SV2#,VZV21..RHD198808-199106

MEDIUM GRAY,TRIM1#

main74232-32070-04iCV20,SV2#,VZV21..RHD198808-199106

DARK BLUE,TRIM8#

main74232-32080-03iCV20,SV2#,VZV21..LHD198808-199106

MEDIUM GRAY,TRIM1#

main74232-32080-04iCV20,SV2#,VZV21..LHD198808-199008

DARK BLUE,TRIM8#

main74232-32080-06iCV20,SV2#,VZV21..LHD198808-199008

BROWN,TRIM4#

74235APLATE, FRONT DOOR ARMREST BASE FINISH, RH

main74235-32010iCV20,SV2#,VZV21198808-199106

74236APLATE, FRONT DOOR ARMREST BASE FINISH, LH

main74236-32010iCV20,SV2#,VZV21198808-199106

74237BCAP, DOOR ARMREST BASE

main74237-32010-03×4iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

main74237-32010-04×4iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

main74237-32010-16×4iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

74275APLATE, REAR DOOR ARMREST BASE FINISH,RH

main74275-32010iCV20,SV2#,VZV21198808-199106

74276APLATE, REAR DOOR ARMREST BASE FINISH,LH

main74276-32010iCV20,SV2#,VZV21198808-199106

74310VISOR ASSY, RH

main74310-32310-03iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-198908

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

main74310-32310-06iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

LIGHT BROWN,TRIM4#

main74310-32340-03iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-199106

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

main74310-32350-03iSV2#,VZV21..LHD..(GLI,GXI)..G198808-199106

SWEDEN SPEC,LIGHT GRAY,TRIM1#,8#

main74310-32350-06iSV2#,VZV21..LHD..(GLI,GXI)..G198808-199106

SWEDEN SPEC & W(MOON ROOF),LIGHT BROWN,TRIM4#

main74310-32420-03iCV20,SV21..LHD..(XL,XLI)198808-198908

LIGHT GRAY,TRIM1#,8#

main74310-32420-06iCV20,SV21..LHD..(XL,XLI)198808-199106

BROWN,TRIM4#

main74310-32430-03iCV20..RHD..XL198808-199106

LIGHT GRAY,TRIM1#,8#

main74310-32440-03iSV21..XLI..G198808-199106

SWEDEN SPEC,LIGHT GRAY,TRIM1#,8#

main74310-32440-06iSV21..XLI..G198808-199106

SWEDEN SPEC,BROWN,TRIM4#

74320VISOR ASSY, LH

main74320-32280-03iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

main74320-32280-06iCV20,SV21..LHD..(XL,XLI)198808-199106

LIGHT BROWN,TRIM4#

main74320-32310-03iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-199106

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

main74320-32380-03iCV20,SV21..LHD..(XL,XLI)198808-199106

LIGHT GRAY,TRIM1#,8#

main74320-32380-06iCV20,SV21..LHD..(XL,XLI)198808-199106

BROWN,TRIM4#

main74320-32400-03iCV20..RHD..XL198808-199106

LIGHT GRAY,TRIM1#,8#

74348HOLDER, VISOR

main74348-12020-04×2iCV20,SV2#;VZV21..SED198808-199106

LIGHT BLUE,TRIM8#

sub74348-60010

sub74348-26020

main74348-12020-16×2iCV20,SV2#,VZV21..LHD198808-199106

LIGHT BROWN,TRIM4#

sub74348-60010

sub74348-26020

main74348-12020-23×2iVZV21..WG198808-199106

LIGHT GRAY,TRIM1#,8#

sub74348-60010

sub74348-26020

74610AGRIP SUB-ASSY, ASSIST

main74610-32020-03×3iCV20,SV2#,VZV21198808-199106

LIGHT GRAY,TRIM1#,8#

sub74610-35012

main74610-32020-06×3iCV20,SV2#,VZV21..LHD198808-199106

LIGHT BROWN,TRIM4#

sub74610-35012

main74610-32030-B0×3iCV20,SV2#,VZV21198808-199106

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

main74610-32030-E0×3iCV20,SV2#,VZV21..LHD198808-199106

W(MOON ROOF),LIGHT BROWN,TRIM4#

74617APLUG, ASSIST GRIP

main74617-16010-23×6iCV20,SV2#,VZV21198808-199106

GRAY,TRIM1#,8#

main74617-16010-56×6iCV20,SV2#,VZV21..LHD198808-199106

LIGHT SABLE,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-32010-03×2iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

main74630-32010-04×2iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

main74630-32010-06×2iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

74631BHOOK, COAT

main74631-32010-03×2iCV20,SV21,VZV21..WG198808-199106

LIGHT GRAY,TRIM1#,8#,TYPE A

sub74631-14010

main74631-32010-06×2iCV20,SV21,VZV21..WG..LHD198808-199106

LIGHT BROWN,TRIM4#,TYPE A

sub74631-14010

main74631-32020-03iCV20,SV2#,VZV21..SED198808-199106

LIGHT GRAY,TRIM1#,8#

main74631-32020-06iCV20,SV2#,VZV21..SED..LHD198808-199106

LIGHT BROWN,TRIM4#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-32010-03×2iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

main74640-32010-04×2iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

main74640-32010-06×2iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

9015960203

main90159-60203

9016250010

main90162-50010

9016460014

main90164-60014

9046710012

main90467-10012

9353045020

main93530-45020

24 parts on this diagram · 1 diagram in section
