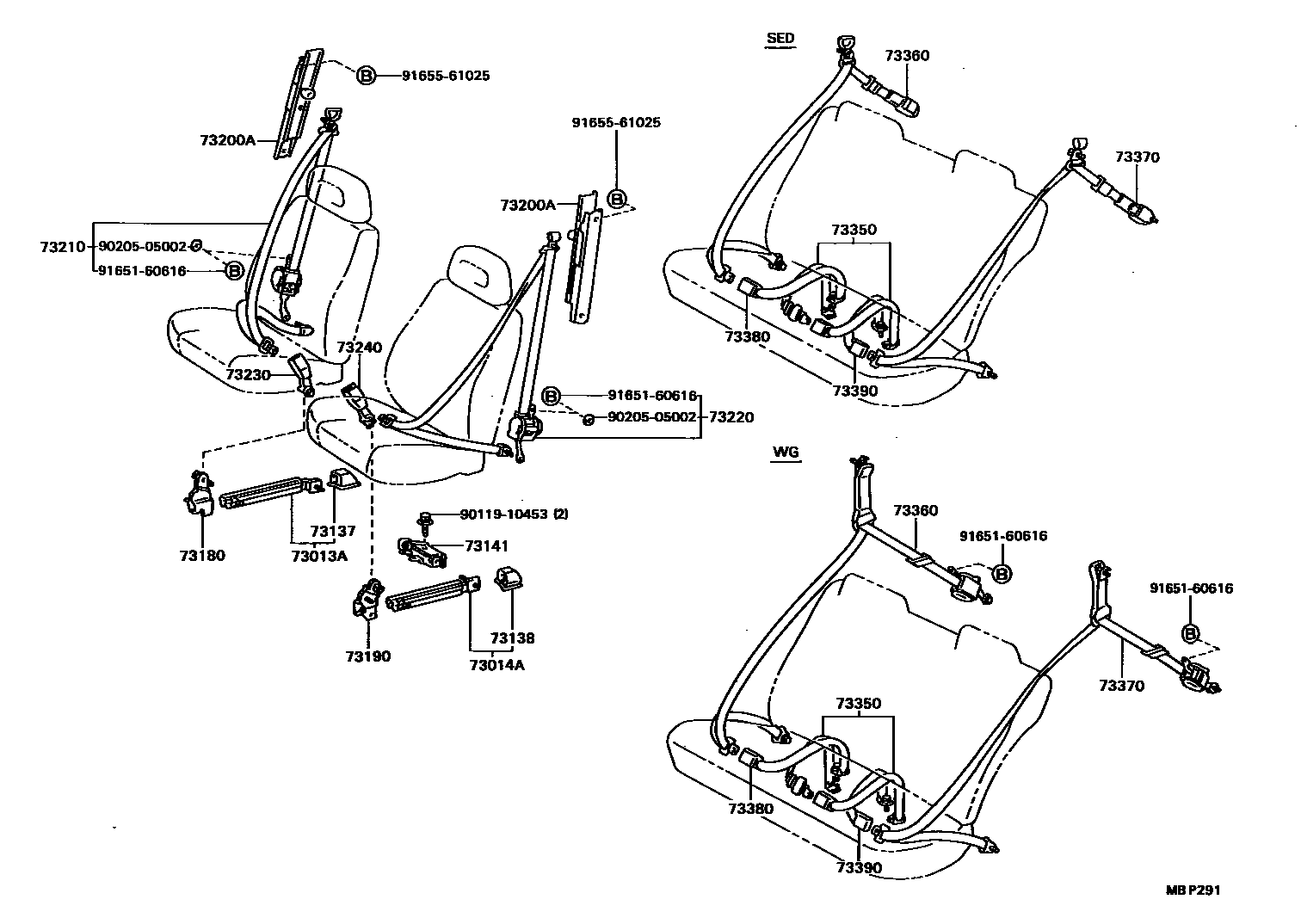

SEAT BELT & CHILD RESTRAINT SEAT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
73141BASE, FRONT SEAT BELT ANCHOR
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
DARK BLUE,TRIM8#
sub73210-32202
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
9011910453
main90119-10453
9020505002
main90205-05002
9165160616
main91651-60616
9165561025
main91655-61025
21 parts on this diagram · 1 diagram in section
