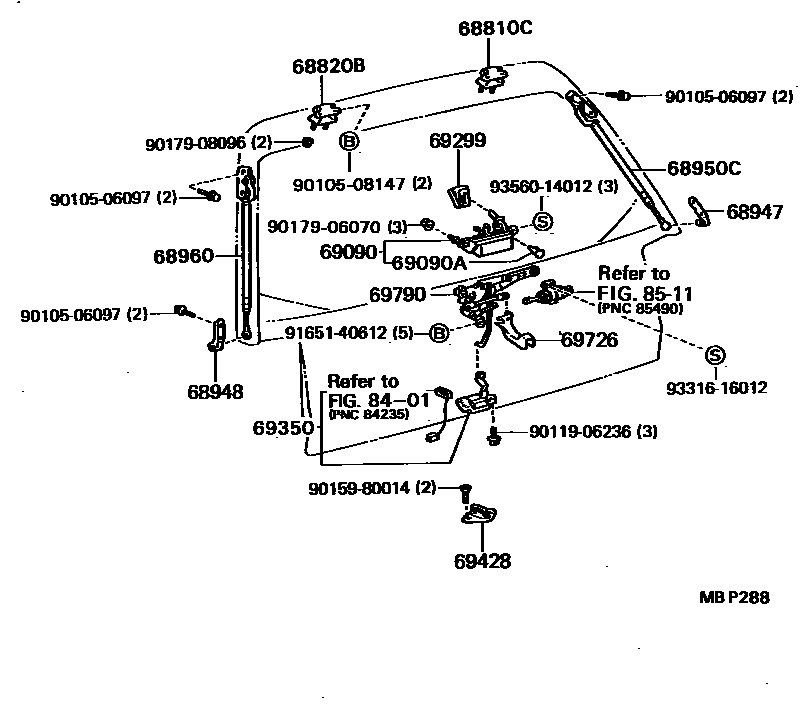

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-32011iCV20,SV21,VZV21..WG198808-199106

68820BHINGE ASSY, BACK DOOR, LH

main68810-32011iCV20,SV21,VZV21..WG198808-199106

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-32010iCV20,SV21,VZV21..WG198808-199106

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-32010iCV20,SV21,VZV21..WG198808-199106

68950CSTAY ASSY, BACK DOOR, RH

main68950-39206iCV20,SV21,VZV21..WG198808-199106

sub68950-39207

68960STAY ASSY, BACK DOOR, LH

main68960-39076iCV20,SV21,VZV21..WG198808-199106

sub68960-39077

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-32010iCV20,SV21,VZV21..WG198808-199106

69090ACUSHION(FOR BACK DOOR OUTSIDE HANDLE)

main90541-03021iCV20,SV21,VZV21..WG198808-199106

69299GROMMET, BACK DOOR HANDLE

main69299-32010iCV20,SV21,VZV21..WG198808-199106

69350LOCK ASSY, BACK DOOR

main69350-32040iCV20,SV21,VZV21..WG198808-199106

69428PLATE, BACK DOOR LOCK BASE

main69410-32020iCV20,SV21,VZV21..WG198808-199106

69726PROTECTOR, BACK DOOR LOCK CONTROL

main69726-32010iCV20,SV21,VZV21..WG198808-199106

69790CONTROL ASSY, BACK DOOR LOCK

main69709-32020iCV20,SV21,VZV21..WG198808-199106

sub69709-32010

8401

8511

9010506097

main90105-06097

9010508147

main90105-08147

9011906236

main90119-06236

9015980014

main90159-80014

9017906070

main90179-06070

9017908096

main90179-08096

9165140612

main91651-40612

9331616012

main93316-16012

9356014012

main93560-14012

24 parts on this diagram · 1 diagram in section
