BACK DOOR PANEL & GLASS

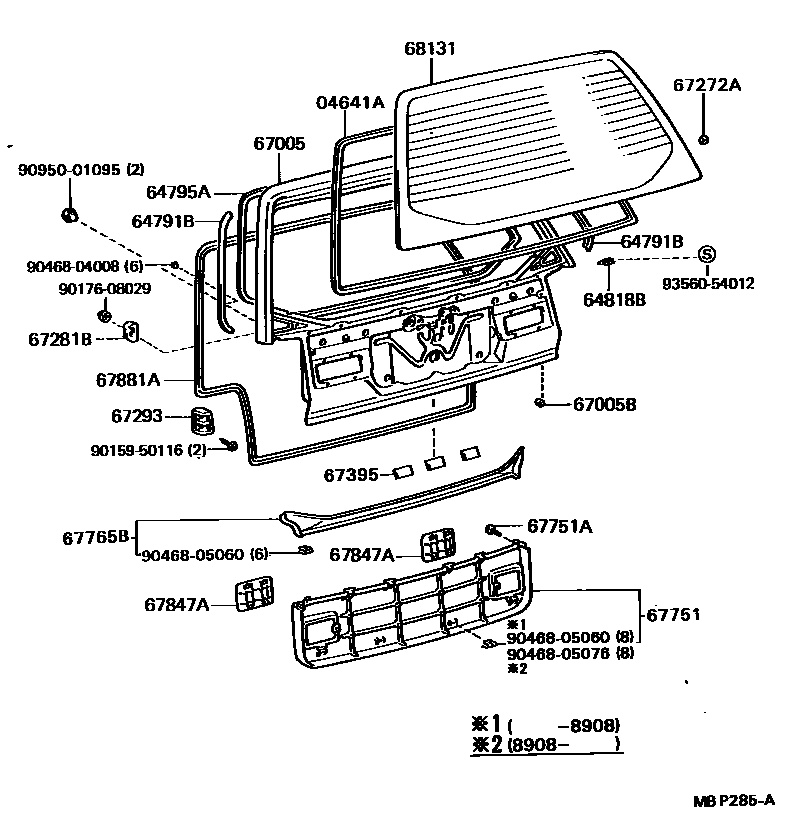

Parts diagram
04641ADAM KIT, BACK WINDOW GLASS ADHESIVE
main04562-30040i198808-199106
64791BCOVER, BACK DOOR TRIM
main64791-32010-03i198808-199106
MEDIUM GRAY,TRIM1#,RH
main64791-32010-04i198808-199106
DARK BLUE,TRIM8#,RH
main64791-32010-06i198808-199106
BROWN,TRIM4#,RH
main64792-32010-03i198808-199106
MEDIUM GRAY,TRIM1#,LH
main64792-32010-04i198808-199106
DARK BLUE,TRIM8#,LH
main64792-32010-06i198808-199106
BROWN,TRIM4#,LH
64795ATRIM, BACK WINDOW OPENING
main64795-32010-03i198808-199106
MEDIUM GRAY,TRIM1#
sub64795-32010
main64795-32010-04i198808-199106
DARK BLUE,TRIM8#
sub64795-32010
main64795-32010-06i198808-199106
BROWN,TRIM4#
sub64795-32010
64818BSPACER, BACK DOOR GLASS, NO.1
main64818-32010i198808-199106
67005PANEL SUB-ASSY, BACK DOOR
main67005-32160i198808-199106
SWITZERLAND SPEC
main67005-32170i198808-199106
67005BCUSHION(FOR BACK DOOR PANEL)
main90541-11003i198808-199106
67272ACUSHION, BACK DOOR STOPPER, NO.2
main67272-32010i198808-199106
67281BSTOPPER, BACK DOOR, LOWER
main67281-32020i198808-199106
67293CUSHION, BACK DOOR LOWER STOPPER
main67293-32020i198808-199106
RH
main67294-32020i198808-199106
LH
67395PROTECTOR, BACK DOOR, LOWER
main67395-32010i198808-199106
67751BOARD, BACK DOOR TRIM
main67750-32010-06i198808-199106
BROWN,TRIM4#
sub67750-32010
main67750-32010-13i198808-199106
MEDIUM GRAY,TRIM1#
sub67750-32010
main67750-32010-14i198808-199106
DARK BLUE,TRIM8#
sub67750-32010
main67750-32020-03i199004-199106
MEDIUM GRAY,TRIM1#
main67750-32020-04i199004-199106
DARK BLUE,TRIM8#
main67750-32020-06i199004-199106
BROWN,TRIM4#
main67751-32010-03i198808-199004
MEDIUM GRAY,TRIM1#
sub67750-32020
main67751-32010-04i198808-199004
DARK BLUE,TRIM8#
sub67750-32020
main67751-32010-06i198808-199004
BROWN,TRIM4#
sub67750-32020
67751ACLIP(FOR BACK DOOR TRIM BOARD)
main90467-06017-52i198808-199106
BROWN,TRIM4#
sub90467-06017
main90467-06017-53i198808-199106
GRAY,TRIM1#
sub90467-06017
main90467-06017-54i198808-199106
DARK BLUE,TRIM8#
sub90467-06017
67765BCOVER, BACK DOOR TRIM, UPPER
main67765-32010-03i198808-199106
MEDIUM GRAY,TRIM1#
sub67765-32010
main67765-32010-04i198808-199106
DARK BLUE,TRIM8#
sub67765-32010
main67765-32010-06i198808-199106
BROWN,TRIM4#
sub67765-32010
67847ACOVER, BACK DOOR SERVICE HOLE
main67805-32010-06i198808-199106
BROWN,TRIM4#,RH
sub67805-32010
main67805-32010-13i198808-199106
MEDIUM GRAY,TRIM1#,RH
sub67805-32010
main67805-32010-14i198808-199106
DARK BLUE,TRIM8#,RH
sub67805-32010
main67806-32010-06i198808-199106
BROWN,TRIM4#,LH
sub67806-32010
main67806-32010-13i198808-199106
MEDIUM GRAY,TRIM1#,LH
sub67806-32010
main67806-32010-14i198808-199106
DARK BLUE,TRIM8#,LH
sub67806-32010
main67847-32030-03i198808-199106
MEDIUM GRAY,TRIM1#,RH
sub67847-32030
main67847-32030-04i198808-199106
DARK BLUE,TRIM8#,RH
sub67847-32030
main67847-32030-06i198808-199106
BROWN,TRIM4#,RH
sub67847-32030
main67848-32030-03i198808-199106
MEDIUM GRAY,TRIM1#,LH
sub67848-32030
main67848-32030-04i198808-199106
DARK BLUE,TRIM8#,LH
sub67848-32030
main67848-32030-06i198808-199106
BROWN,TRIM4#,LH
sub67848-32030
67881AWEATHERSTRIP, BACK DOOR
main67881-32030i198808-199106
68131GLASS, BACK DOOR
main68131-32080i198808-199106
*EHTT,T=3.5
main68131-32090i198808-199106
*EHTT,T=3.5,COLD SPEC
9015950116
main90159-50116
9017608029
main90176-08029
9046804008
main90468-04008
9046805060
main90468-05060
9046805076
main90468-05076
9095001095
main90950-01095
9356054012
main93560-54012

23 parts on this diagram · 1 diagram in section
