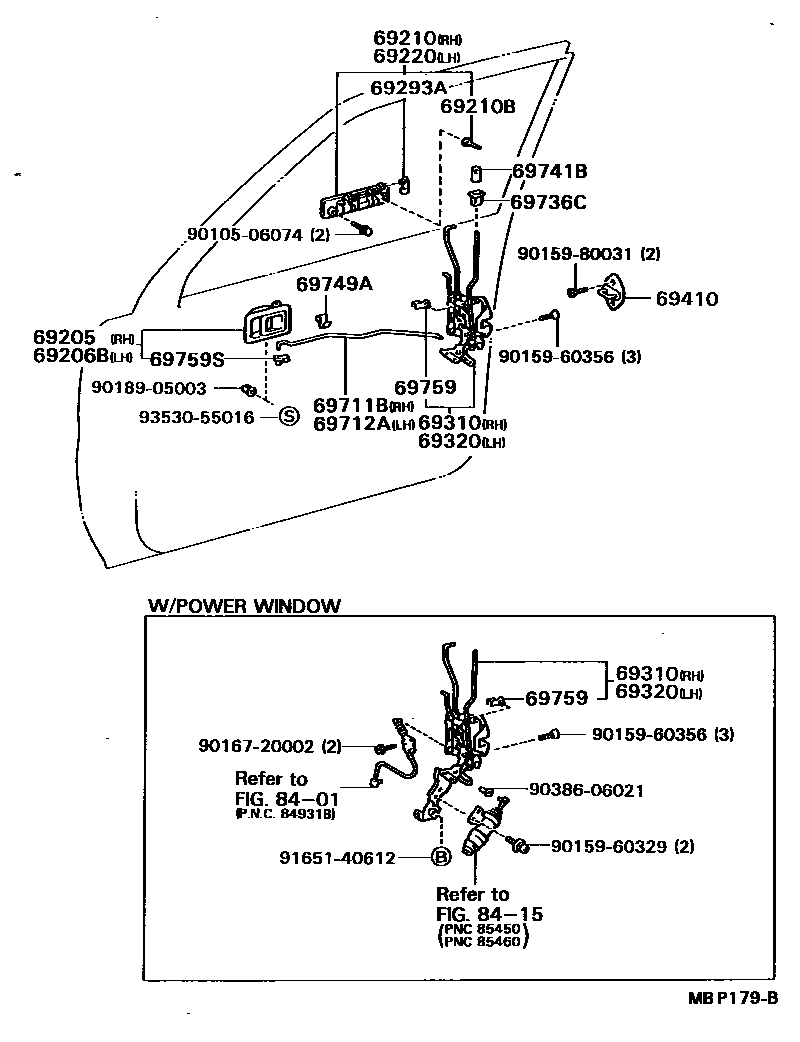

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-32020-03iCV20,SV21..XL,XLI198808-199106

MEDIUM GRAY,TRIM1#

sub69205-32020

main69205-32020-04iCV20,SV21..XL,XLI198808-199106

DARK BLUE,TRIM8#

sub69205-32020

main69205-32020-06iCV20,SV21..LHD..(XL,XLI)198808-199106

BROWN,TRIM4#

sub69205-32020

main69205-32030-03iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

MEDIUM GRAY,TRIM1#

sub69205-32030

main69205-32030-04iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

DARK BLUE,TRIM8#

sub69205-32030

main69205-32030-06iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

BROWN,TRIM4#

sub69205-32030

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-32020-03iCV20,SV21..XL,XLI198808-199106

MEDIUM GRAY,TRIM1#

sub69206-32020

main69206-32020-04iCV20,SV21..XL,XLI198808-199106

DARK BLUE,TRIM8#

sub69206-32020

main69206-32020-06iCV20,SV21..LHD..(XL,XLI)198808-199106

BROWN,TRIM4#

sub69206-32020

main69206-32030-03iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

MEDIUM GRAY,TRIM1#

sub69206-32030

main69206-32030-04iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

DARK BLUE,TRIM8#

sub69206-32030

main69206-32030-06iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

BROWN,TRIM4#

sub69206-32030

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32030iCV20,SV2#,VZV21198808-199106

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iCV20,SV2#,VZV21198808-199106

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32030iCV20,SV2#,VZV21198808-199106

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iCV20,SV2#,VZV21198808-199106

RH

main69293-12060iCV20,SV2#,VZV21198808-199106

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-32310iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-199106

W(POWER WINDOW)

main69310-32320iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

W(POWER WINDOW)

main69310-32360iCV20,SV21..XL,XLI198808-199106

69320LOCK ASSY, FRONT DOOR, LH

main69320-32310iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-199106

W(POWER WINDOW)

main69320-32320iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

W(POWER WINDOW)

main69320-32360iCV20,SV21..XL,XLI198808-199106

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iCV20,SV2#,VZV21198808-199106

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-32030iCV20,SV2#,VZV21198808-199106

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-32020iCV20,SV2#,VZV21198808-199106

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12030iCV20,SV2#,VZV21198808-199106

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-32020-03iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

sub69741-32020

main69741-32020-04iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

sub69741-32020

main69741-32020-06iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

sub69741-32020

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30020iCV20,SV2#,VZV21198808-199106

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050iCV20,SV2#,VZV21198808-199106

GREEN

main69759-24060iCV20,SV2#,VZV21198808-199106

GRAY

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iCV20,SV21..XL,XLI198808-199106

LH

main69759-24010iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

RH

main69759-24020iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

LH

main69759-24070iCV20,SV21..XL,XLI198808-199106

RH

8401

8415

9010506074

main90105-06074

9015960329

main90159-60329

9015960356

main90159-60356

9015980031

main90159-80031

9016720002

main90167-20002

9018905003

main90189-05003

9038606021

main90386-06021

9165140612

main91651-40612

9353055016

main93530-55016

27 parts on this diagram · 1 diagram in section
