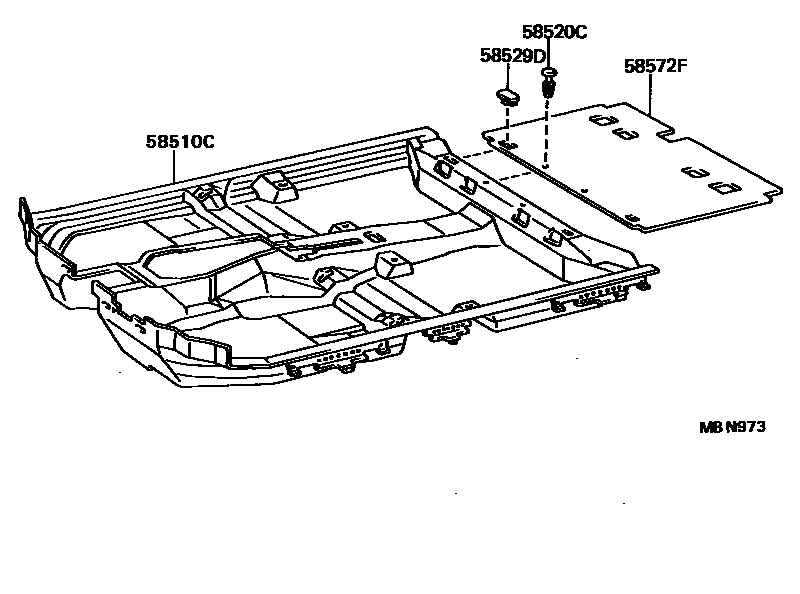

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-32130-03iCV20,SV21,VZV21..RHD..(GL,GLI,GXI)198808-199106

MEDIUM GRAY,TRIM1#

sub58510-32340

main58510-32130-04iCV20,SV21,VZV21..RHD..(GL,GLI,GXI)198808-199106

DARK BLUE,TRIM8#

sub58510-32340

main58510-32140-03iCV20..RHD..XL199008-199106

MEDIUM GRAY,TRIM1#

sub58510-32340

main58510-32140-04iCV20..RHD..XL198808-199106

DARK BLUE,TRIM8#

sub58510-32340

main58510-32150-03iCV20,SV21..LHD..5F..(XL,XLI)198808-199106

MEDIUM GRAY,TRIM1#

main58510-32150-04iCV20,SV21..LHD..5F..(XL,XLI)198808-199106

DARK BLUE,TRIM8#

main58510-32150-06iCV20,SV21..LHD..5F..(XL,XLI)198808-199106

BROWN,TRIM4#

main58510-32200-03iCV20,SV21,VZV21..LHD..5F..(GL,GLI,GXI)198808-199106

MEDIUM GRAY,TRIM1#

main58510-32200-04iCV20,SV21,VZV21..LHD..5F..(GL,GLI,GXI)198808-199106

DARK BLUE,TRIM8#

main58510-32200-06iCV20,SV21,VZV21..LHD..5F..(GL,GLI,GXI)198808-199106

BROWN,TRIM4#

main58510-32280-03iSV25..LHD198808-199105

MEDIUM GRAY,TRIM1#

sub58510-32300

main58510-32280-04iSV25..LHD198808-199105

DARK BLUE,TRIM8#

sub58510-32300

main58510-32280-06iSV25..LHD198808-199105

BROWN,TRIM4#

sub58510-32300

main58510-32290-03iSV25..RHD198808-199106

MEDIUM GRAY,TRIM1#

main58510-32290-04iSV25..RHD198808-199106

DARK BLUE,TRIM8#

main58510-32320-03iSV21,VZV21..LHD..4FC..(GLI,GXI)198808-199106

MEDIUM GRAY,TRIM1#

main58510-32320-04iSV21,VZV21..LHD..4FC..(GLI,GXI)198808-199106

DARK BLUE,TRIM8#

main58510-32320-06iSV21,VZV21..LHD..4FC..(GLI,GXI)198808-199106

BROWN,TRIM4#

main58510-32330-03iSV21..4FC..XLI198808-199106

MEDIUM GRAY,TRIM1#

main58510-32330-04iSV21..4FC..XLI198808-199106

DARK BLUE,TRIM8#

main58510-32330-06iSV21..4FC..XLI198808-199106

BROWN,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01×2iCV20,SV2#,VZV21..LHD198808-199106

BLACK,TRIM1#,8#

sub90467-07049

58529DHOOK, FLOOR CARPET, NO.3

main58529-32020-14×2iCV20,SV21,VZV21..WG198808-199106

DARK BLUE,TRIM8#

main58529-32020-16×2iCV20,SV21,VZV21..WG..LHD198808-199106

BROWN,TRIM4#

main58529-32020-23×2iSV21,VZV21..WG..(GLI,GXI)199008-199106

MEDIUM GRAY,TRIM1#

58572FCARPET, REAR FLOOR, FRONT

main58572-32020-03iCV20,SV21,VZV21..WG198808-199106

MEDIUM GRAY,MEDIUM GRAY,TRIM1#

main58572-32020-04iCV20,SV21,VZV21..WG198808-199106

DARK BLUE,DARK BLUE,TRIM8#

main58572-32020-06iCV20,SV21,VZV21..WG..LHD198808-199106

BROWN,TRIM4#

4 parts on this diagram · 1 diagram in section
