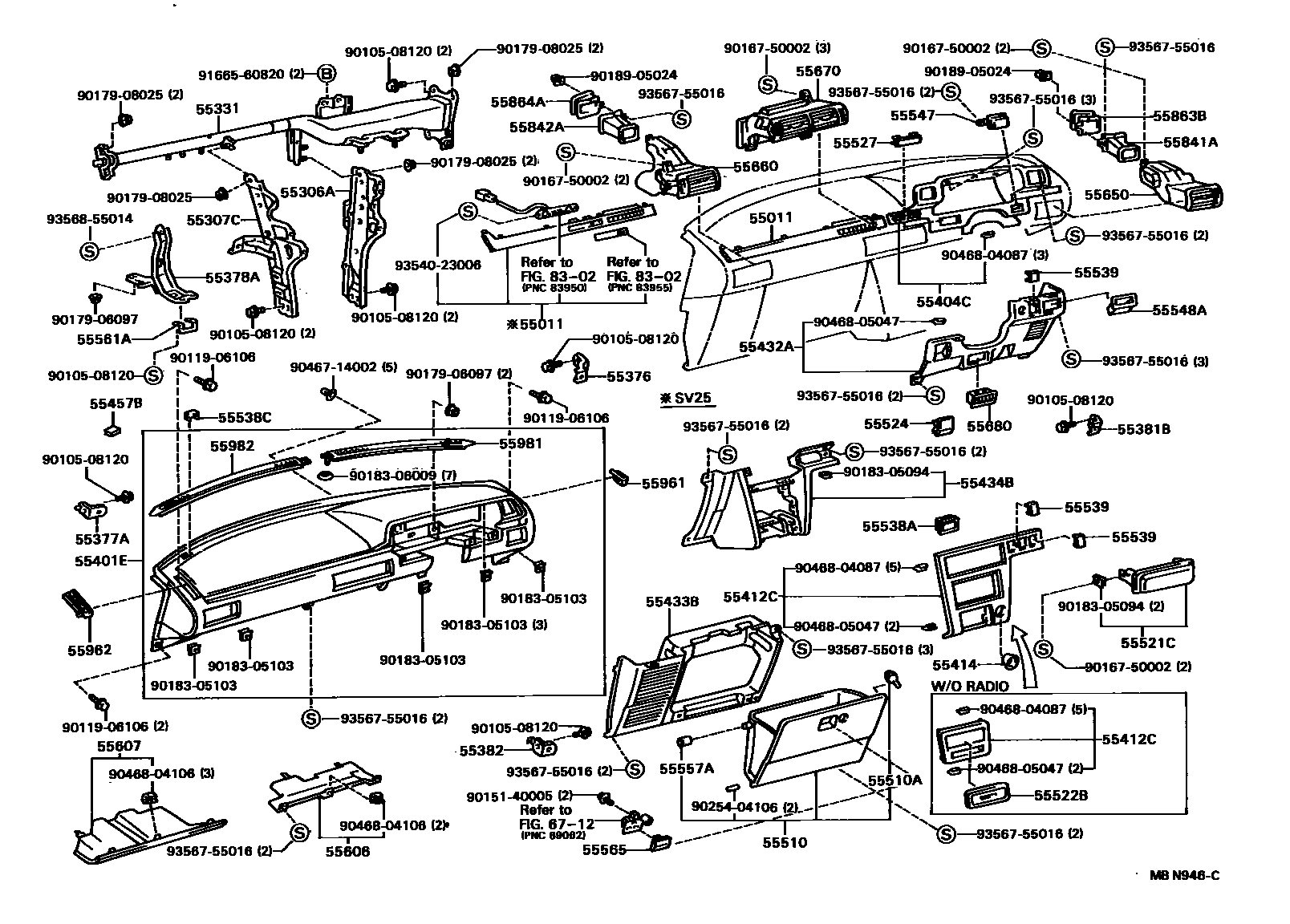

INSTRUMENT PANEL & GLOVE COMPARTMENT
55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
W(ANTI-LOCK BRAKE SYSTEM)
W(ANTI-LOCK BRAKE SYSTEM)
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55331REINFORCEMENT, INSTRUMENT PANEL
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55382BRACKET, FINISH PANEL MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
GRAY,TRIM1#
DARK BLUE,TRIM8#
GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
GRAY,TRIM1#
DARK BLUE,TRIM8#
GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1
W(RADIO)
W(RADIO)
55414BEZEL, CIGAR LIGHTER HOLE
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
55457BSPACER, INSTRUMENT PANEL SAFETY PAD
55510DOOR ASSY, GLOVE COMPARTMENT
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55521CCOVER, STEREO OPENING
55522BCOVER, RADIO TUNER OPENING
55524COVER, SWITCH BACE HOLE
BLACK,TRIM1#,8#
55527COVER, TRANSMISSION CONTROL SWITCH HOLE
BLACK,TRIM1#,4#,8#
55538ACOVER, COOLER SWITCH HOLE
55538CCOVER, COOLER SWITCH HOLE
GRAY,TRIM1#
DARK BLUE,TRIM8#
55539COVER, SPARE SWITCH HOLE
55547COVER, REMOTE CONTROL MIRROR HOLE
BLACK,TRIM8#
BLACK,TRIM1#,4#,8#
55548ACOVER, INSTRUMENT PANEL HOLE
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM1#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM1#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
DAEK BLUE,TRIM8#
BROWN,TRIM4#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55841ADUCT, COWL TO REGISTER, NO.1
55842ADUCT, COWL TO REGISTER, NO.2
55863BBOOT, SIDE VENTILATOR DUCT, NO.1
55864ABOOT, SIDE VENTILATOR DUCT, NO.2
55961NOZZLE, SIDE DEFROSTER, NO.1
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
main55981-32040-03iCV20,SV21..WG..LHD;SV21..SED..LHD..GLI;CV20,SV25,VZV21..LHD..(GL,GLI,GXI)198808-199008
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
main55981-32040-06iCV20,SV21..WG..LHD;SV21..SED..LHD..GLI;CV20,SV25,VZV21..LHD..(GL,GLI,GXI)198808-199008
BROWN,TRIM4#
55982GARNISH, DEFROSTER NOZZLE, NO.2
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
main55982-32040-03iCV20,SV21..WG..LHD;SV21..SED..LHD..GLI;CV20,SV25,VZV21..LHD..(GL,GLI,GXI)198808-199008
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
main55982-32040-06iCV20,SV21..WG..LHD;SV21..SED..LHD..GLI;CV20,SV25,VZV21..LHD..(GL,GLI,GXI)198808-199008
BROWN,TRIM4#
6712
8302
9010508120
main90105-08120
9011906106
main90119-06106
9015140005
main90151-40005
9016750002
main90167-50002
9017906097
main90179-06097
9017908025
main90179-08025
9018305094
main90183-05094
9018305103
main90183-05103
9018306009
main90183-06009
9018905024
main90189-05024
9025404106
main90254-04106
9046714002
main90467-14002
9046804087
main90468-04087
9046804106
main90468-04106
9046805047
main90468-05047
9166560820
main91665-60820
9354023006
main93540-23006
9356755016
main93567-55016
9356855014
main93568-55014
66 parts on this diagram · 2 diagrams in section
