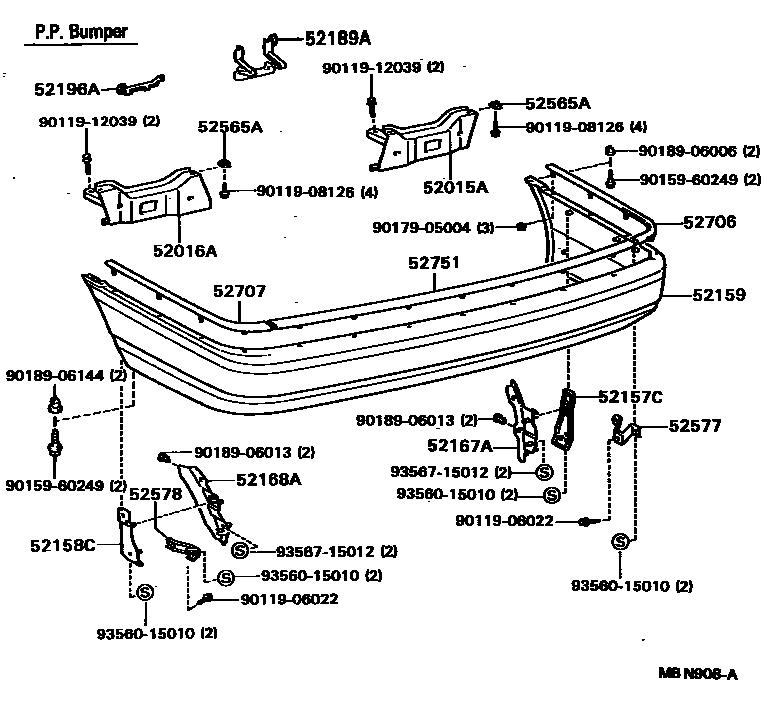

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-32070iCV20,SV21..SED..(XL,XLI)¥4,820198808-199106

main52015-32090iCV20,SV21..WG..(XL,XLI)¥5,400198808-199106

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-32010iCV20,SV21..SED..(XL,XLI)¥4,820198808-199106

main52016-32020iCV20,SV21..WG..(XL,XLI)¥5,400198808-199106

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-32050iCV20,SV21,VZV21..SED..(GL,GLI,GXI)¥1,470198808-199106

W(URETHANE BUMPER)

main52157-32060iCV20,SV21..SED..(XL,XLI)¥660198808-199106

main52157-32070iCV20,SV21..WG..(XL,XLI)¥660198808-199106

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-32030iCV20,SV21,VZV21..SED..(GL,GLI,GXI)¥1,470198808-199106

W(URETHANE BUMPER)

main52158-32040iCV20,SV21..SED..(XL,XLI)¥660198808-199106

main52158-32050iCV20,SV21..WG..(XL,XLI)¥660198808-199106

52159COVER, REAR BUMPER

main52159-32170iCV20,SV21..SED..(XL,XLI)¥26,100198808-199106

main52159-32200iCV20,SV21..WG..(XL,XLI)¥26,100198808-199106

main52159-32909iCV20,SV2#,VZV21..SED..(GL,GLI,GXI)¥38,400198808-199106

W(URETHANE BUMPER)

main52159-32912iSV21,VZV21..WG..(GLI,GXI)¥47,100198808-199106

W(URETHANE BUMPER)

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-32020iCV20,SV2#,VZV21..SED¥1,360198808-199106

main52167-32030iCV20,SV21..WG..(XL,XLI)¥1,360198808-199106

main52167-32040iSV21,VZV21..WG..(GLI,GXI)¥1,970198808-199106

W(URETHANE BUMPER)

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52168-32020iCV20,SV2#,VZV21..SED¥1,360198808-199106

main52168-32030iCV20,SV21..WG..(XL,XLI)¥1,360198808-199106

main52168-32040iSV21,VZV21..WG..(GLI,GXI)¥1,970198808-199106

W(URETHANE BUMPER)

52189APROTECTOR, REAR BUMPER ARM EDGE, RH

main52189-32010iCV20,SV2#,VZV21..SED¥400198808-199106

52196APROTECTOR, REAR BUMPER ARM EDGE, LH

main52196-32030iCV20,SV21,VZV21..SED¥190198808-199106

main52196-32040iSV25¥230198808-199106

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040iCV20,SV21..XL,XLI¥270198808-199106

main52565-32030iSV21,VZV21..WG..(GLI,GXI)¥2,400198808-199106

W(URETHANE BUMPER)

main52565-32040iCV20,SV2#,VZV21..SED..(GL,GLI,GXI)¥2,400198808-199106

W(URETHANE BUMPER)

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-32040iCV20,SV21..XL,XLI¥630198808-199106

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-32040iCV20,SV21..XL,XLI¥630198808-199106

52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-32030iCV20,SV2#,VZV21..SED..(GL,GLI,GXI)¥3,480198808-199106

W(URETHANE BUMPER)

main52706-32040iCV20,SV21..XL,XLI¥3,450198808-199106

52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-32030iCV20,SV2#,VZV21..SED..(GL,GLI,GXI)¥3,480198808-199106

W(URETHANE BUMPER)

main52707-32040iCV20,SV21..XL,XLI¥3,450198808-199106

52751MOULDING, REAR BUMPER

main52751-32030iCV20,SV2#,VZV21..SED..(GL,GLI,GXI)¥6,200198808-199106

W(URETHANE BUMPER)

main52751-32040iCV20,SV21..XL,XLI¥7,400198808-199106

9011906022

main90119-06022¥130

9011908126

main90119-08126¥200

9011912039

main90119-12039¥310

9015960249

main90159-60249¥120

9017905004

main90179-05004¥130

9018906006

main90189-06006¥100

9018906013

main90189-06013¥70

9018906144

main90189-06144¥160

9356015010

main93560-15010¥80

9356715012

main93567-15012¥120

25 parts on this diagram · 4 diagrams in section
