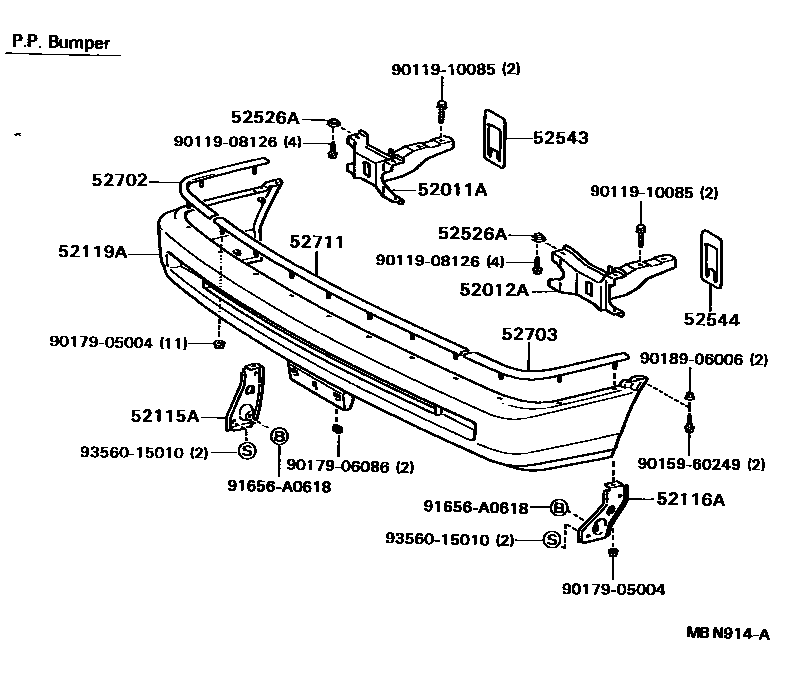

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-32070iCV20,SV21..XL,XLI198808-199106

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-32050iCV20,SV21..XL,XLI198808-199106

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-32030iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(URETHANE BUMPER)

main52115-32040iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-32030iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(URETHANE BUMPER)

main52116-32040iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

52119ACOVER, FRONT BUMPER

main52119-32230iCV20,SV21..XL,XLI198808-199106

main52119-32250iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

main52119-32905iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

FOR COLORED BUMPER & W(URETHANE BUMPER)

main52119-32906iCV20,SV2#,VZV21198808-199106

W(HEADLAMP CLEANER & COLORED URETHANE BUMPER)

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-32050iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(URETHANE BUMPER)

main52565-12040×8iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

52543SEAL, FRONT BUMPER SIDE, RH

main52543-32020iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(URETHANE BUMPER)

main52543-32030iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

52544SEAL, FRONT BUMPER SIDE, LH

main52543-32020iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(URETHANE BUMPER)

main52543-32030iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

52702MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH

main52702-32030iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(URETHANE BUMPER)

main52702-32040iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

52703MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH

main52703-32030iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(URETHANE BUMPER)

main52703-32040iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

52711MOULDING, FRONT BUMPER

main52711-32030iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

W(URETHANE BUMPER)

main52711-32040iCV20,SV21..XL,XLI198808-199106

W(HEADLAMP CLEANER & P.P. BUMPER)

9011908126

main90119-08126

9011910085

main90119-10085

9015960249

main90159-60249

9017905004

main90179-05004

9017906086

main90179-06086

9018906006

main90189-06006

91656A0618

main91656-A0618

9356015010

main93560-15010

19 parts on this diagram · 2 diagrams in section
