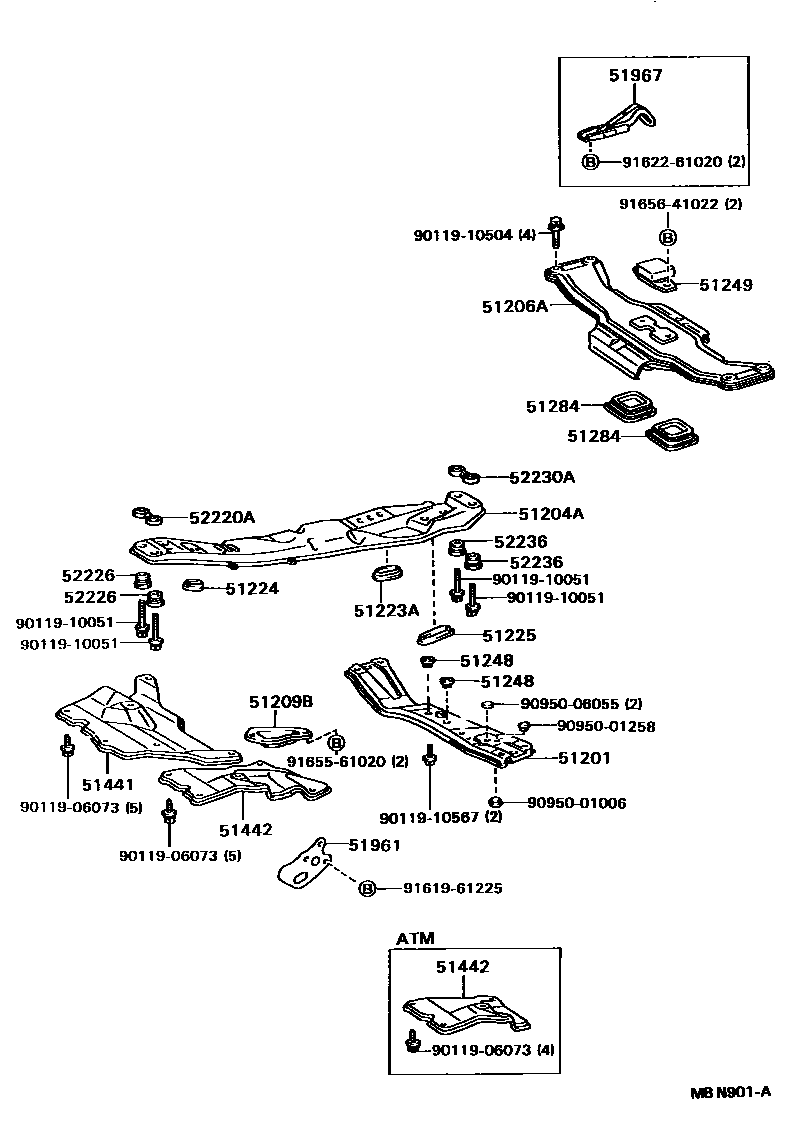

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32020iCV20,SV21,VZV21198808-199106

main51201-32030iSV25198808-199106

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32021iCV20,SV21,VZV21198808-198904

sub51204-32022

main51204-32022iCV20,SV21,VZV21198904-199002

sub51204-32024

sub90119-10567

main51204-32024iCV20,SV21,VZV21199002-199106

main51204-32041iSV25198808-199106

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20011iSV25198808-199106

main51206-32010iCV20,SV21,VZV21198808-199106

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-32030iSV25198808-199106

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32020iCV20,SV2#,VZV21198808-199106

51224COVER, ENGINE MOUNTING HOLE, NO.2

main51224-32010iCV20,SV21,VZV21198808-199106

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-32010iCV20,SV21,VZV21198808-199106

main51225-32020iSV25198808-199106

51248SPACER, FLAME CROSSMEMBER

main51248-32010iCV20,SV21,VZV21198808-199004

51249DAMPER, REAR SUSPENSION MEMBER

main51249-32010iCV20,SV21,VZV21198808-199106

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-32010iCV20,SV21,VZV21198808-199106

51441COVER, ENGINE UNDER, NO.1

main51441-32030iCV20,SV2#,VZV21198808-199106

51442COVER, ENGINE UNDER, NO.2

main51442-32030iCV20,SV2#,VZV21..5F198808-199106

main51442-32040iSV21,VZV21..4FC198808-199106

51961HOOK, NO.1

main51963-32020iCV20,SV2#,VZV21198808-199106

51967HOOK, TRANSPORT, REAR

main51095-32020iCV20,SV21..SED..(XL,XLI)198808-199106

RH

main51095-32030iCV20,SV21..WG..(XL,XLI)198808-199106

RH

main51096-32020iCV20,SV21..WG..(XL,XLI)198808-199106

LH

main51968-32010iCV20,SV21,VZV21..SED198808-199106

LH

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-32040iSV25198808-199106

main52220-32050iCV20,SV21,VZV21198808-199106

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-32010iSV25198808-199106

main52226-32030iCV20,SV21,VZV21198808-199106

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-32030iSV25198808-199106

main52230-32040iCV20,SV21,VZV21198808-199106

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-32020iSV25198808-199106

main52236-32030iCV20,SV21,VZV21198808-199106

9011906073

main90119-06073

9011910051

main90119-10051

9011910504

main90119-10504

9011910567

main90119-10567

9095001006

main90950-01006

9095001258

main90950-01258

9095006055

main90950-06055

9161961225

main91619-61225

9162261020

main91622-61020

9165561020

main91655-61020

9165641022

main91656-41022

29 parts on this diagram · 2 diagrams in section
