FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-32041iSV21..XLI..G198808-199106

W(*66 & POWER STEERING)

main43211-32041iSV2#,VZV21..GLI,GXI198808-199106

W(*66)

main43211-32060iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

main43211-32070iSV21..XLI198808-199106

43211BBOLT (FOR ABSORBER SETTING)

main90105-17001iCV20,SV2#,VZV21198808-199106

main90105-17003iCV20,SV2#,VZV21199008-199106

130G

main90105-17004iCV20,SV2#,VZV21199008-199106

124G

main90105-17005iCV20,SV2#,VZV21199008-199106

119G

43211CNUT (FOR ABSORBER SETTING)

main90179-17001iCV20,SV2#,VZV21198808-199106

43212KNUCKLE, STEERING, LH

main43212-32041iSV21..XLI198808-199106

W(*66 & POWER STEERING)

main43212-32041iSV2#,VZV21..GLI,GXI198808-199106

W(*66)

main43212-32060iSV21..XLI198808-199106

W(POWER STEERING)

main43212-32070iSV21..XLI198808-199106

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39135iCV20,SV2#,VZV21198808-199106

sub43330-39275

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14002iCV20,SV2#,VZV21198808-199106

43345COVER, LOWER BALL JOINT DUST

main43345-32010iCV20,SV2#,VZV21198808-199106

43345CWIRE (FOR LOWER BALL JOINT DUST COVER)

main90580-10002iCV20,SV2#,VZV21198808-199106

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48620-32040iCV20,SV2#,VZV21198808-199106

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12142iCV20,SV2#,VZV21198808-199106

48068BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)

main90948-02088iCV20,SV2#,VZV21198808-199106

RR

main90948-02103iCV20,SV2#,VZV21198808-199106

FR

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-16004iCV20,SV2#,VZV21198808-199106

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48640-32040iCV20,SV2#,VZV21198808-199106

48641SHAFT, LOWER ARM, RH

main48641-32010iCV20,SV2#,VZV21198808-199106

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14007iCV20,SV2#,VZV21198808-199006

main90179-14043iCV20,SV2#,VZV21199006-199106

sub90179-14068

48641BBOLT(FOR SUSPENSION LOWER ARM SHAFT)

main90105-14049iCV20,SV2#,VZV21198808-199006

*14-1.50PX63-36

main90105-14056iCV20,SV2#,VZV21198808-199006

*14-1.50PX70-41

main90105-14078iCV20,SV2#,VZV21199006-199106

*14-1.50PX63-25

main90105-14079iCV20,SV2#,VZV21199006-199106

*14-1.50PX70-30

48643SHAFT, LOWER ARM, LH

main48643-32010iCV20,SV2#,VZV21198808-199106

48674HCUSHION, STRUT BAR

main48674-32090iCV20,SV2#,VZV21198808-199106

9025203001

main90252-03001

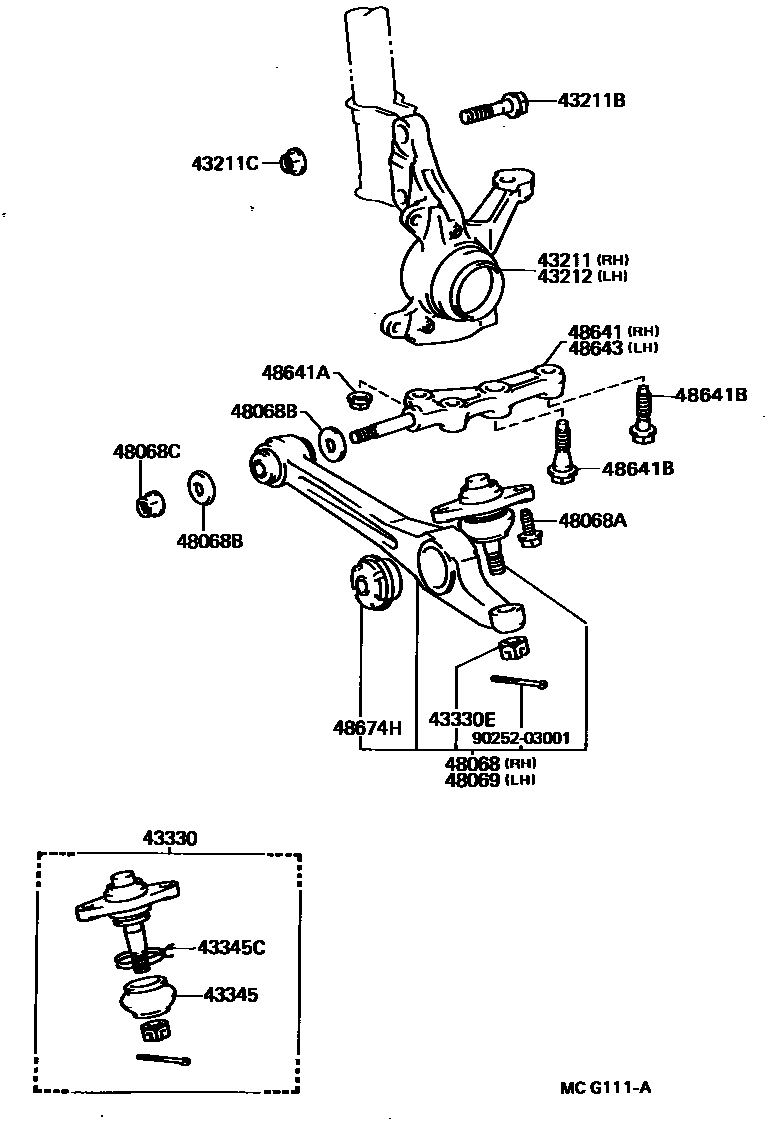

19 parts on this diagram · 1 diagram in section
