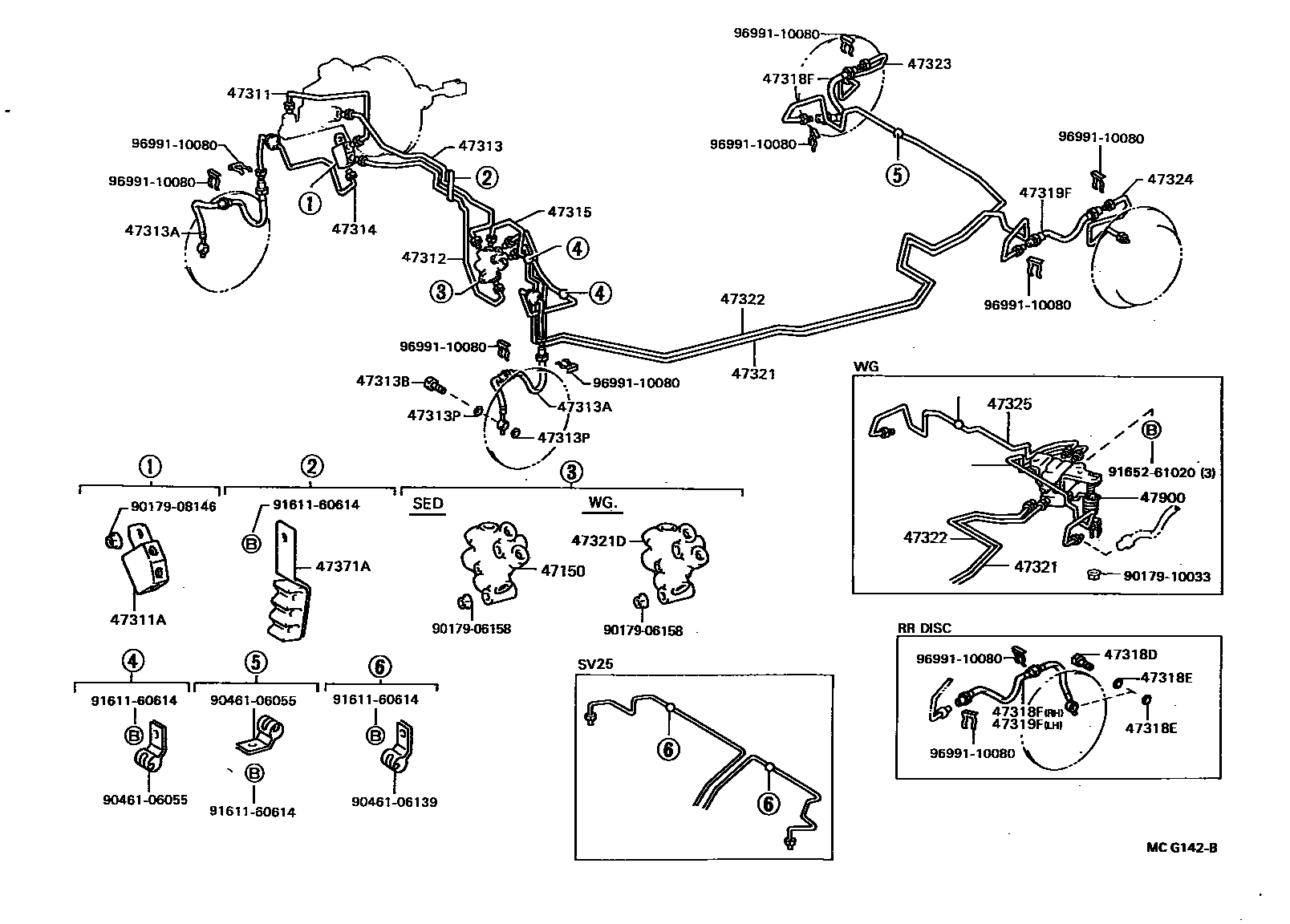

BRAKE TUBE & CLAMP

0001 1 0002 1W(ANTI-LOCK BRAKE SYSTEM) 0003 1 0004 1W(ANTI-LOCK BRAKE SYSTEM) 0005 1

47150VALVE ASSY, PROPORTIONING

main47150-16040iCV20,SV21,VZV21..SED¥16,800198808-199106

sub47150-12260¥13,500

main47150-20130iSV21..SED..RHD..4FC¥14,100198808-199106

HONG KONG SPEC

sub47150-12240¥16,800

main47150-20160iSV25¥16,700198808-199106

main47150-32070iSV25¥16,700198808-199106

W(*66)

47311TUBE, FRONT BRAKE, NO.1

main47311-32060iCV20,SV2#,VZV21..LHD¥410198808-199106

main47311-32080iCV20,SV2#,VZV21..RHD¥600198808-199106

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10147iSV2#,VZV21..LHD¥1,000198808-199106

W(*66)

main90413-10165iCV20,SV2#,VZV21..LHD¥1,240198808-199106

main90413-10193iCV20,SV2#,VZV21..RHD¥990198808-199106

47312TUBE, FRONT BRAKE, NO.2

main47312-32080iCV20..RHD¥1,120198808-199106

main47312-32101iSV2#,VZV21..LHD¥1,340198808-199106

main47312-32110iCV20..LHD¥1,120198808-199106

main47312-32130iSV2#,VZV21..RHD¥1,340198808-199106

47313TUBE, FRONT BRAKE, NO.3

main47313-32070iCV20..RHD¥1,120198808-199106

main47313-32090iSV2#,VZV21..LHD¥1,120198808-199106

main47313-32100iCV20..LHD¥1,120198808-199106

main47313-32120iSV2#,VZV21..RHD¥1,120198808-199106

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02496iCV20..RHD;SV2#,VZV21¥2,650198808-199106

sub90947-02987

main90947-02540iCV20,SV2#,VZV21¥2,630198908-198911

sub90947-02987

main90947-02540iSV2#,VZV21¥2,630198808-199106

W(*66)

sub90947-02987

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iCV20,SV2#,VZV21¥200198808-199106

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iCV20,SV2#,VZV21¥100198808-199106

47314TUBE, FRONT BRAKE, NO.4

main47314-32070iCV20..RHD¥1,000198808-199106

main47314-32080iSV2#,VZV21..RHD¥1,000198808-199106

main47314-32091iSV2#,VZV21..LHD¥1,830198808-199106

main47314-32100iCV20..LHD¥1,680198808-199106

47315TUBE, FRONT BRAKE, NO.5

main47315-32060iCV20,SV2#,VZV21..RHD¥1,120198808-199106

main47315-32070iCV20,SV2#,VZV21..LHD¥1,120198808-199106

main47315-32080iSV2#,VZV21..RHD¥1,490198808-199106

W(*66)

main47315-32100iSV2#,VZV21..LHD¥1,120198808-199106

W(*66)

47318TUBE, FRONT BRAKE, NO.8

main47318-32010iSV2#,VZV21¥1,680198808-199106

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iSV2#,VZV21¥200198808-199106

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iSV2#,VZV21¥100198808-199106

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02497iCV20,SV21¥1,960198808-199106

main90947-02498iVZV21¥2,870198808-199106

W(*66)

main90947-02549iSV25¥2,470198808-199106

sub90947-02939

47319TUBE, FRONT BRAKE, NO.9

main47319-32010iSV2#,VZV21..RHD¥2,060198808-199106

main47319-32020iSV2#,VZV21..LHD¥1,120198808-199106

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02497iCV20,SV21¥1,960198808-199106

main90947-02498iVZV21¥2,870198808-199106

W(*66)

main90947-02549iSV25¥2,470198808-199106

sub90947-02939

47321TUBE, REAR BRAKE, NO.1

main47321-32060iCV20,SV21,VZV21..WG¥4,540198808-199106

W(*66)

main47321-32100iSV25¥4,810198808-199106

main47321-32110iCV20,SV21,VZV21..SED¥5,700198808-199106

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10205iCV20,SV21,VZV21..WG¥1,440198808-199106

47322TUBE, REAR BRAKE, NO.2

main47322-32050iCV20,SV21,VZV21..WG¥4,050198808-199106

W(*66)

main47322-32090iSV25¥4,650198808-199106

main47322-32100iCV20,SV21,VZV21..SED¥4,430198808-199106

47323TUBE, REAR BRAKE, NO.3

main47323-32030iSV25,VZV21..RHD¥2,190198808-199106

W(*66)

main47323-32040iCV20,SV21..SED¥590198808-199106

main47323-32050iCV20,SV21..WG¥600198808-199106

main47323-32070iSV25,VZV21..LHD¥4,440198808-199106

W(*66)

47324TUBE, REAR BRAKE, NO.4

main47324-32030iSV25,VZV21..RHD¥2,560198808-199106

W(*66)

main47324-32040iCV20,SV21..SED¥590198808-199106

main47324-32050iCV20,SV21..WG¥600198808-199106

main47324-32070iSV25,VZV21..LHD¥5,100198808-199106

W(*66)

47325TUBE, REAR BRAKE, NO.5

main47325-32030iCV20..WG;SV21,VZV21¥1,680198808-199106

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30010iSV2#,VZV21..LHD¥880198808-199106

W(*66)

main47371-32010iCV20,SV2#,VZV21..RHD¥670198808-199106

main47371-32020iSV2#,VZV21..RHD¥600198808-199106

W(*66)

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-32030iSV21,VZV21..SED198808-199106

W(*66)

main47900-32040iCV20,SV21,VZV21..WG198808-199106

9017906158

main90179-06158¥70

9017908146

main90179-08146¥180

9017910033

main90179-10033¥130

9046106055

main90461-06055¥220

9046106139

main90461-06139¥620

9161160614

main91611-60614¥180

9165261020

main91652-61020¥180

9699110080

main96991-10080¥100

32 parts on this diagram · 5 diagrams in section
