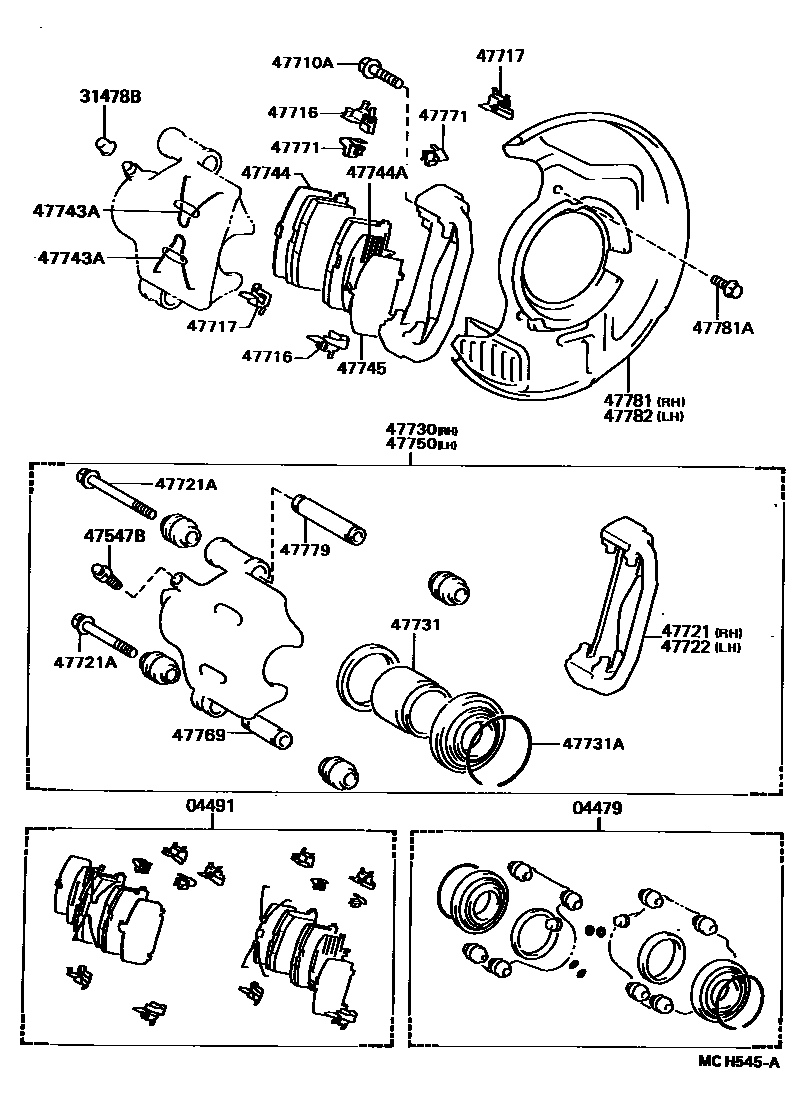

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-32030iCV20,SV2#,VZV21¥2,940198808-199106

04491PAD KIT, DISC BRAKE, FRONT

main04491-20390iCV20,SV2#,VZV21¥11,700198808-198812

sub04491-20391¥11,300

main04491-20391iCV20,SV2#,VZV21¥11,300198812-198908

sub04465-20150¥10,500

main04491-32131iSV21..SED..RHD..4FC198808-198812

HONG KONG SPEC

sub04491-32132¥11,300

sub04491-32291

main04491-32132iSV21..SED..RHD..4FC¥11,300198812-199106

HONG KONG SPEC

sub04465-32091¥10,500

main04491-32340iCV20..LHD¥11,900198808-198908

FINLAND SPEC OR NORWAY SPEC

sub04491-32341¥11,900

main04491-32340iSV2#..LHD..EUR¥11,900198808-198908

FINLAND SPEC

sub04491-32341¥11,900

main04491-32340iSV2#..LHD..EUR¥11,900198808-198908

SWEDEN SPEC OR NORWAY SPEC

sub04491-32341¥11,900

main04491-32340iSV2#..LHD..EUR¥11,900198808-198908

SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC

sub04491-32341¥11,900

main04491-32340iCV20,SV2#,VZV21¥11,900198908-199009

sub04491-32341¥11,900

main04491-32341iCV20,SV2#,VZV21¥11,900199009-199106

sub04465-20170¥10,500

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCV20,SV2#,VZV21¥160198808-199106

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCV20,SV2#,VZV21¥200198808-199106

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iCV20,SV2#,VZV21¥260198808-199106

*12-1.25PX25.5-23

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32040iCV20,SV2#,VZV21¥410198808-198812

sub47716-32041¥390

main47716-32041iCV20,SV2#,VZV21¥390198812-199106

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32040iCV20,SV2#,VZV21¥410198808-198812

sub47717-32041¥390

main47717-32041iCV20,SV2#,VZV21¥390198812-199106

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20140iCV20,SV2#,VZV21¥7,200198808-199106

main47721-32060iSV21..SED..RHD..4FC¥6,800198808-199106

HONG KONG SPEC

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iCV20,SV2#,VZV21¥180198808-199106

*10-1.25PX65.5-30

main90119-10249iCV20,SV2#,VZV21¥360198808-199106

*10-1.25PX95.5-30

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20140iCV20,SV2#,VZV21¥7,200198808-199106

main47721-32060iSV21..SED..RHD..4FC¥6,800198808-199106

HONG KONG SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20240iCV20,SV2#,VZV21¥46,200198808-199106

main47730-32070iSV21..SED..RHD..4FC¥45,700198808-199106

HONG KONG SPEC

47731PISTON, FRONT DISC BRAKE

main47731-32040iCV20,SV2#,VZV21¥2,970198808-199106

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iCV20,SV2#,VZV21¥160198808-199106

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32020iSV21..SED..RHD..4FC¥170198808-199106

HONG KONG SPEC

main47743-32030iCV20,SV2#,VZV21¥300198808-199106

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32041iCV20,SV2#,VZV21¥260198808-199106

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32022iSV21..SED..RHD..4FC¥260198908-199106

HONG KONG SPEC

main47742-32022iCV20,SV2#,VZV21¥260198812-198908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-32041iCV20..LHD¥260198808-199106

main47745-32021iSV21..SED..RHD..4FC¥260198908-199106

HONG KONG SPEC

main47745-32021iCV20,SV2#,VZV21¥260198812-198908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20230iCV20,SV2#,VZV21¥46,200198808-199106

main47750-32070iSV21..SED..RHD..4FC¥45,700198808-199106

HONG KONG SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iCV20,SV2#,VZV21¥470198808-199106

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050iSV2#..G¥250198808-199106

main47771-32010iSV21..SED..RHD..4FC¥250198808-199106

HONG KONG SPEC

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iCV20,SV2#,VZV21¥670198808-199106

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-32011iCV20,SV2#,VZV21¥2,000198808-198901

sub47703-32040¥1,970

main47703-32020iSV2#,VZV21¥2,000198808-198901

W(*66)

sub47703-32021¥1,980

main47703-32021iSV2#,VZV21¥1,980198901-199106

W(*66)

main47703-32040iCV20,SV2#,VZV21¥1,970198901-199106

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iCV20,SV2#,VZV21¥90198808-199106

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-32011iCV20,SV2#,VZV21¥2,000198808-198901

sub47704-32040¥1,970

main47704-32020iSV2#,VZV21¥2,000198808-198901

W(*66)

sub47704-32021¥1,980

main47704-32021iSV2#,VZV21¥1,980198901-199106

W(*66)

main47704-32040iCV20,SV2#,VZV21¥1,970198901-199106

24 parts on this diagram · 2 diagrams in section
