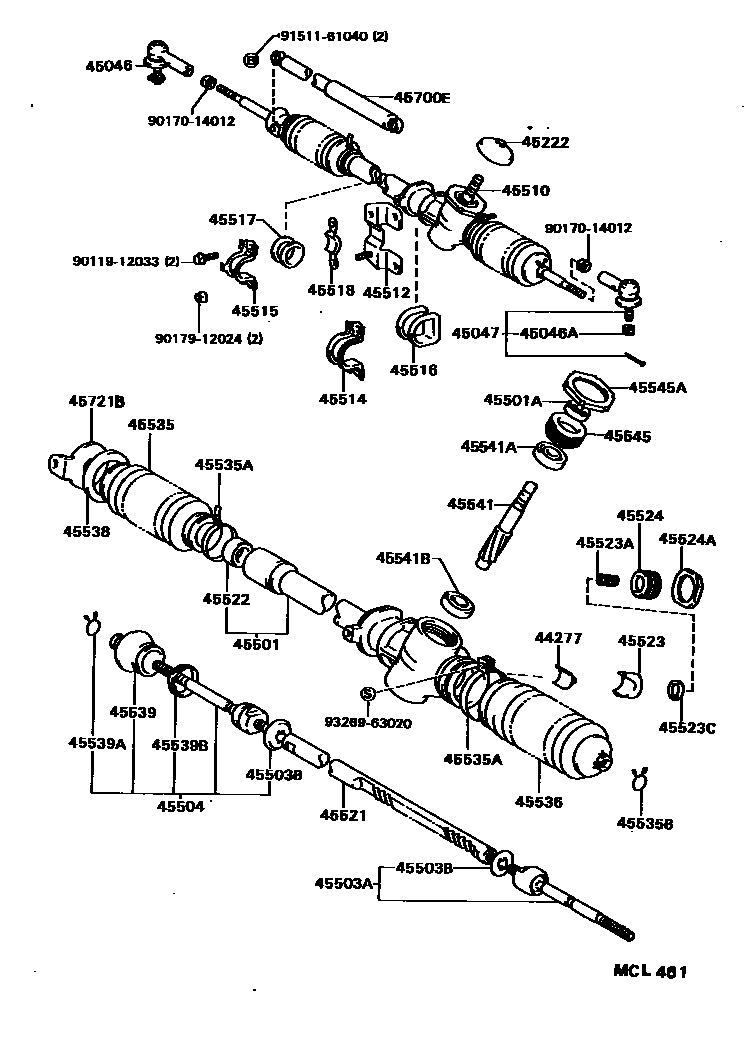

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1W(POWER STEERING) 0005 1

44277SEAT, RACK GUIDE

main44277-20030iSV21..XLI198808-199106

main44277-24010iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iCV20,SV2#,VZV21198808-199106

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCV20,SV2#,VZV21198808-199106

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iCV20,SV2#,VZV21198808-199106

45222COVER, STEERING GEAR DUST

main45222-20010iSV21..XLI198808-199106

main45222-32010iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

45501HOUSING SUB-ASSY, STEERING RACK

main45501-32070iSV21..XLI198808-199106

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iSV21..XLI198808-198905

sub90311-15002

main90311-15002iSV21..XLI198905-199106

45503END SUB-ASSY, STEERING RACK

main45503-39025iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

45503AEND SUB-ASSY, STEERING RACK, NO.1

main45503-29105iSV21..XLI198808-199106

sub45503-39025

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14002iSV21..XLI198808-199106

OD=37,END NO.1

main90214-14002iSV21..XLI198808-199106

OD=37

main90214-14004iSV21..XLI198808-199106

END NO.2

45504END SUB-ASSY, STEERING RACK, NO.2

main45504-39015iSV21..XLI198808-199106

45510GEAR ASSY, STEERING

main45510-32070iSV21..XLI198808-199106

45512ADAPTER, STEERING RACK HOUSING

main45512-32020iSV21..XLI198808-199106

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-32060iSV21..XLI198808-199106

main45514-32090iSV21..XLI198808-199007

W(POWER STEERING)

main45514-32091iSV21..XLI199007-199009

W(POWER STEERING)

sub45514-32092

main45514-32092iCV20,SV2#,VZV21..GL,GLI,GXI,XL199009-199106

W(POWER STEERING)

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-32070iSV21..XLI198808-199106

main45515-32080iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-32020iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199007

W(POWER STEERING)

main45516-32030iSV21..XLI198808-199106

main45516-32040iCV20,SV2#,VZV21..GL,GLI,GXI,XL199007-199106

W(POWER STEERING)

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-32020iSV21..XLI198808-199106

main45517-32030iSV21..XLI198808-199005

W(POWER STEERING)

main45517-32050iSV21..XLI199005-199007

W(POWER STEERING)

main45517-32060iCV20,SV2#,VZV21..GL,GLI,GXI,XL199007-199106

W(POWER STEERING)

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-32040iSV21..XLI198808-199106

45521RACK, STEERING

main45521-32061iSV21..XLI198808-199106

45522BUSH, STEERING RACK

main45522-22011iSV21..XLI198808-199106

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-22020iSV21..XLI198808-199106

main45523-24010iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

sub45523-20040

sub44277-20040

sub45524-50010

sub90501-23007

sub90501-29036

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23023iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

sub90501-29016

main90501-32023iSV21..XLI198808-199106

45523CSPACER(FOR RACK GUIDE)

main90560-23007iSV21..XLI198808-199106

45524CAP, STEERING RACK GUIDE SPRING

main45524-16010iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

main45524-22010iSV21..XLI198808-199106

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iCV20,SV2#,VZV21198808-199106

45535BOOT, STEERING RACK, NO.1

main45535-20050iSV21..XLI198808-199106

W(POWER STEERING)

main45535-32050iSV21..XLI198905-199106

main45535-32060iSV21..XLI198808-198905

sub45535-32050

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10524iSV21..XLI198808-199106

BOOT NO.2

main90461-10709iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

BOOT NO.2

main90461-10709iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING),BOOT NO.2

main90949-01021iSV21..XLI198808-199106

BOOT NO.1

main90949-01082iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

BOOT NO.1

main90949-01082iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING),BOOT NO.1

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iSV21..XLI198808-199106

45536BOOT, STEERING RACK, NO.2

main45535-32030iCV20,SV2#,VZV21..GL,GLI,GXI,XL198808-199106

W(POWER STEERING)

main45536-14020iSV21..XLI198808-199106

45538RETAINER, STEERING RACK BOOT

main45538-32010iSV21..XLI198808-199106

45539GUIDE, REAR STEERING CONTROL CABLE, NO.1

main45539-32020iSV21..XLI198808-199106

45539ACLIP(FOR RACK END DUST SEAL)

main90467-18003iSV21..XLI198808-199106

45539BRING, SET(FOR RACK END DUST SEAL)

main90522-32011iSV21..XLI198808-199106

45541PINION, STEERING

main45541-32060iSV21..XLI198808-199106

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15006iSV21..XLI198808-199106

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-15005iSV21..XLI198808-199106

45545SCREW, PINION BEARING ADJUSTING

main45545-22020iSV21..XLI198808-199106

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-42001iSV21..XLI198808-199106

45700EDAMPER ASSY, STEERING

main45700-32030iSV21..XLI198808-199106

45721BBRACKET, STEERING DAMPER, NO.3

main45721-32040iSV21..XLI198808-199106

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9151161040

main91511-61040

9326963020

main93269-63020
