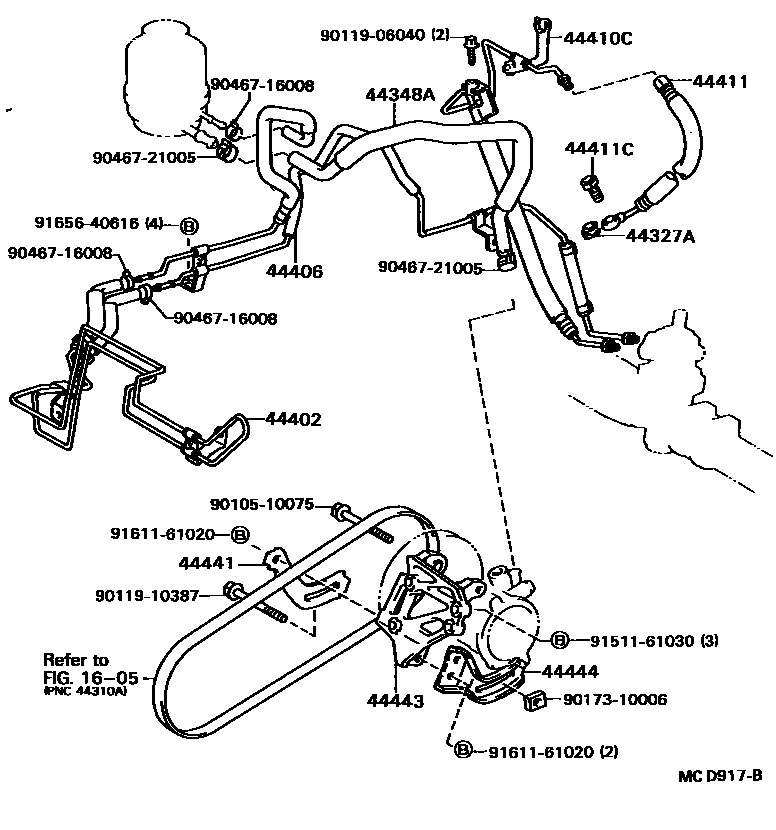

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCV20,SV2#,VZV21¥260198808-199106

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32090iVZV21..LHD¥7,400198808-199106

main44348-32100iSV2#¥6,200198808-199106

main44348-32110iCV20¥4,770198808-199106

main44348-32120iVZV21..RHD¥7,400198808-199106

sub44348-32090¥7,400

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-32031iSV2#..RHD¥7,300198808-199106

main44402-32090iVZV21;SV25..LHD¥12,000198808-199106

44406TUBE SUB-ASSY, RETURN

main44406-32080iSV2#,VZV21..RHD¥8,800198808-199106

W(*66)

main44406-32090iSV2#,VZV21..RHD¥10,600198808-199106

main44406-32140iVZV21..LHD198808-199106

main44406-32150iVZV21..LHD198808-199106

W(*66)

44410TUBE ASSY, PRESSURE FEED

main44410-32240iVZV21..RHD¥20,600198808-199106

sub44410-32241¥20,600

main44410-32320iVZV21..LHD¥24,300198808-199106

sub44410-32321¥24,300

main44410-32370iSV21..XLI¥28,700198808-199106

main44410-32380iSV21..XLI¥28,700198808-199106

W(*66)

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-32290iSV25..LHD¥35,500198808-199106

W(*66)

main44410-32300iSV25..LHD¥36,900198808-199106

main44410-32330iCV20..RHD¥32,500198808-199106

main44410-32340iCV20..LHD¥43,700198808-199106

main44410-32350iSV2#..RHD¥15,500198808-199106

44411HOSE, PRESSURE FEED

main44411-32050iSV2#..LHD¥10,800198808-199106

main44411-32070iVZV21..LHD¥13,200198808-199106

sub44411-32071¥13,200

main44411-32080iVZV21..RHD¥13,200198808-199106

sub44411-32081¥13,200

main44411-32090iSV2#..RHD¥10,700198808-199106

sub44411-32100¥12,800

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iSV2#,VZV21¥610198808-199106

44441BRACKET, PUMP, FRONT

main44441-32010iSV2#¥1,130198808-199106

44443BRACKET, PUMP

main44443-20050iSV2#¥5,300198808-199106

main44443-32041iVZV21¥4,780198808-199106

44444STAY, PUMP, REAR

main44444-20030iSV2#¥1,300198808-199106

9010510075

main90105-10075¥180

9011906040

main90119-06040¥130

9011910387

main90119-10387¥260

9017310006

main90173-10006¥160

9046716008

main90467-16008¥240

9046721005

main90467-21005¥330

9151161030

main91511-61030¥240

9161161020

main91611-61020¥240

9165640616

main91656-40616¥100

21 parts on this diagram · 7 diagrams in section
