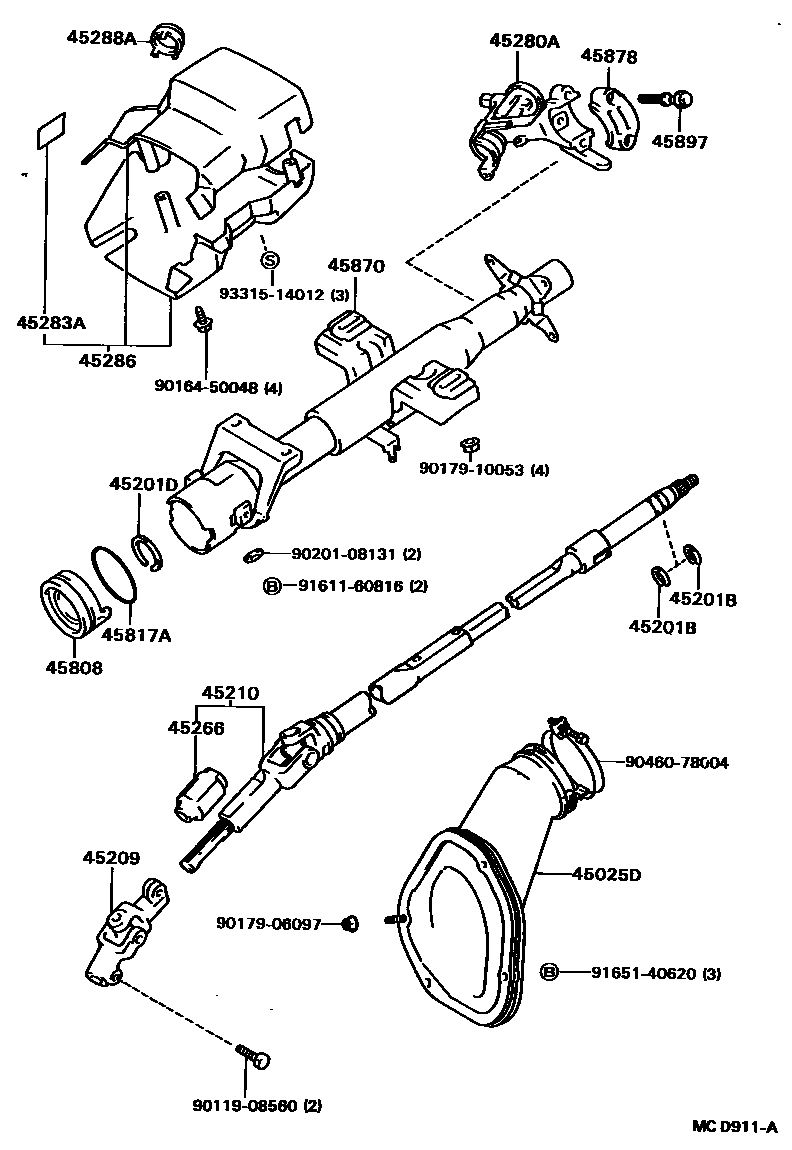

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-32050iCV20..RHD198808-198810

sub45025-32090

main45025-32060iCV20..LHD198808-198810

sub45025-32100

main45025-32070iSV2#,VZV21..RHD198808-198810

sub45025-32110

main45025-32080iSV2#,VZV21..LHD198808-198810

sub45025-32120

main45025-32090iCV20..RHD198810-199106

main45025-32100iCV20..LHD198810-199106

main45025-32110iSV2#,VZV21..RHD198810-199106

main45025-32120iSV2#,VZV21..LHD198810-199106

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCV20,SV2#,VZV21..RHD;CV20,SV21..LHD..(XL,XLI)198808-199106

T=1.20

main90520-17042iCV20,SV2#,VZV21..RHD;CV20,SV21..LHD..(XL,XLI)198808-199106

T=1.20,W(TILT STEERING SWING-UP TYPE)

main90520-17196iCV20,SV2#,VZV21..RHD;CV20,SV21..LHD..(XL,XLI)198808-199106

T=1.35-1.45

45201DRING(FOR STEERING MAIN SHAFT)

main90520-28061iCV20,SV2#,VZV21..RHD;CV20,SV21..LHD..(XL,XLI)198808-199106

main96152-00300iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

W(TILT STEERING SWING-UP TYPE)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iSV21..XLI198808-199106

sub45209-10020

main45209-32020iSV21..XLI198808-199106

W(POWER STEERING)

sub45209-16010

45210SHAFT ASSY, STEERING MAIN

main45210-32110iCV20,SV2#,VZV21..RHD198808-199106

main45210-32120iSV21..XLI198808-199106

main45210-32130iCV20..LHD..XL198808-199106

main45210-32140iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

W(TILT STEERING SWING-UP TYPE)

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-20010iCV20,SV2#,VZV21198808-199106

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-32140iCV20,SV2#..RHD198808-199106

sub45280-32150

main45280-32150iVZV21..RHD198808-199106

main45280-32210iCV20,SV21..LHD..(XL,XLI)198808-199106

sub45280-32230

main45280-32240iCV20,SV21..LHD..(XL,XLI)198808-199106

W(TILT STEERING SWING-UP TYPE)

sub45280-32260

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iCV20,SV2#,VZV21..RHD198808-199106

45286COVER, STEERING COLUMN

main45286-32916-01iCV20,SV21..LHD..(XL,XLI)198808-199106

BLACK,TRIM1#,4#,8#

main45286-32917-01iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

BLACK,TRIM1#,4#,8#

sub45286-32918

main45286-32917-01iSV21..XLI..G;CV20..LHD..XL;SV21..SED..XLI..EUR198808-199106

W(TILT STEERING SWING-UP TYPE),BLACK,TRIM1#,4#,8#

sub45286-32918

main45286-32930-01iCV20,SV2#..RHD..(GL,GLI)198808-199106

BLACK,TRIM1#,8#

sub45286-32930

main45286-32930-03iCV20,VZV21..RHD..(GXI,XL)198808-199106

MEDUUM GRAY,TRIM1#

sub45286-32930

main45286-32930-04iVZV21..RHD198808-199106

DARK BLUE,TRIM8#

sub45286-32930

45288ASPACER, COLUMN COVER

main45288-30010iCV20..RHD..XL198808-199106

main45288-32040iCV20,SV21..LHD..(XL,XLI)198808-199106

45808STOPPER SUB-ASSY, STEERING SHAFT THRUST

main45808-32010iCV20,SV2#,VZV21198808-199001

sub45808-32020

main45808-32020iCV20,SV2#,VZV21199001-199106

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iCV20,SV2#,VZV21198808-199106

45870TUBE ASSY, STEERING COLUMN

main45870-32020iCV20..RHD..XL198808-198809

sub45870-32021

main45870-32021iCV20..RHD..XL198809-199106

main45870-32070iCV20,SV21..LHD..(XL,XLI)198808-198809

sub45870-32071

main45870-32071iCV20,SV21..LHD..(XL,XLI)198809-199106

main45870-32080iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-198809

W(TILT STEERING)

sub45870-32081

main45870-32081iCV20..RHD..XL198809-199106

W(TILT STEERING)

main45870-32110iCV20,SV21..LHD..(XL,XLI)198808-199106

W(TILT STEERING SWING-UP TYPE)

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-32030iCV20,SV2#,VZV21..RHD198808-199106

main45878-32080iCV20,SV21..LHD..(XL,XLI)198808-199106

45897BOLT, STEERING LOCK SET

main45897-12020iCV20,SV2#,VZV21..RHD;CV20,SV21..LHD..(XL,XLI)198808-199106

main45897-32010iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

W(TILT STEERING SWING-UP TYPE)

9011908560

main90119-08560

9016450048

main90164-50048

9017906097

main90179-06097

9017910053

main90179-10053

9020108131

main90201-08131

9046078004

main90460-78004

9161160816

main91611-60816

9165140620

main91651-40620

9331514012

main93315-14012

24 parts on this diagram · 4 diagrams in section
