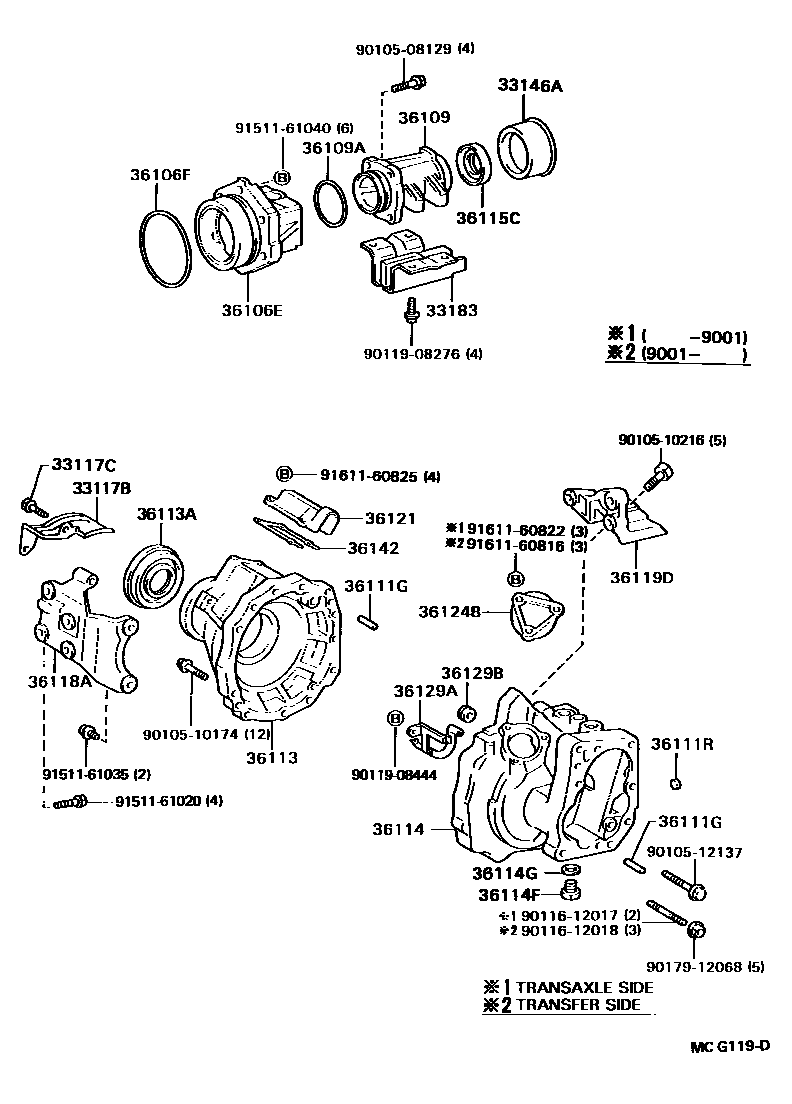

TRANSFER CASE & EXTENSION HOUSING

0001 1E56F2,W(ANTI-LOCK BRAKE SYSTE0002 1E56F5

33117BPROTECTOR, TRANSFER CASE

main33117-20030iSV25198808-199106

W(*66)

main33117-32030iSV25198808-199106

33117CBOLT(FOR TRANSFER CASE PROTECTOR)

main90105-08040iSV25198808-199106

sub91641-H0820

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30010iSV25198808-199106

sub33146-30020

33183DAMPER, TRANSFER DYNAMIC

main33183-32010iSV25198808-199106

36106ECAGE SUB-ASSY, TRANSFER PINION BEARING

main36106-20010iSV25198808-199106

36106FRING, O (FOR TRANSFER PINION BEARING CAGE)

main90301-99049iSV25198808-199106

36109HOUSING SUB-ASSY, TRANSFER EXTENSION

main36109-20012iSV25198808-199106

36109ARING, O (FOR TRANSFER EXTENSION HOUSING)

main90301-63005iSV25198808-199106

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017iSV25198808-199106

L=20,OD=10

main90250-12005iSV25198808-199106

L=24,OD=12

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90331-08002iSV25198808-199106

36113CASE, TRANSFER, RH

main36113-12010iSV25198808-199106

main36113-20020iSV25198808-199106

W(*66)

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90311-47003iSV25198808-199106

36114CASE, TRANSFER, LH

main36114-12010iSV25198808-198905

sub36114-12030

sub90105-12207

sub90341-12004

main36114-12011iSV25198905-198910

sub36114-12030

sub90341-12004

main36114-12030iSV25198910-199106

main36114-20020iSV25198808-199001

W(*66)

sub36114-20021

main36114-20021iSV25199001-199106

W(*66)

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18006iSV25198808-199106

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iSV25198808-199106

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38032iSV25198808-199106

36118APLATE, TRANSFER STIFFENER, RH

main36118-20020iSV25198808-199106

W(*66)

main36118-32011iSV25198808-199106

36119DPLATE, TRANSFER STIFFENER, CENTER

main36119-20011iSV25198808-198909

W(*66)

main36119-20012iSV25198909-199106

W(*66)

main36119-32010iSV25198808-199106

36121COVER, TRANSFER CASE, NO.1

main36121-20010iSV25198808-199106

36124BCOVER, TRANSFER INSPECTION HOLE

main36124-12010iSV25198808-199106

main36124-20010iSV25198808-199001

W(*66)

36129ATUBE, TRANSFER OIL

main36129-20010iSV25198808-199106

36129BCUSHION (FOR TRANSFER OIL TUBE)

main90540-06027iSV25198808-199106

36142GASKET, TRANSFER COVER

main36141-20010iSV25198808-199106

9010508129

main90105-08129

9010510174

main90105-10174

9010510216

main90105-10216

9010512137

main90105-12137

9011612017

main90116-12017

9011612018

main90116-12018

9011908276

main90119-08276

9011908444

main90119-08444

9017912068

main90179-12068

9151161020

main91511-61020

9151161035

main91511-61035

9151161040

main91511-61040

9161160816

main91611-60816

9161160822

main91611-60822

9161160825

main91611-60825

38 parts on this diagram · 2 diagrams in section
