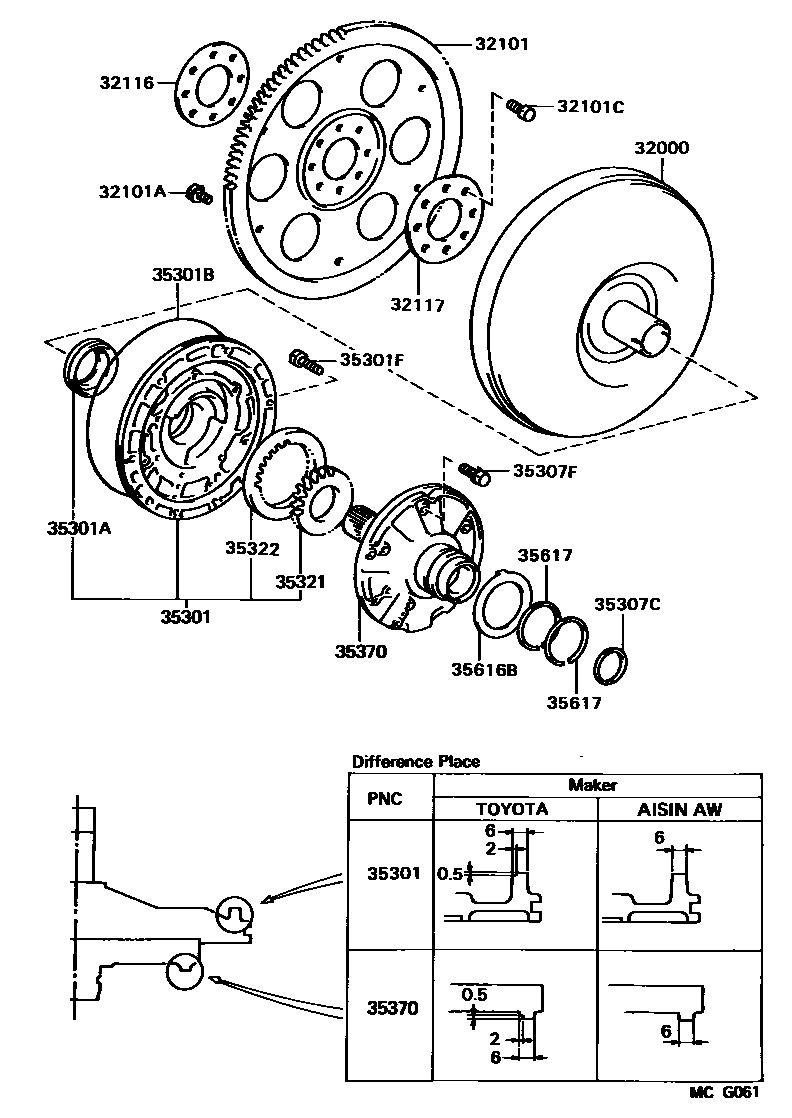

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-32030iVZV21..4FC¥140,000198808-199106

main32000-32080iSV21..4FC¥136,000198808-199106

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20080iSV21..4FC¥21,600198907-198911

sub32101-20081¥21,500

sub32116-20050¥640

sub32117-20060¥840

main32101-20081iSV21..4FC¥21,500198911-199106

main32101-32050iSV21..4FC¥21,600198808-198907

sub32101-32051¥21,500

main32101-32080iVZV21..4FC¥21,700198808-199106

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSV21..4FC¥80198808-199106

*8-1.25PX12-8.4

main90119-08498iSV21..4FC¥80198808-199106

*8-1.25PX12-8

main90119-09009iVZV21..4FC¥160198808-199106

*9-1.25PX12.8-8.8

main90119-09010iVZV21..4FC¥160198808-199106

*9-1.25PX12.8-9

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iVZV21..4FC¥130198808-199106

*10-1.25PX18-13

main90105-12184iSV21..4FC¥160198907-199106

*12-1.25PX22-16

sub90105-12384¥100

32116SPACER, DRIVE PLATE, FRONT

main32116-20040iSV21..4FC¥1,180198907-198911

main32116-20050iSV21..4FC¥640198911-199106

main32116-32011iSV21..4FC¥1,220198808-198907

main32116-32020iVZV21..4FC¥1,050198808-199106

32117SPACER, DRIVE PLATE, REAR

main32117-20050iSV21..4FC¥1,540198907-198911

main32117-20060iSV21..4FC¥840198911-199106

main32117-32010iSV21..4FC¥1,020198808-198907

main32117-32020iVZV21..4FC¥730198808-199106

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iSV21..4FC¥26,400198808-199106

AISIN AW

main35035-32020iSV21..4FC¥26,400198808-199106

TOYOTA

sub35035-32H00¥29,700

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iVZV21..4FC¥540198808-199106

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iSV21,VZV21..4FC¥2,050198808-199106

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iSV21,VZV21..4FC¥200198808-199106

*8-1.25PX28-28

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iSV21..4FC¥700198808-199106

T=0.8

main35789-32030iSV21..4FC¥740198808-199106

T=1.4

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iVZV21..4FC¥80198808-199106

35321GEAR, FRONT OIL PUMP DRIVE

main35321-32040iSV21,VZV21..4FC¥3,880198808-199106

T=9.440-9.456

sub35321-12070¥3,720

main35321-32050iSV21,VZV21..4FC¥3,880198808-199106

T=9.456-9.474

sub35321-12090¥3,720

main35321-32060iSV21,VZV21..4FC¥3,880198808-199106

T=9.474-9.490

sub35321-12110¥3,720

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-32040iSV21,VZV21..4FC¥4,160198808-199106

T=9.440-9.456

sub35322-12060¥3,980

main35322-32050iSV21,VZV21..4FC¥4,160198808-199106

T=9.456-9.474

sub35322-12080¥3,980

main35322-32060iSV21,VZV21..4FC¥4,160198808-199106

T=9.474-9.490

sub35322-12100¥3,980

35370SHAFT ASSY, STATOR

main35370-12040iSV21..4FC¥24,300199005-199106

AISIN AW

main35370-32022iSV21..4FC¥27,000198808-199005

AISIN AW

sub35370-20H00¥18,100

sub35370-32H01¥19,400

main35370-32031iSV21..4FC¥27,000198808-199005

TOYOTA

sub35370-32H00¥25,300

main35370-32040iVZV21..4FC¥24,200198808-199106

sub35370-33010¥24,300

main35370-32050iSV21..4FC¥24,300199005-199106

TOYOTA

sub35035-32H00¥29,700

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iSV21,VZV21..4FC¥2,070198808-199106

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iSV21,VZV21..4FC¥1,520198808-199106
