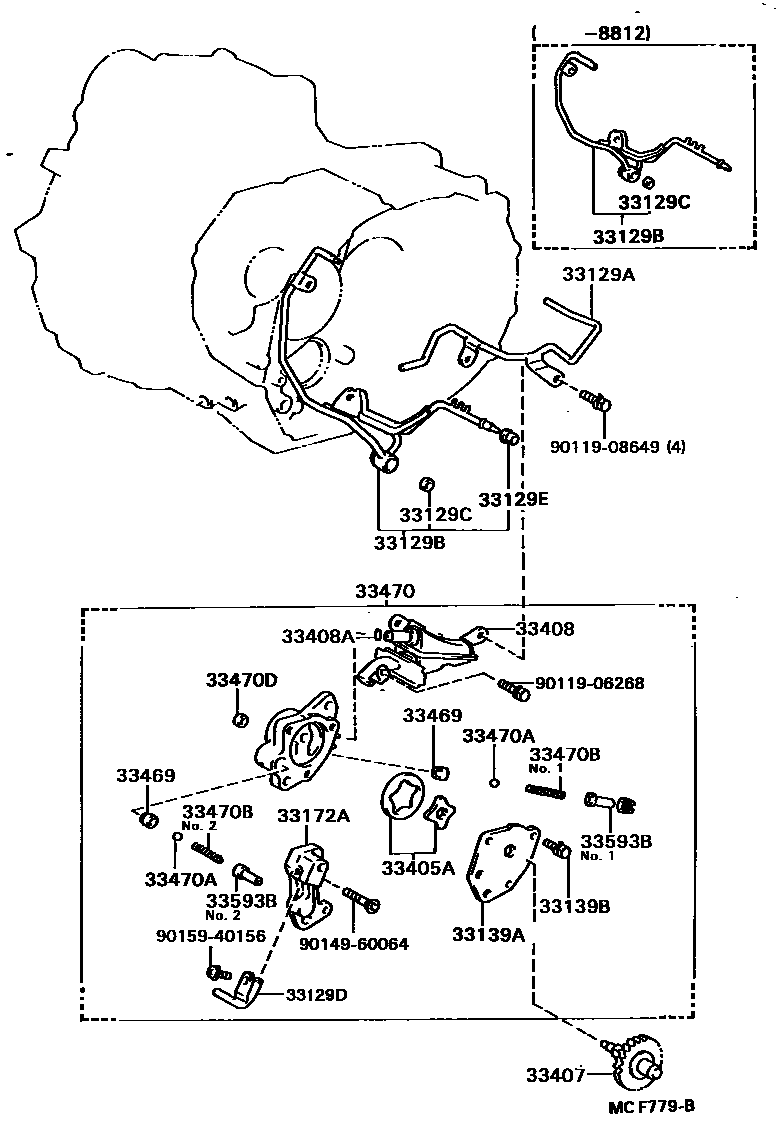

OIL PUMP, OIL COOLER & PIPE (MTM)
33129APIPE, MANUAL TRANSMISSION OIL, NO.1
33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)
33129DPIPE, TRANSMISSION OIL, NO.3
33129EBUSH(FOR MANUAL TRANSMISSION OIL PIPE)
33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)
33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)
33172ABY-PASS, TRANSMISSION OIL PUMP
33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP
33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE
33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)
33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)
33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)
NO.2
NO.1
33470DGASKET (FOR MANUAL TRANSMISSION OIL PUMP)
33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)
NO.2
NO.1
9011906268
main90119-06268
9011908649
main90119-08649
9014960064
main90149-60064
9015940156
main90159-40156
22 parts on this diagram · 3 diagrams in section
