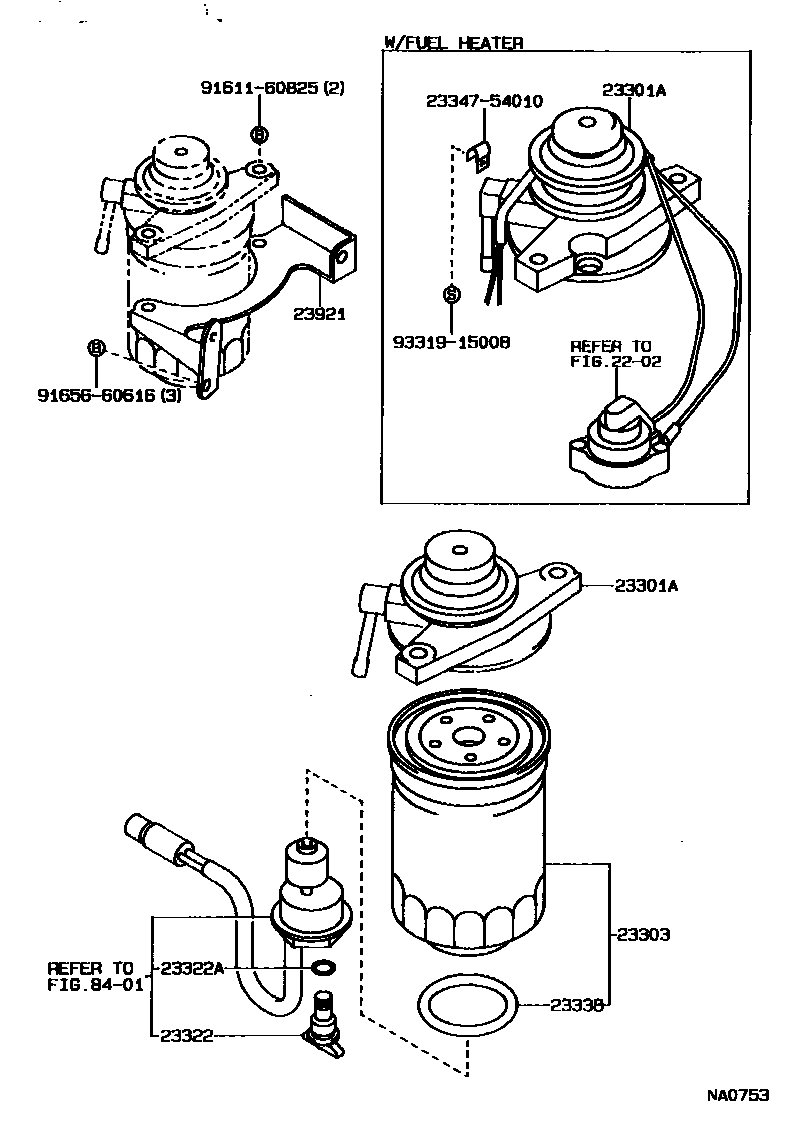

FUEL FILTER

2202

23301ACAP ASSY, FUEL FILTER

main23301-64140i2CT..CV20198808-199106

main23301-64260i2CT..CV20..LHD198808-199106

COLD SPEC

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2CT..CV20198808-199106

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2CT..CV20198808-199106

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2CT..CV20198808-199106

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2CT..CV20198808-199106

23921SUPPORT, FUEL FILTER

main23921-64160i2CT..CV20198808-199106

8401

2334754010CLIP, CORD

main23347-54010

9161160825

main91611-60825

9165660616

main91656-60616

9331915008

main93319-15008

12 parts on this diagram · 1 diagram in section
