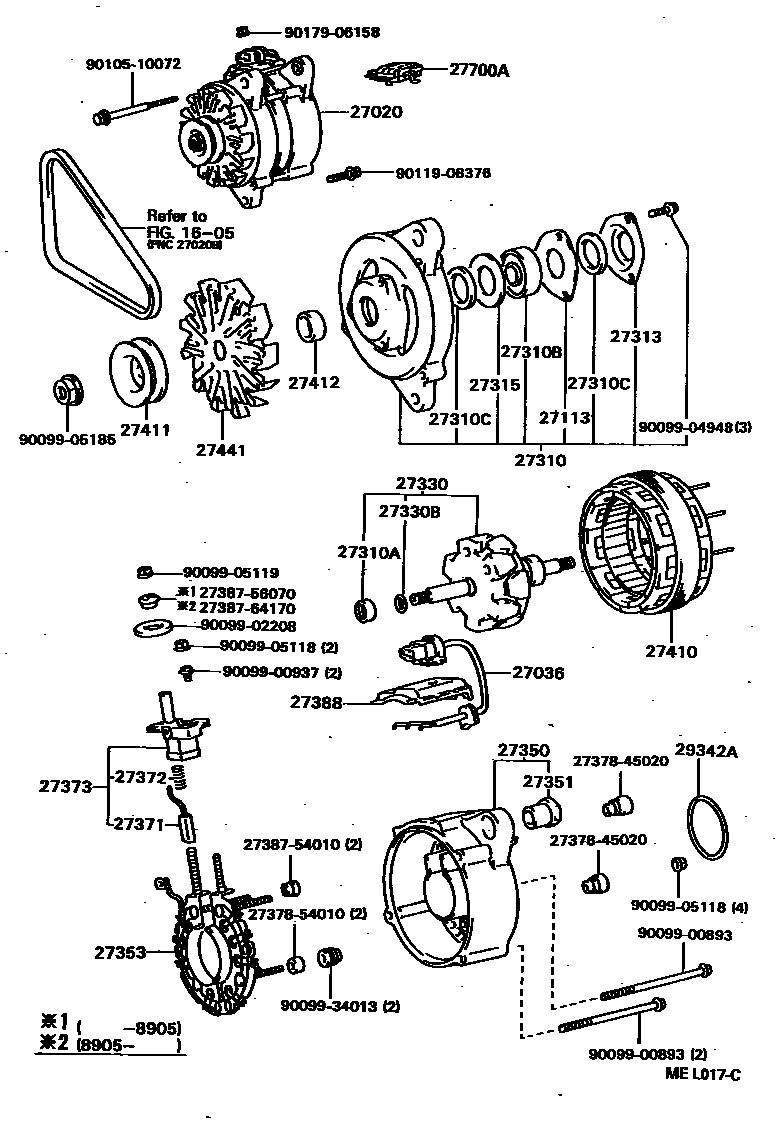

ALTERNATOR
1605
27020ALTERNATOR ASSY
12V 60A
12V 60A
12V 60A
12V 70A
27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27113PLATE, BEARING RETAINER, ALTERNATOR
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27310CFELT(FOR ALTERNATOR DRIVE END FRAME)
27313COVER, ALTERNATOR FELT, INNER NO.2
27315COVER, ALTERNATOR FELT, INNER NO.1
27330ROTOR ASSY, ALTERNATOR
27330BRING, SNAP(FOR ALTERNATOR ROTOR)
27350FRAME ASSY, RECTIFIER END
27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27373HOLDER, ALTERNATOR BRUSH, A
27388COVER, ALTERNATOR BRUSH
27410STATOR ASSY, ALTERNATOR
27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27441FAN, ALTERNATOR
29342APACKING, VACUUM PUMP
2737845020INSULATOR, ALTERNATOR, NO.1
main27378-45020
2737854010INSULATOR, ALTERNATOR, NO.1
main27378-54010
2738754010INSULATOR, TERMINAL
main27387-54010
2738756070INSULATOR, TERMINAL
main27387-56070
2738764170INSULATOR, TERMINAL
main27387-64170
9009900893
main90099-00893
9009900937
main90099-00937
9009902208
main90099-02208
9009904948
main90099-04948
9009905118
main90099-05118
9009905119
main90099-05119
9009905185
main90099-05185
9009934013
main90099-34013
9010510072
main90105-10072
9011908376
main90119-08376
9017906158
main90179-06158
41 parts on this diagram · 3 diagrams in section
