CAUTION PLATE & NAME PLATE (ENGINE)

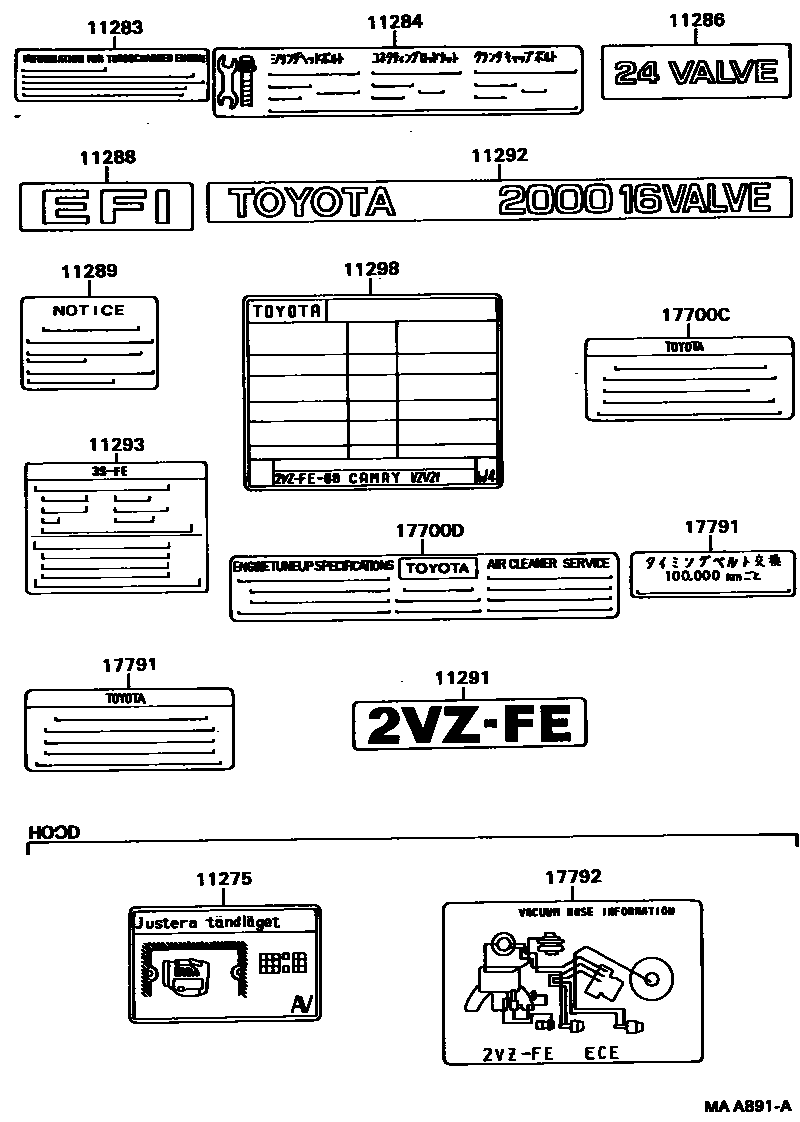

Parts diagram
11275PLATE, IGNITION TIMING ADJUSTING CAUTION
main11275-74080i198808-199106
main11275-74090i198808-198810
SWEDEN SPEC
11283PLATE, TURBOCHARGER CAUTION
main11294-64050i198808-199106
11284PLATE, ENGINE BOLT INFORMATION
main11284-62010i198808-199106
main11284-74030i198907-199106
11286PLATE, ENGINE SPECIFICATION
main11286-62010i198808-199106
11288PLATE, ENGINE SYSTEM
main11288-74020i198808-199106
11289PLATE, SPARK PLUG CAUTION
main11289-73020i198808-199106
11291PLATE, ENGINE NAME
main11291-62020i198808-199106
main11291-74040i198808-199106
sub11291-74070
11292PLATE, ENGINE NAME, NO.2
main11292-64020i198808-199006
11293PLATE, ENGINE CAUTION & ENGINE NAME
main11293-74130i198808-199106
11298PLATE, EMISSION CONTROL INFORMATION
main11298-62080i198810-198901
SWEDEN SPEC OR NORWAY SPEC
main11298-62081i198901-198906
SWEDEN SPEC OR NORWAY SPEC
main11298-62082i198906-198909
SWEDEN SPEC OR NORWAY SPEC
main11298-74340i198808-199106
main11298-74351i198810-198902
SWEDEN SPEC OR NORWAY SPEC
main11298-74352i198902-198908
SWEDEN SPEC OR NORWAY SPEC
main11298-74411i198808-198810
SWEDEN SPEC
main11298-74412i198902-198908
SWEDEN SPEC OR NORWAY SPEC
main11298-74540i198908-198910
SWEDEN SPEC OR NORWAY SPEC OR DENMARK SPEC
main11298-74550i198908-198910
SWEDEN SPEC OR NORWAY SPEC OR DENMARK SPEC
17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
main17791-74010i198808-199106
17700DPLATE, ENGINE CAUTION
main11293-64030i198808-199106
17791LABEL, MAINTENANCE INFORMATION
main17791-55010i198808-199106
main17791-74010i198808-199106
17792PLATE, ENGINE VACUUM HOSE INFORMATION
main17792-62020i198808-198906
main17792-62030i198906-199106
main17792-74110i198808-199004
main17792-74310i199004-199106

14 parts on this diagram · 1 diagram in section
