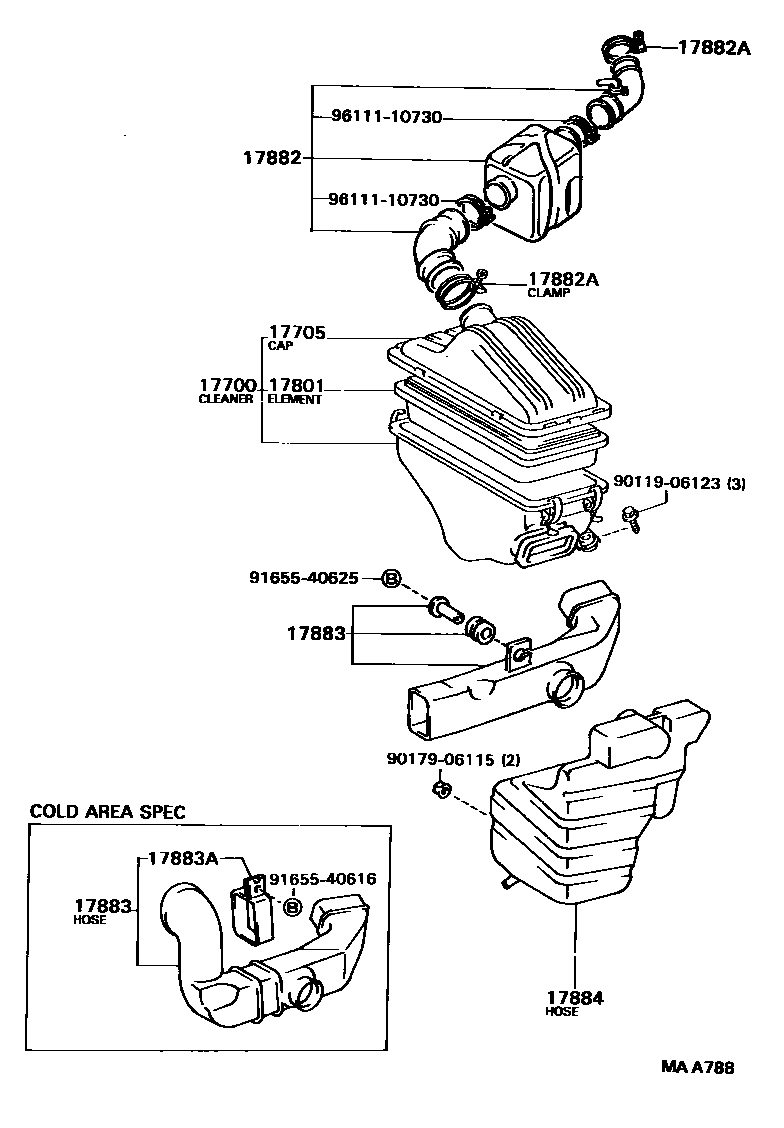

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-62020i2VZFE..VZV21198808-199106

main17700-64200i2CT..CV20198808-199106

main17700-74090i3SFE..SV2#..EUR198808-199106

main17700-74100i3SFE..SV2#..G198808-199106

17705CAP SUB-ASSY, AIR CLEANER

main17705-62020i2VZFE..VZV21198808-199106

main17705-64030i2CT..CV20198808-199106

main17705-74070i3SFE..SV2#..G198808-199106

main17705-74090i3SFE..SV2#..EUR198808-199106

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64040i2CT..CV20198808-199106

main17801-74010i3SFE..SV2#198808-199106

sub17801-55010

main17801-74020i2VZFE..VZV21198808-199106

17882HOSE, AIR CLEANER, NO.2

main17880-64140i2CT..CV20198808-199106

main17882-74040i3SFE..SV2#..G198808-199106

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-57002i2CT..CV20198808-199106

TURBO SIDE

main96111-10670i2CT..CV20198808-199106

AIR CLEANER SIDE

main96111-10800i3SFE..SV2#198808-199106

17883HOSE, AIR CLEANER, NO.3

main17882-63110i3SFE..SV2#198808-199106

main17882-64040i2CT..CV20..RHD198808-199106

COLD SPEC

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01046i2CT..CV20..LHD198808-199106

COLD SPEC

17884HOSE, AIR CLEANER, NO.4

main17883-62010i2VZFE..VZV21198808-198908

sub17883-62011

main17883-62011i2VZFE..VZV21198908-199106

main17883-63030i2CT..CV20198808-199106

9011906123

main90119-06123

9017906115

main90179-06115

9165540616

main91655-40616

9165540625

main91655-40625

9611110730

main96111-10730

13 parts on this diagram · 4 diagrams in section
