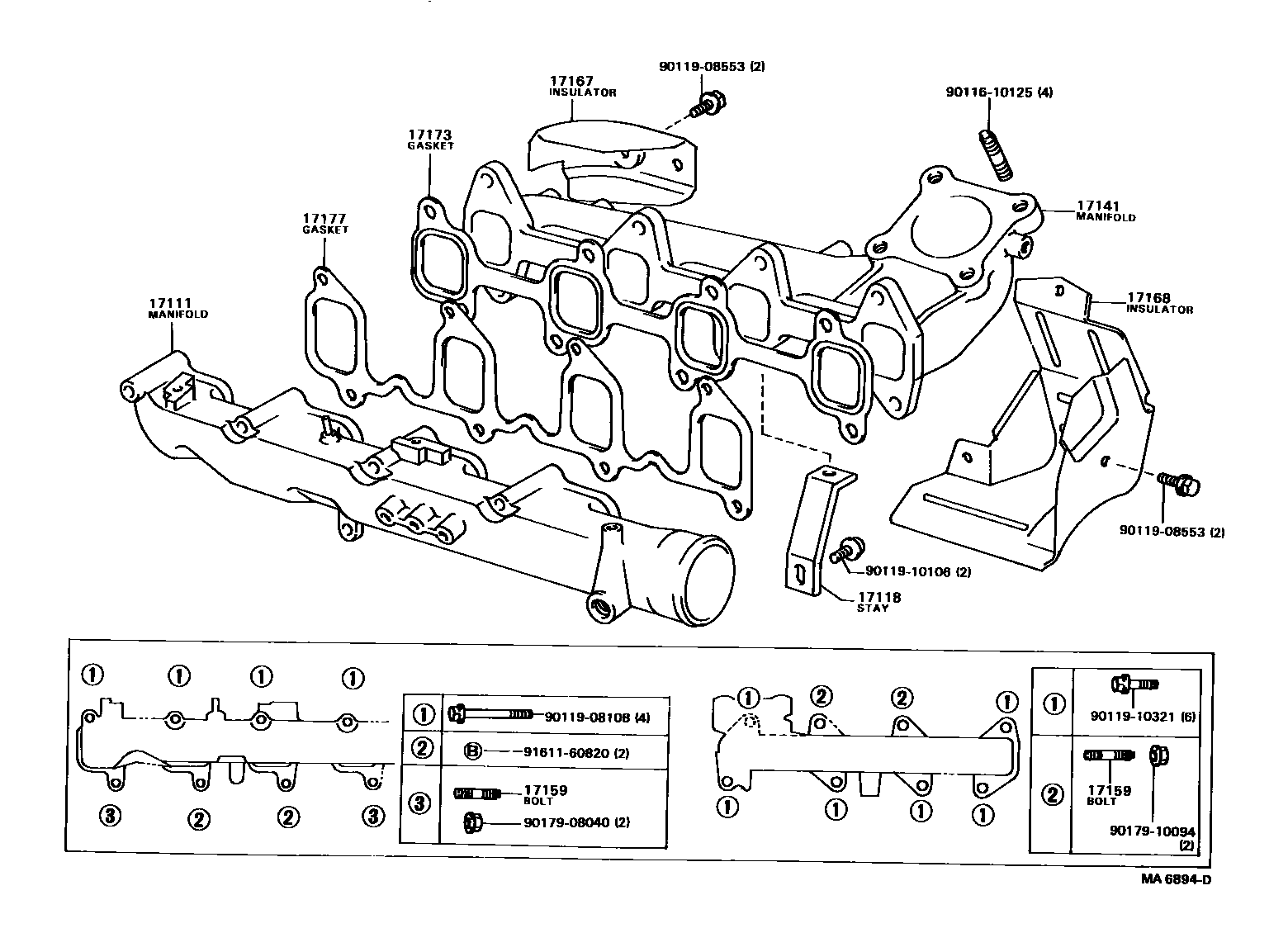

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

17111MANIFOLD, INTAKE

main17101-64100i2CT..CV20198808-198906

main17101-64101i2CT..CV20198906-199106

main17101-74071i3SFE..SV2#198808-199106

main17111-62020i2VZFE..VZV21198808-199106

17118STAY, MANIFOLD

main17118-64020i2CT..CV20198808-199106

main17118-74040i3SFE..SV21..G198808-199106

main17118-74080i3SFE..SV25..G198808-199106

sub17118-74300

main17118-88362i3SFE..SV2#..EUR198808-199106

17141MANIFOLD, EXHAUST

main17141-62020i2VZFE..VZV21198808-199106

main17141-64110i2CT..CV20198808-199106

main17141-74040i3SFE..SV25..G198808-198909

sub17141-74041

sub90105-08222

main17141-74041i3SFE..SV25..G198909-199106

main17141-74050i3SFE..SV21..G198808-198909

sub17141-74051

sub90105-08222

main17141-74051i3SFE..SV21..G198909-199106

sub17141-74170

main17141-88360i3SFE..SV2#..EUR198808-199106

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08251i2VZFE..VZV21198808-199106

INTAKE MANIFOLD

main90116-10063i3SFE..SV2#198808-199106

EXHAUST MANIFOLD

main90116-10095i2CT..CV20..XL;2CT..CV20..LHD..GL198808-199106

EXHAUST MANIFOLD

main90116-10150i2VZFE..VZV21198808-199106

EXHAUST MANIFOLD

main92122-60820i2CT..CV20..XL;2CT..CV20..LHD..GL198808-199106

INTAKE MANIFOLD

main92122-60822i3SFE..SV2#198907-199106

INTAKE MANIFOLD

main92122-60825i3SFE..SV2#198808-198907

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-62010i2VZFE..VZV21198808-199106

main17167-64031i2CT..CV20198808-199106

main17167-74021i3SFE..SV2#..EUR198808-199106

main17167-74040i3SFE..SV25..G198808-198908

sub17167-74140

main17167-74050i3SFE..SV21..G198808-199106

sub17167-74210

main17167-74140i3SFE..SV25..G198908-199106

sub17167-74141

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-62010i2VZFE..VZV21198808-199106

main17168-64060i2CT..CV20198808-199106

main17168-74020i3SFE..SV25..G198808-199106

main17168-74030i3SFE..SV21..G198808-199106

sub17168-74110

main17168-88360i3SFE..SV2#..EUR198808-199106

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-62020i2VZFE..VZV21198808-199106

main17173-64050i2CT..CV20198808-199106

sub17173-64051

sub17173-64080

main17173-74040i3SFE..SV2#198907-199106

main17173-88360i3SFE..SV2#198808-198907

sub17173-88362

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-62030i2VZFE..VZV21198808-199106

main17177-64010i2CT..CV20198808-198903

sub17177-64020

main17177-64020i2CT..CV20198903-199106

main17177-74020i3SFE..SV2#198808-198907

sub17177-74041

main17177-74041i3SFE..SV2#198907-199006

sub17177-74070

main17177-74070i3SFE..SV2#199006-199106

9011610125

main90116-10125

9011908108

main90119-08108

9011908553

main90119-08553

9011910106

main90119-10106

9011910321

main90119-10321

9017908040

main90179-08040

9017910094

main90179-10094

9161160820

main91611-60820

16 parts on this diagram · 5 diagrams in section
