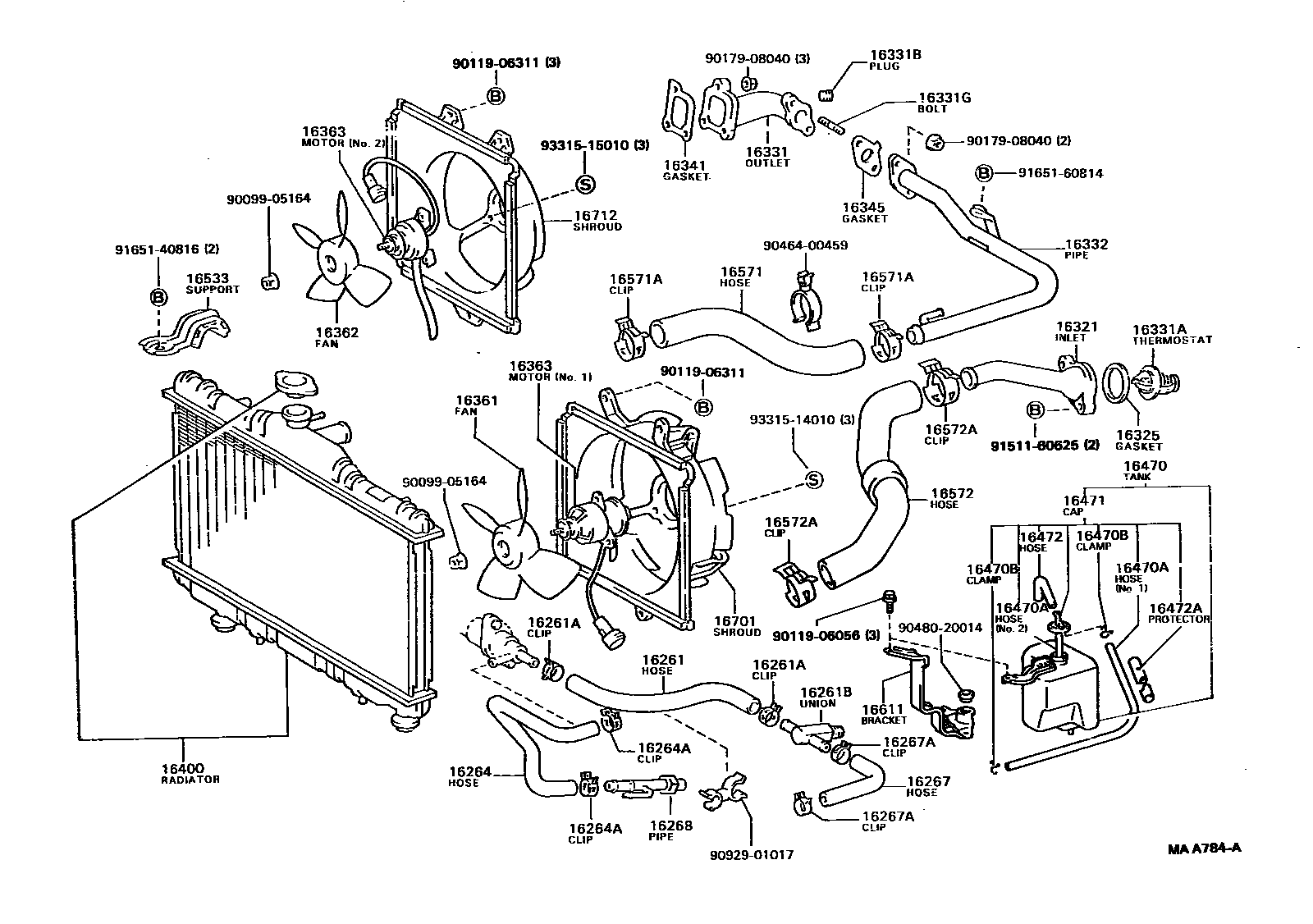

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261BUNION(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51100
sub96135-51300
sub96134-41900
sub96135-51300
16321INLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16331BPLUG(FOR WATER OUTLET)
16331GBOLT, STUD(FOR WATER INLET)
16332PIPE, WATER OUTLET, NO.1
16363MOTOR, COOLING FAN
NO.1
NO.2
NO.1
NO.2
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600,NO.1,NO.2
L=600,NO.2
NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16472APROTECTOR, HOSE
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34003
sub90467-33003
sub90467-37003
sub90467-37005
16572HOSE, RADIATOR, OUTLET
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
16712SHROUD, FAN, NO.2
9009905164
main90099-05164
9011906056
main90119-06056
9011906311
main90119-06311
9017908040
main90179-08040
9046400459
main90464-00459
9048020014
main90480-20014
9092901017
main90929-01017
9151160625
main91511-60625
9165140816
main91651-40816
9165160814
main91651-60814
9331514010
main93315-14010
9331515010
main93315-15010
47 parts on this diagram · 4 diagrams in section
