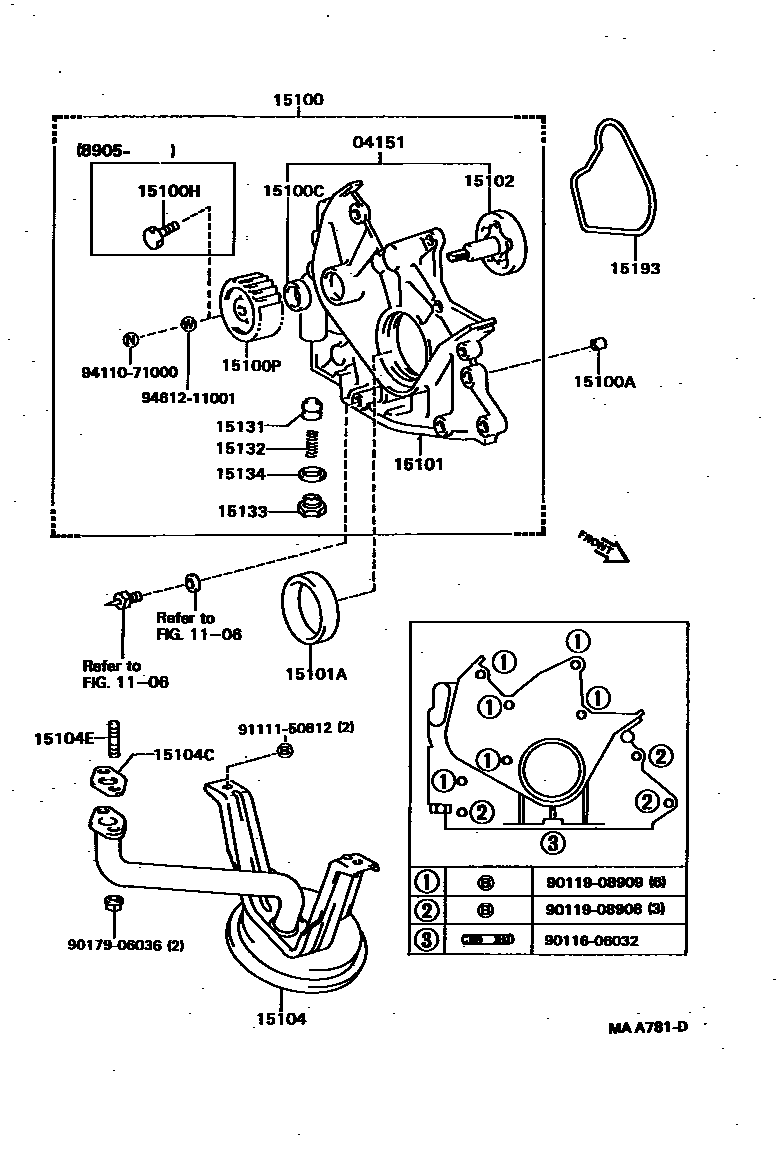

ENGINE OIL PUMP

0001 1 0002 1 0003 1

04151ROTOR KIT, OIL PUMP

main04151-64020i2CT..CV20198905-199106

1106

15100PUMP ASSY, OIL

main15100-62020i2VZFE..VZV21198808-199106

main15100-64021i2CT..CV20198808-198905

sub15100-64040

main15100-64040i2CT..CV20198905-199106

sub15100-64041

sub90119-08B81

main15100-74010i3SFE..SV2#198808-199106

sub15100-74060

sub15197-74040

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i2CT..CV20198808-199106

15100CSEAL(FOR OIL PUMP)

main15165-70010i3SFE..SV2#198808-199106

main90029-21007i2CT..CV20198808-198905

sub90029-21020

main90029-21014i2CT..CV20198905-199106

sub90029-21022

main90311-40006i2VZFE..VZV21198808-198911

sub90311-40013

main90311-40013i2VZFE..VZV21198911-199106

sub90311-40022

15100HBOLT, SEAL

main15189-55010i2CT..CV20198905-199106

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-64010i2CT..CV20198808-198905

main13524-64020i2CT..CV20198905-199106

main13524-74020i3SFE..SV2#198808-199106

15101BODY SUB-ASSY, OIL PUMP

main15101-64030i2CT..CV20198905-199106

sub15100-64031

sub15100-64042

sub90119-08B81

15101ASEAL(FOR CRANKSHAFT)

main90311-42003i3SFE..SV2#198808-198909

sub90311-42026

main90311-42015i2CT..CV20198808-198906

sub90311-42026

main90311-42026i2CT..CV20198906-199106

15102ROTOR SET, OIL PUMP

main15102-63010i3SFE..SV2#198808-199106

main15102-64021i2CT..CV20198808-198905

main15102-64040i2CT..CV20198905-199106

sub04151-64020

15104STRAINER SUB-ASSY, OIL

main15104-62010i2VZFE..VZV21198808-199106

main15104-64021i2CT..CV20198808-199106

sub15104-64060

main15104-88360i3SFE..SV2#198808-198912

main15104-88380i3SFE..SV2#198912-199106

15104CGASKET(FOR OIL STRAINER)

main15147-62020i2VZFE..VZV21198808-199106

main15149-64010i2CT..CV20198808-198903

sub15149-64030

main15149-64030i2CT..CV20198903-199106

sub15149-64070

main15149-74020i3SFE..SV2#198907-199106

main15149-88360i3SFE..SV2#198808-198907

sub23293-88360

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06032i2CT..CV20198808-199106

15131VALVE, OIL PUMP RELIEF

main15131-24010i2VZFE..VZV21198808-199106

main15131-64020i2CT..CV20198808-199106

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3SFE..SV2#198808-199106

main15132-62010i2VZFE..VZV21198808-199106

main15132-64012i2CT..CV20198808-199106

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i2CT..CV20198808-199106

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i2CT..CV20198808-199106

15193GASKET, OIL PUMP

main15193-64021i2CT..CV20198808-199106

sub15193-64022

main15197-63020i3SFE..SV2#198808-198907

sub15197-63021

main15197-63021i3SFE..SV2#198907-199106

9011606032

main90116-06032

9011908908

main90119-08908

9011908909

main90119-08909

9017906036

main90179-06036

9111150812

main91111-50812

9411071000

main94110-71000

9461211001

main94612-11001

25 parts on this diagram · 3 diagrams in section
