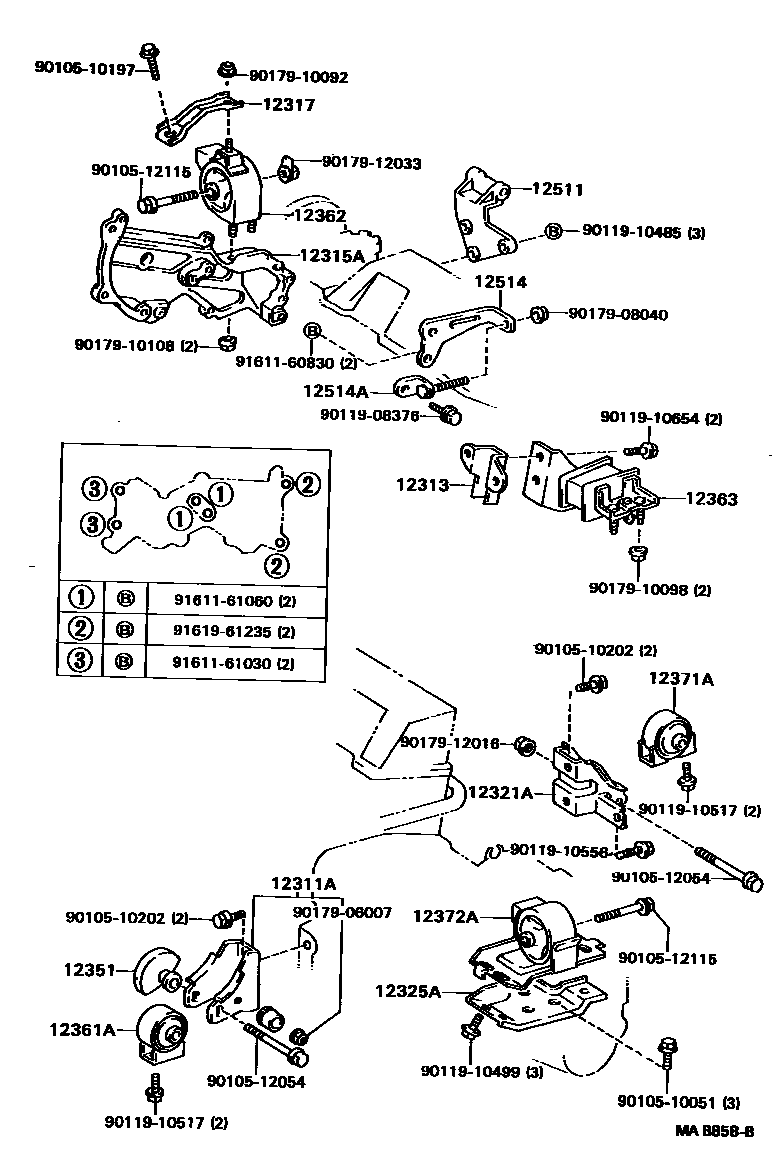

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-62010i2VZFE..VZV21198808-199106

main12311-64100i2CT..CV20198808-199106

main12311-74030i3SFE..SV21198808-199106

main12311-74050i3SFE..SV25198808-199106

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-62010i2VZFE..VZV21198808-199106

main12313-64010i2CT..CV20198808-199106

main12313-74020i3SFE..SV21198808-198905

sub12313-74021

main12313-74050i3SFE..SV21198905-199106

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-62020i2VZFE..VZV21198808-199106

main12315-64040i2CT..CV20198808-198905

main12315-64050i2CT..CV20198905-199106

main12315-74030i3SFE..SV25198808-199106

main12315-74060i3SFE..SV21198808-199106

sub12315-74061

12317STAY, ENGINE MOUNTING, RH

main12317-62020i2VZFE..VZV21198808-199106

main12317-64010i2CT..CV20198808-199106

main12317-74060i3SFE..SV2#198808-199106

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-62010i2VZFE..VZV21..5F198808-199106

main12321-62030i2VZFE..VZV21..4FC198808-199104

main12321-62090i2VZFE..VZV21..4FC199104-199106

main12321-64110i3SFE..SV21..5F198808-199106

main12321-74060i3SFE..SV25198808-199106

main12321-74130i3SFE..SV21..4FC198808-199106

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-62010i3SFE..SV25198808-199106

main12325-62020i2VZFE..VZV21..4FC198808-199106

main12325-74031i3SFE..SV21..5F198808-199106

main12325-74041i3SFE..SV21..4FC198808-199106

12351DAMPER, ENGINE MOUNTING

main12351-63010i3SFE..SV25198808-199106

main12351-64020i3SFE..SV21..4FC198808-199106

NO.1

main12351-64030i2CT..CV20198808-199106

main12351-74051i3SFE..SV21..4FC198808-199106

NO.2

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-62011i2VZFE..VZV21..5F198808-199106

main12361-62020i3SFE..SV21..4FC198808-199106

sub12361-64120

main12361-64111i2CT..CV20198808-198902

main12361-64190i2CT..CV20198902-199106

main12361-74010i3SFE..SV25198808-199106

sub12361-74150

main12361-74100i3SFE..SV21..5F198808-199106

sub12361-74020

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-62020i2VZFE..VZV21198808-199106

main12362-64050i2CT..CV20198808-199106

main12362-74060i3SFE..SV25198808-199106

main12362-74110i3SFE..SV21198808-199106

12363INSULATOR, ENGINE MOUNTING, CENTER

main12363-64010i2CT..CV20198808-199106

main12363-74010i2VZFE..VZV21198808-199106

MARUYASU

main12363-74030i3SFE..SV21198808-199106

TOGO GOMU

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-62011i2VZFE..VZV21..5F198808-199106

main12371-62020i2VZFE..VZV21..4FC198808-199106

main12371-64091i2CT..CV20198808-199106

main12371-74140i3SFE..SV21..5F198808-199106

main12371-74150i3SFE..SV21..4FC198808-199106

sub12371-64100

main12371-74170i3SFE..SV25198808-199106

sub12371-74060

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-62010i2VZFE..VZV21..5F198808-199106

sub12372-62030

main12372-62020i2VZFE..VZV21..4FC198808-199106

sub12372-62040

main12372-64120i2CT..CV20198808-199106

main12372-74080i3SFE..SV25198808-199106

main12372-74160i3SFE..SV21..5F198808-199106

main12372-74170i3SFE..SV21..4FC198808-199106

12511BRACKET, ALTERNATOR, NO.1

main12511-64020i2CT..CV20198808-199106

main12511-74020i3SFE..SV2#198808-199106

sub12511-74051

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-74010i3SFE..SV2#198808-199103

main12514-74011i3SFE..SV2#199103-199106

sub12514-74012

sub91621-60845

main16381-64020i2CT..CV20198808-199106

12514ASLIDER, FAN BELT ADJUSTING

main16385-64020i2CT..CV20198808-199106

9010510051

main90105-10051

9010510197

main90105-10197

9010510202

main90105-10202

9010512054

main90105-12054

9010512115

main90105-12115

9011908376

main90119-08376

9011910485

main90119-10485

9011910499

main90119-10499

9011910517

main90119-10517

9011910556

main90119-10556

9011910654

main90119-10654

9017906007

main90179-06007

9017908040

main90179-08040

9017910092

main90179-10092

9017910098

main90179-10098

9017910108

main90179-10108

9017912016

main90179-12016

9017912033

main90179-12033

9161160830

main91611-60830

9161161030

main91611-61030

9161161060

main91611-61060

9161961235

main91619-61235

37 parts on this diagram · 6 diagrams in section
