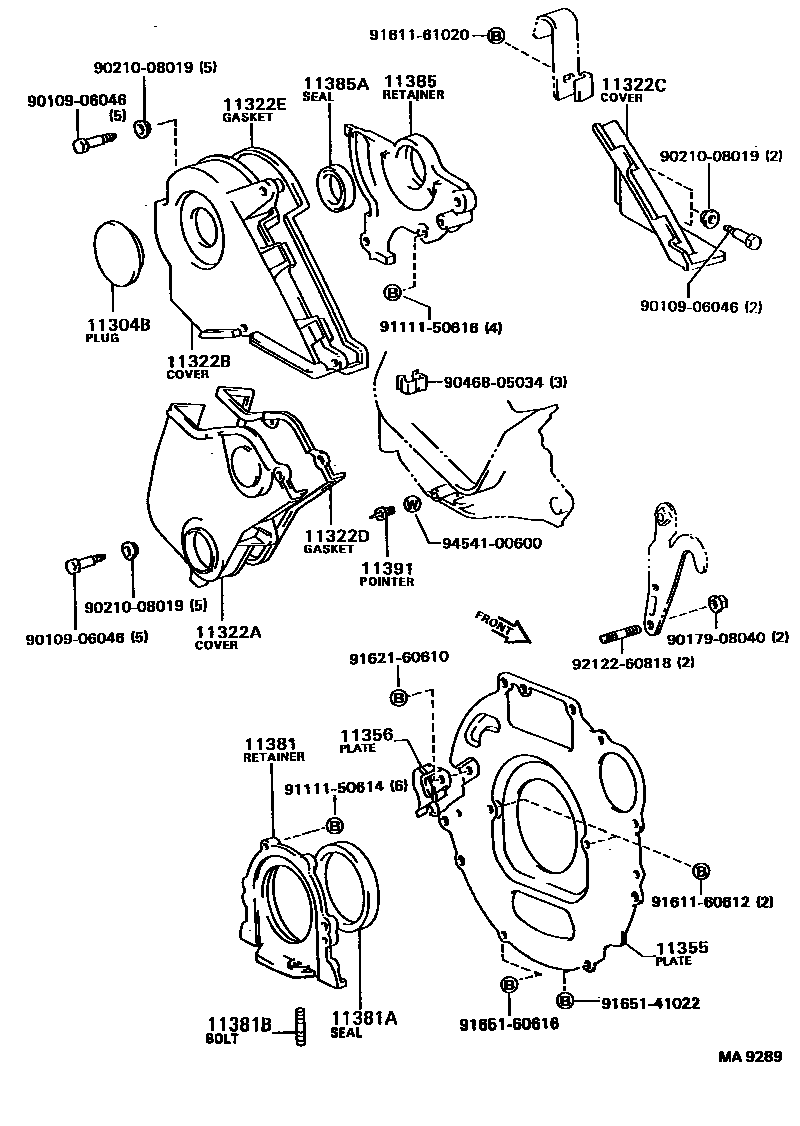

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-62020i2VZFE..VZV21198808-199106

main11303-74010i3SFE..SV2#198808-199106

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i2CT..CV20198808-199106

OD=64

main90950-01489i3SFE..SV2#198808-199106

OD=33,OD=34

main90950-01497i3SFE..SV2#198808-199106

OD=76,OD=76

main90950-01554i2VZFE..VZV21198808-199106

sub90950-01497

11322ACOVER, TIMING BELT, NO.1

main11321-64010i2CT..CV20198808-198906

sub11321-64011

main11321-64020i2CT..CV20198906-199106

sub11321-64021

11322BCOVER, TIMING BELT, NO.2

main11322-64010i2CT..CV20198808-199106

11322CCOVER, TIMING BELT, NO.3

main11304-62020i2VZFE..VZV21198808-199105

sub11304-62021

main11304-62021i2VZFE..VZV21199105-199106

main11323-64011i2CT..CV20198808-199106

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i2CT..CV20198808-198906

main11328-64040i2CT..CV20198906-199106

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i2CT..CV20198808-199106

11355PLATE, REAR END

main11355-62010i2VZFE..VZV21198808-199106

main11355-64032i2CT..CV20198808-198904

sub11355-64050

sub11356-64040

main11355-64050i2CT..CV20198904-199106

sub11355-64051

sub90119-06670

main11355-74010i3SFE..SV21198808-199106

main11355-74040i3SFE..SV25198808-199106

11356PLATE, REAR END, NO.2

main11356-62010i2VZFE..VZV21198808-199106

main11356-63030i3SFE..SV2#198808-198907

sub11356-63031

main11356-63031i3SFE..SV2#198907

sub11356-74030

main11356-64010i2CT..CV20198808-198904

main11356-64040i2CT..CV20198904-199106

11381RETAINER, ENGINE REAR OIL SEAL

main11381-62010i2VZFE..VZV21198808-199106

main11381-63011i3SFE..SV2#198808-198907

sub11381-63012

main11381-63012i3SFE..SV2#198907-199106

main11381-64012i2CT..CV20198808-199106

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-85003i3SFE..SV2#198808-198907

sub90311-85006

main90311-89001i3SFE..SV2#198907-199106

sub90311-89003

main90311-90003i2CT..CV20198808-199002

sub90311-90005

main90311-90005i2CT..CV20199002-199106

sub90311-90008

main90311-92001i2VZFE..VZV21198808-198911

sub90311-92005

main90311-92005i2VZFE..VZV21198808-199106

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06033i2CT..CV20198808-199106

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64011i2CT..CV20198808-199106

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38025i2CT..CV20198808-199010

main90311-38044i2CT..CV20..XL;2CT..CV20..LHD..GL199010-199106

sub90311-38081

11391POINTER, TIMING

main11391-64010i2CT..CV20198906-199106

main11391-64020i2CT..CV20198808-198906

9010906046

main90109-06046

9017908040

main90179-08040

9021008019

main90210-08019

9046805034

main90468-05034

9111150614

main91111-50614

9111150616

main91111-50616

9161160612

main91611-60612

9161161020

main91611-61020

9162160610

main91621-60610

9165141022

main91651-41022

9165160616

main91651-60616

9212260818

main92122-60818

9454100600

main94541-00600

28 parts on this diagram · 3 diagrams in section
