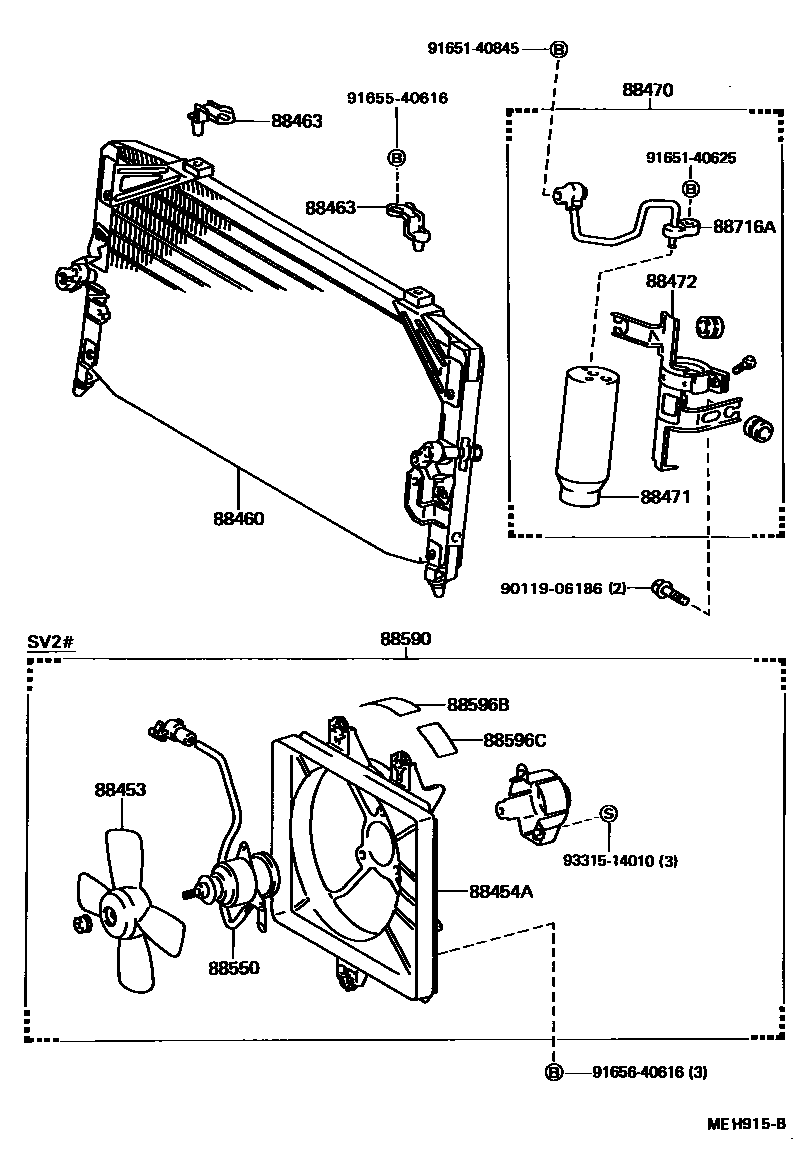

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1HONG KONG SPEC 0003 1 0004 1HONG KONG SPEC 0005 1 0006 1 0007 1

88453FAN, COOLING (FOR CONDENSER)

main88453-32030iSV2#198610-198808

88454ASHROUD, FAN

main88454-32040iSV2#198610-198710

sub88454-32041

main88454-32041iSV2#198710-198808

88460CONDENSER ASSY, COOLER

main88460-32050iCV20,SV2#198610-198710

sub88460-32090

main88460-32070iSV21..SED..RHD..4FC198610-198808

HONG KONG SPEC

main88460-32090iCV20,SV2#,VZV21198710-198808

88463BRACKET, COOLER CONDENSER, NO.1

main88463-32020iCV20,SV2#198610-198808

sub88463-32021

88470RECEIVER & DRYER ASSY, COOLER

main88470-32010iCV20,SV2#198610-198808

88471TANK, RECEIVER AIR CONDITIONER

main88471-10030iCV20,SV2#198610-198808

sub88471-12040

88472BRACKET, RECEIVER TANK, NO.1

main88473-32020iCV20,SV2#198610-198808

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-32050iSV2#198610-198710

sub88550-32080

main88550-32070iSV2#198710-198808

sub88550-32080

88590BLOWER ASSY, W/SHROUD

main88590-32080iSV2#198610-198710

sub88590-32081

main88590-32081iSV2#198710-198808

88596BPLATE, CAUTION, NO.1

main88596-24010iSV2#198610-198808

88596CPLATE, CAUTION, NO.2

main88596-12010iSV2#198610-198808

sub88723-12010

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-32230iCV20,SV2#198610-198808

9011906186

main90119-06186

9165140625

main91651-40625

9165140845

main91651-40845

9165540616

main91655-40616

9165640616

main91656-40616

9331514010

main93315-14010

18 parts on this diagram · 7 diagrams in section
