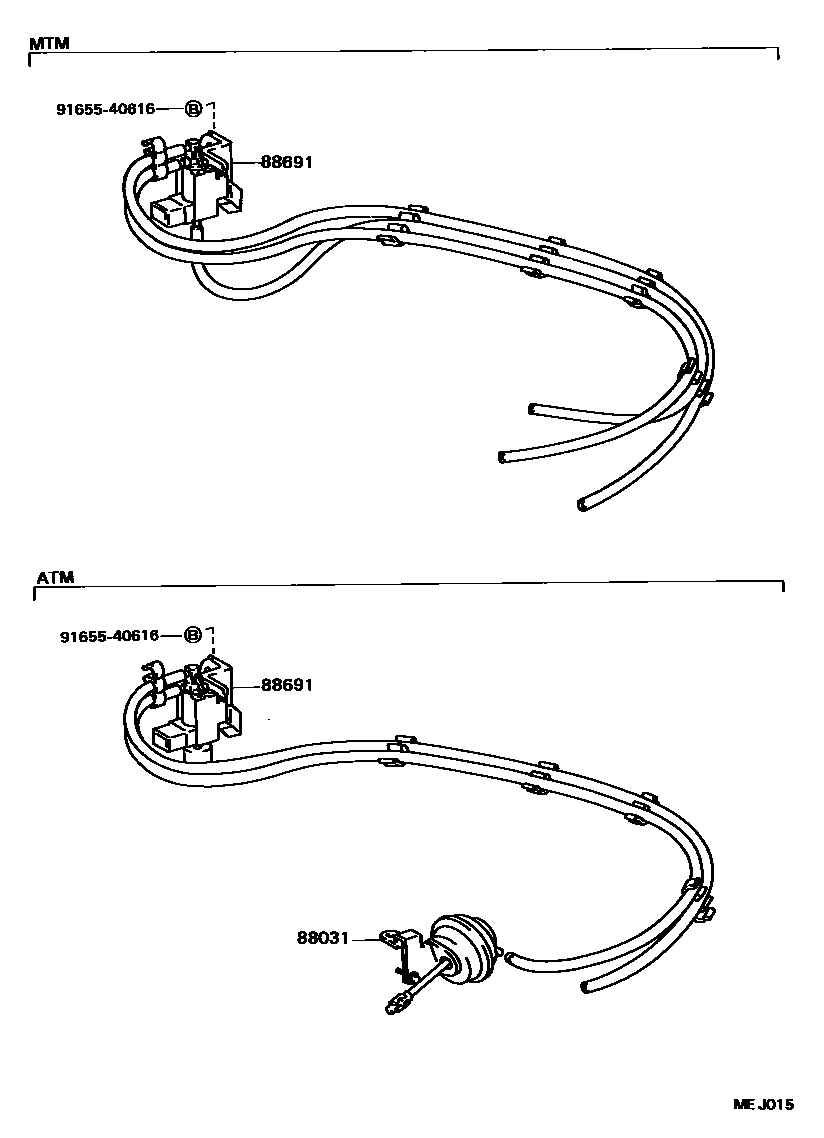

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1

88031ACTUATOR SET, IDLE-UP

main88031-12150iCV20..RHD198610-198808

main88031-30070iCV20..LHD198610-198705

sub88031-12150

main88031-32010iSV20..4FC198610-198808

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-32240iSV21,25..RHD198610-198808

main88690-32250iCV20..RHD198610-198808

main88690-32260iSV20..5F198610-198808

main88690-32270iSV20..4FC198610-198808

main88690-32280iSV21..LHD198610-198808

main88690-32290iCV20..LHD198610-198808

main88690-32310iSV21..SED..RHD..4FC198610-198808

HONG KONG SPEC

9165540616

main91655-40616

3 parts on this diagram · 3 diagrams in section
