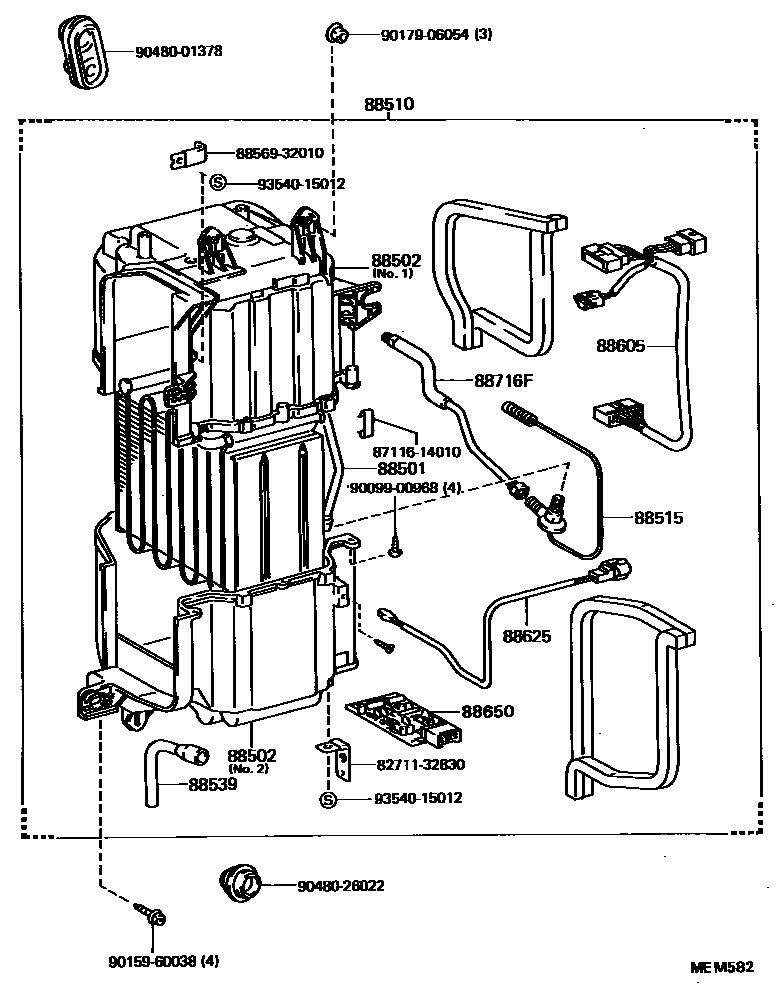

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1HONG KONG SPEC 0003 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-32040iCV20,SV21,25..RHD198610-198808

main88501-32050iCV20,SV2#,VZV21..LHD198610-198808

88502CASE SUB-ASSY, COOLING UNIT

main88502-32030iCV20,SV21..RHD198610-198808

NO.1

main88502-32040iCV20,SV21..RHD198610-198808

NO.2

main88502-32050iCV20,SV2#..LHD198610-198808

NO.1

sub88502-32100

main88502-32060iCV20,SV2#..LHD198610-198808

NO.2

88510UNIT ASSY, COOLER

main88510-32190iSV21..RHD198610-198808

main88510-32200iCV20..RHD198610-198808

main88510-32210iSV2#..LHD198610-198808

main88510-32220iCV20..LHD198610-198808

main88510-32230iSV21..SED..RHD..4FC198610-198808

HONG KONG SPEC

main88510-32320iVZV21198802-198808

88515VALVE, COOLER EXPANSION

main88515-16040iCV20,SV2#¥7,100198610-198808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20130iCV20,SV2#198610-198710

sub88539-22110

main88539-22110iCV20,SV2#,VZV21198710-198808

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-32280iSV2#198610-198808

main88605-32290iCV20198610-198808

main88605-32400iVZV21198802-198808

88625THERMISTOR, COOLER, NO.1

main88625-32040iCV20,SV2#198610-198808

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-32110iSV2#198610-198808

main88650-32130iCV20198610-198808

main88650-32160iVZV21198802-198808

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-32270iCV20,SV2#¥3,090198610-198808

8271132830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32830¥820

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8856932010CLAMP (FOR COOLER RELAY)

main88569-32010

9009900968

main90099-00968

9015960038

main90159-60038¥190

9017906054

main90179-06054¥100

9048001378

main90480-01378

9048026022

main90480-26022¥0

9354015012

main93540-15012¥70

18 parts on this diagram · 3 diagrams in section
